3 Digital Specifications
3.1 CC2650 Hardware
The DEV-RF002 supports several communication interfaces which are provided by the CC2650 device.
Included are one 4 wire SPI interface and one I2C interface. These interfaces are provided as pin connections
on the modules P1 and P2 headers. Ten additional GPIO are available on the CC2650. These IO can be
configured as generic peripheral input / output pins or programmed as communication interfaces including SPI,
I2C and UART.
3.1.1
CC2650 Pin Definitions
Pin Name
BLE_I2C_SCL
BLE_I2C_SDA
BLE_SPI_CSN (CC2650
configured as Master)
BLE_SPI_MISO (CC2650
configured as Master)
BLE_SPI_MOSI (CC2650
configured as Master)
BLE_SPI_SCLK (CC2650

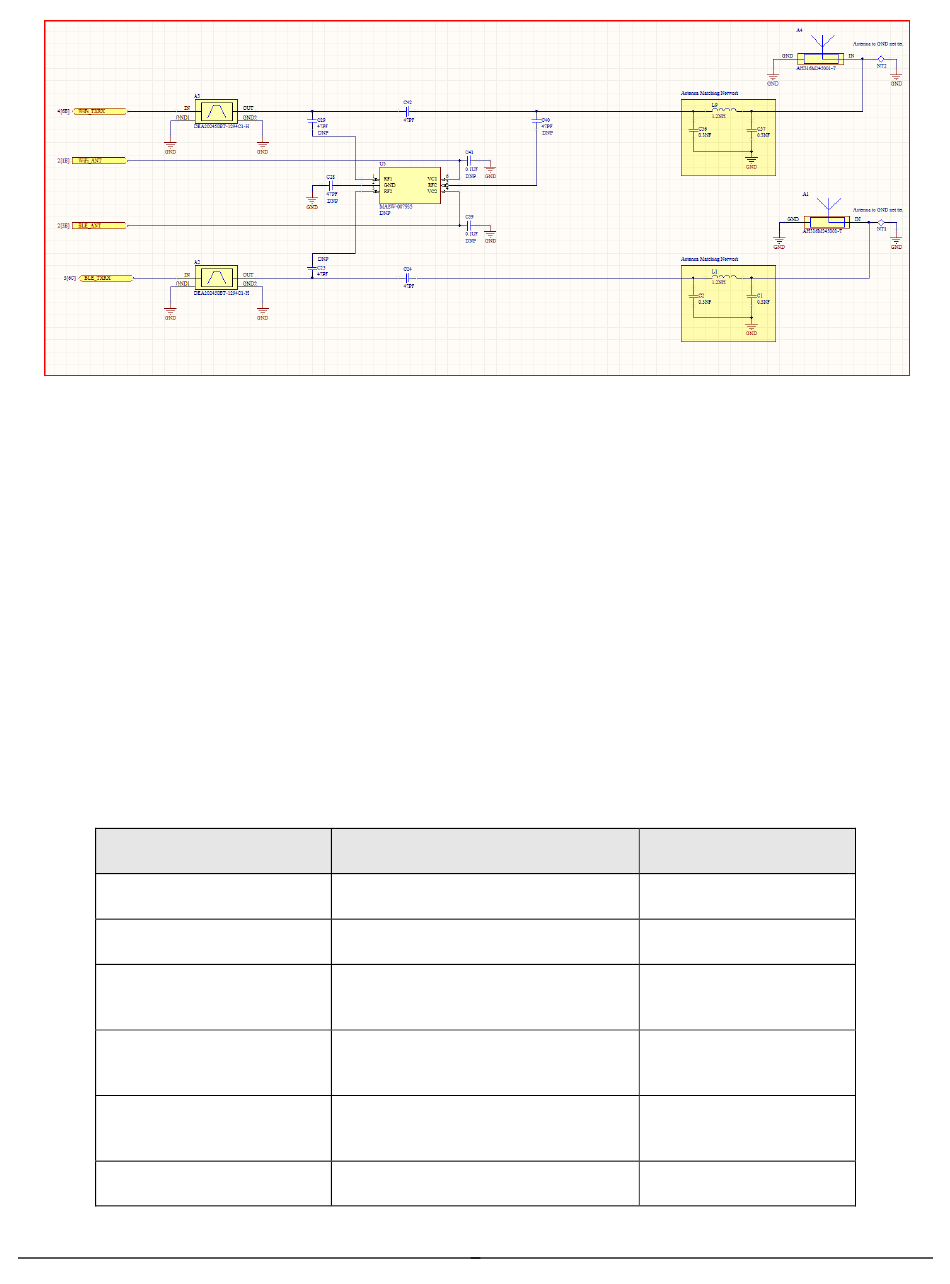

Figure 2-1 DEV-RF002 Antenna Selection Configuration
Table 3-1 CC2650 Pin Description
I2C clock pin
I2C data pin
Serial Peripheral Interface (SPI) chip
select active low
Serial Peripheral Interface (SPI)
Master In Slave Out
Serial Peripheral Interface (SPI)
Master Out Slave In
Serial Peripheral Interface (SPI)
Description
9
Header & Pin Number
P1 (24)
P1 (26)
P1 (28)
P1 (30)
P1 (29)
P1 (31)
