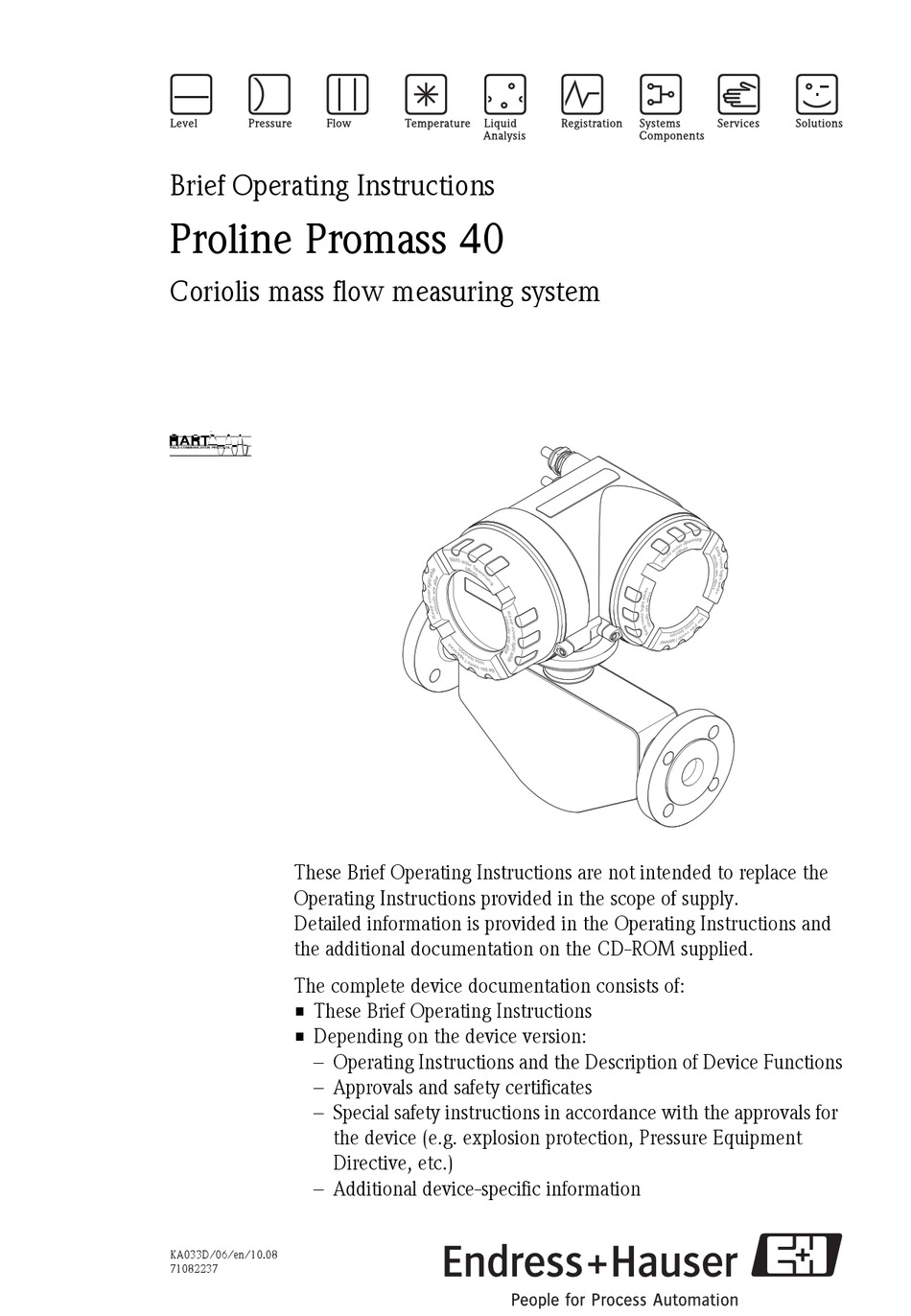

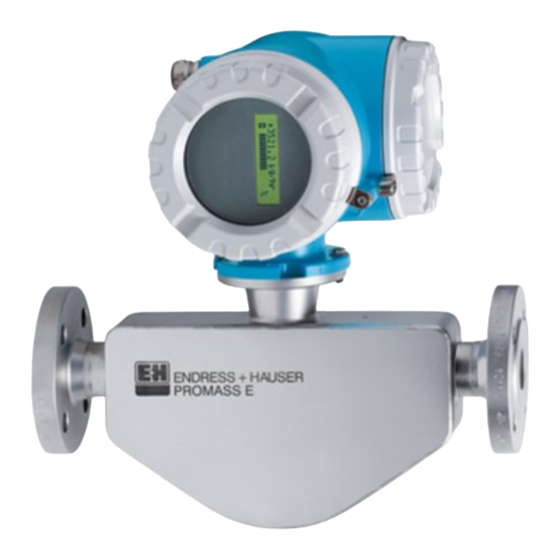

Brief Operating Instructions
Proline Promass 40
Coriolis mass flow measuring system
6
These Brief Operating Instructions are not intended to replace the
Operating Instructions provided in the scope of supply.
Detailed information is provided in the Operating Instructions and
the additional documentation on the CD-ROM supplied.
The complete device documentation consists of:
• These Brief Operating Instructions
• Depending on the device version:
– Operating Instructions and the Description of Device Functions
– Approvals and safety certificates
– Special safety instructions in accordance with the approvals for
the device (e.g. explosion protection, Pressure Equipment
Directive, etc.)
– Additional device-specific information
KA033D/06/en/10.08
71082237
Advertisement
Table of Contents
Related Manuals for Endress+Hauser Proline Promass 40
Summary of Contents for Endress+Hauser Proline Promass 40
- Page 1 Brief Operating Instructions Proline Promass 40 Coriolis mass flow measuring system These Brief Operating Instructions are not intended to replace the Operating Instructions provided in the scope of supply. Detailed information is provided in the Operating Instructions and the additional documentation on the CD-ROM supplied.
-
Page 2: Table Of Contents
Table of contents Proline Promass 40 Table of contents 1 Safety instructions ........3 1.1 Designated use . -
Page 3: Safety Instructions
Proline Promass 40 Safety instructions Safety instructions Designated use • The measuring device described in these Operating Instructions must only be used for measuring the mass flow or the volume flow of liquids and gases. Fluids with the most diverse properties can be measured, such as additives, oils, grease, acids, alkalis, lacquers, paints, dyes, suspensions and gases. -
Page 4: Safety Conventions
The installation regulations, connection data and safety instructions provided in the Ex documentation must be observed. • Endress+Hauser will be happy to assist in clarifying any questions on approvals, their application and implementation. Safety conventions Warning! "Warning"... -
Page 5: Installation
Proline Promass 40 Installation Installation Transporting to the measuring point • Transport the measuring device to the measuring point in the original packaging. • The covers or caps fitted on the process connections prevent mechanical damage to the sensors during transport and storage. For this reason, do not remove the covers or caps until immediately before installation. - Page 6 Installation Proline Promass 40 2.2.3 Orientation • The direction of the arrow on the nameplate of the measuring device must match the flow direction of the fluid. • The following table lists the possible orientations of the measuring devices: Vertical...
-
Page 7: Post-Installation
Proline Promass 40 Installation Post-installation 2.3.1 Turning the transmitter housing Turning the aluminum field housing Aluminum field housing for non-Ex area £ 180° £ 180° A0007540 Aluminum field housing for Zone 1 or Class I Div. 1 Release the setscrew. -
Page 8: Post-Installation Check
Installation Proline Promass 40 Post-installation check • Is the measuring device damaged (visual inspection)? • Does the measuring device correspond to the specifications at the measuring point? • Are the measuring point number and labeling correct (visual inspection)? • Correct internal diameter and correct surface roughness/quality? •... -
Page 9: Wiring
Proline Promass 40 Wiring Wiring Warning! Risk of electric shock! Components carry dangerous voltages. • Never mount or wire the measuring device while it is connected to the power supply. • Prior to connecting the power supply, connect the protective ground to the ground terminal on the housing. -
Page 10: Connection
Wiring Proline Promass 40 Connection Wire the unit using the terminal assignment diagram inside the cover. 3.1.1 Compact version Transmitter connection: Connection diagram inside the connection compartment cover Power supply cable Signal cable or fieldbus cable Optional A0007545 Degree of protection The devices meet all the requirements for IP 67. -
Page 11: Post-Connection Check
Proline Promass 40 Wiring Post-connection check • Are cables or the device damaged (visual inspection)? • Does the supply voltage match the specifications on the nameplate? • Are the power supply and signal cables correctly connected? • Do the cables used comply with the necessary specifications? •... -
Page 12: Commissioning
Commissioning Proline Promass 40 Commissioning Switching on the measuring device On completion of the installation (successful post-installation check), wiring (successful post-connection check) and after making the necessary hardware settings, where applicable, the permitted power supply (see nameplate) can be switched on for the measuring device. -
Page 13: Operation
Proline Promass 40 Commissioning Operation 4.2.1 Display elements Display lines/fields Main line for primary measured values Additional line for additional measured +48.25 xx/yy variables/status variables +3702.6 x Current measured values Engineering units/time units A0007557 4.2.2 Displaying error messages Type of error:... - Page 14 FieldCare operating program FieldCare is Endress+Hauser’s FDT-based plant asset management tool that facilitates the configuration and diagnosis of intelligent field devices. By using the status information, you also have a simple yet effective tool for monitoring devices. The Proline flow measuring devices can be accessed via a service interface or the FXA193 service interface.
-
Page 15: Troubleshooting
