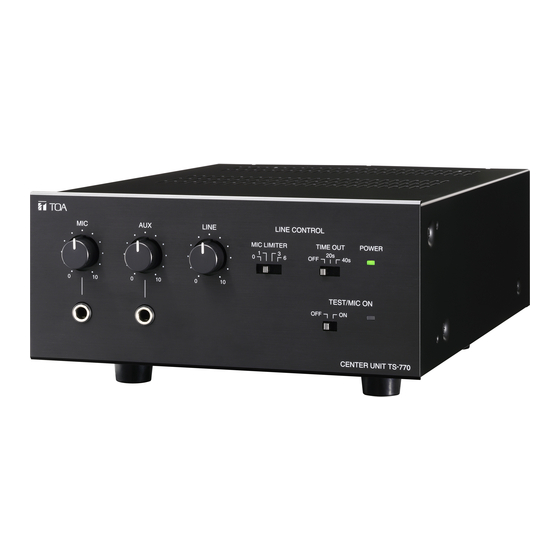

- Page 1 TS-770 SERIES CONFERENCE SYSTEM TOA Conference System with easy installation, use and expansion, plus remote participation capability...
- Page 2 The TS-770 does away with the need for a conference hall with professionally and permanently installed equipment for small-to-medium-sized meetings. Setting up the TS-770 is quick and easy. The basic requirements are simply to attach the Chairman and Delegate Units to the system’s Central Unit, and...
- Page 3 A new series has joined the lineup of TOA’s Conference System. The new TS-770 Series boasts high quality at affordable prices. Never make a compromise when it comes to offering users worry-free use— that’s a TOA philosophy.
- Page 4 *If the TS-775 Remote Delegate Interface Unit is used, up to 35 TS-775 Remote Delegate Interface Units can be connected per line also. • Expandable to maximum 210 units by connecting 2 additional Central Units. TS-771 Chairman Unit TS-770 Central Unit TS-770 Central Unit TS-771 Chairman Unit...
- Page 5 Without TS-775 The various systems using •IP telephone (up to 2 PCs can be connected to one Central Unit) •Telephone coupler TS-770 Central Unit •Mobile phone •NX-100/100S are available. With TS-775 The various systems using •Telephone •IP telephone...
- Page 6 * 0 dB = 1 V Model No. TS-775 Remote Delegate Interface Unit Power Req. 35 V DC, under 30 mA (supplied from Central Unit TS-770) Input –60dB*, 200 ohms, balanced, mini phone jack with VR control Output –60dB*, 22 ohms, balanced, mini phone jack with VR control...
