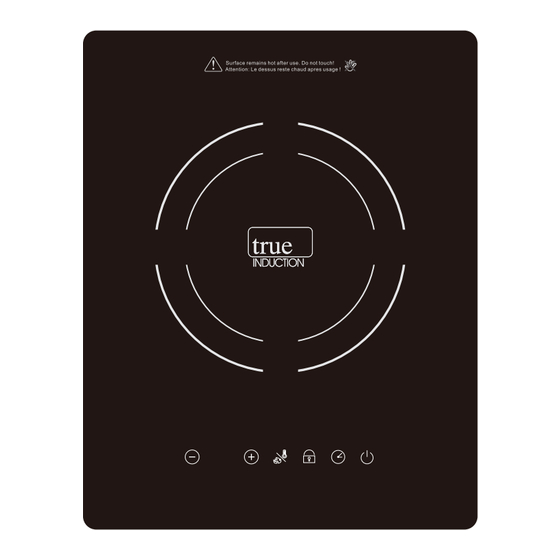

- Page 1 TRUE INDUCTION SINGLE BURNER INDUCTION COOKTOP MANUAL SINGLE BURNER INDUCTION COOKTOP MANUAL...
-
Page 2: Table Of Contents
Cleaning & Maintenance VII. Troubleshooting Error Codes Thank you for purchasing the True Induction Single Burner TI-1B cook- top. Please read the entire instruction manual prior to using your unit. If you have any questions regarding the True Induction cooktop please http://www.Truelnduction.com... -
Page 3: Cooktop Installation
I. Cooktop Installation Dimensions and Placement for Cut-out in Countertop Cut a rectangle hole in the countertop where the cook top is to be placed. The dimensions for the cut-out are 11 3/8'' x 13 3/4'' The cut-out must be placed at least 2 1/2" from any side of the countertop. ... - Page 4 I. Cooktop Installation Continued... First feed the power wire through the hole and to the location of the power receptacle un- derneath the cabinet. The 'h'' overhang on the induction cooker comes with pre-installed foam gasket. Peel off the ...
- Page 5 I. Cooktop Installation Continued... Clearance Needed for Air Circulation Below you will see a diagram of the air flow. Be sure not to block either the intake or exhaust For proper air circulation, allow at least 3" of clearance from the bottom of the induction ...
-
Page 6: Important Safety Information
II. Important Safety Information When using electrical appliances, basic safety precautions should always be followed. For the True Induction cooker, even with built-in safety features, it is essential to heed all precautions: When the unit is on, do not touch outside the control panel as the surface may contain residual ... -
Page 7: Product Specifications
II. Important Safety Information Continued... This appliance has a polarize plug (one blade is wider than the other). To reduce the risk of electric shock, the plug will fit on the outlet only one way. If the prongs do not fit fully, re- verse the plug. -
Page 8: How To Use
IV. How to Use • Plug the power plug into a standard outlet. • All indicators and display will light up once with a Beep sound. Then all indicators won’t light up before next operation. The device will remain in standby mode, awaiting user direction. •... -
Page 9: Using The Timer Function
TIMER button once to check the rest timer, it will show in 5 seconds. Built-In Safety Shut Off The True Induction cooktop is designed to automatically shut off after 120 minutes of use. This built-in auto shut off is a safety feature. -
Page 10: Compatible Cookware
To tell if your current cookware is compati- ble with the induction technology, grab a magnet and see if it holds. If your magnet stays then your cookware is ready to be used on the True Induction double burner induction portable cooktop! Optimal cookware has a flat bottom and a diameter of 4.72"... -
Page 11: Troubleshooting Error Codes
Error Code Cause and Potential Solution No cookware found or improper placement of cookware on cooking - - - zone. Ensure . cookware is centered on cooking zone and that it's induction compatible -see COMPTIBLE COOKWARE Internal circuit error. Contact manufacturer IGBT (insulated Gate Bipolor Transistor) overheating.
