Summary of Contents for True Induction S2F3

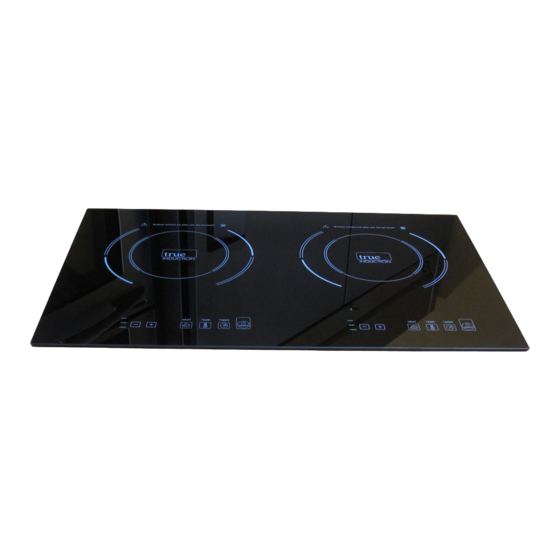

- Page 1 Model: S2F3 Counter Inset User Guide...
- Page 3 Dimensions and Placement for Cut-out in Countertop: • Cut a rectangle hole in the countertop where the cook top is to be placed. The dimensions for the cut-out are 14 \4'' x 23 1 1'16''. • The cut-out must be placed at least 2 'h"from any side of the countertop. •...
- Page 5 Installing Cook Top: • First feed the power wire through the hole and to the location of the power receptacle underneath the cabinet. 'h'' • overhang on the induction cooker comes with pre-installed foam gasket. Peel off the adhesive protector on the bottom of the gasket and set the induction cooker into the cut-out. Gently press down on the induction cook top to secure the adhesive gasket to the countertop.
- Page 6 Clearance Needed for Air Circulation: • Below you will see a diagram of the air flow. Be sure not to block either the intake or exhaust. Exhaust (Hot) (Bottom View) • For proper air circulation, allow at least 3" of clearance from the bottom of the induction cooker to any shelving or storage.
- Page 11 3.0.1 9-16...
