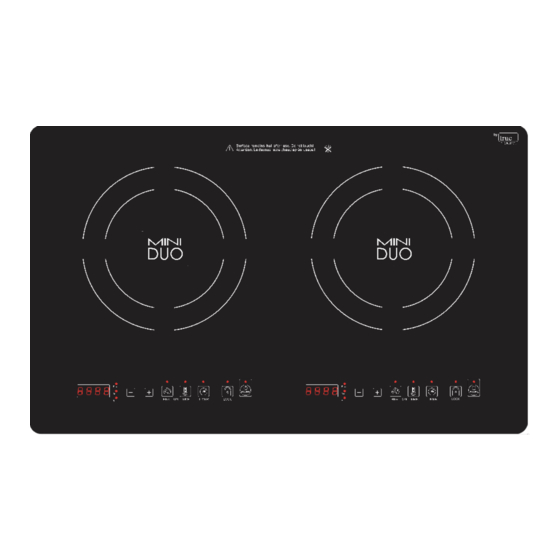

- Page 1 TRUE INDUCTION DOUBLE BURNER MINI DUO COOKTOP MANUAL DOUBLE BURNER MINI DUO INDUCTION COOKTOP MANUAL...
- Page 2 Troubleshooting Error Codes VIII. 11-12 Thank you for purchasing the True Induction Double Burner Mini Duo cooktop. Please read the entire instruction manual prior to using your unit. If you have any questions regarding the True Induction cooktop please visit http://www.Truelnduction.com...
-
Page 3: I. Control Panel Overview
5. Right Touch Control Panel 6. Power Option Display 7. Lower Power Key 8. Raise Power Key 9. Cooking Zone ON/OFF Key 10. Time Control Key 11. Child Safety Lock 12. Power Button DOUBLE BURNER MINI DUO INDUCTION COOKTOP MANUAL... -
Page 4: Ii. Cooktop Installation
II. Cooktop Installation Portable Installation For Portable Unit Install To use the Mini Duo as a portable unit, locate the 4 feet in the packaging and screw them into the bottom as illustrated below. Parts *Take out screw before installing... - Page 5 The cut-out must be placed at least 2 1/2" from any side of the countertop. To achieve flush mounting installation, use a router tool to round the corners of the hole cut into the countertop. 20’’ DOUBLE BURNER MINI DUO INDUCTION COOKTOP MANUAL...
- Page 6 The cook top should be sitting on the supports previously installed. For RV use, apply butyl tape instead of the supplied foam tape. Butyl tape will provide ade- quate adhesion and still allow for removal if the unit needs to be serviced. DOUBLE BURNER MINI DUO INDUCTION COOKTOP MANUAL...
-
Page 7: Ii. Cooktop Installation
For proper air circulation, allow at least 3" of clearance from the bottom of the induction cooker to any shelving or storage. The underside of the countertop should not be closed off from the cabinetry underneath for better air flow. DOUBLE BURNER MINI DUO INDUCTION COOKTOP MANUAL... -
Page 8: Iii. Important Safety Information
Do not place metallic objects such a knives, forks, spoons, lids, cans or aluminum foil on the cooktop. To prevent accidents and achieve optimal ventilation, allow for sufficient space around the cook- ing area. DOUBLE BURNER MINI DUO INDUCTION COOKTOP MANUAL... -
Page 9: Iii. Important Safety Information
150°F - 450°F (in 10 degree variables) Level Selection Selecting settings 1—10 Set timer up to 150 minutes Max Time Material Glass ceramic top Unit Measurement 20 1/2’’ W x 14 ’’L x 2 “ H DOUBLE BURNER MINI DUO INDUCTION COOKTOP MANUAL... -
Page 10: Power Invariance Technology
10 setting). If one side of the double burner is using the HEAT function and the other side uses the TEMP settings, the maximum HEAT setting is "5." DOUBLE BURNER MINI DUO INDUCTION COOKTOP MANUAL... -
Page 11: Power Invariance Technology
During the timer operation, you can change the timer duration at any time with the arrow keys. The device's built-in memory maintains the HEAT or TEMP setting previously entered. You can also change the HEAT or TEMP settings without affecting the current timer setting. DOUBLE BURNER MINI DUO INDUCTION COOKTOP MANUAL... -
Page 12: Built-In Safety Shut Off
V. How to Use Continued... Built-In Safety Shut Off The True Induction cooktop is designed to automatically shut off after 150 minutes of use. This built-in auto shut off is a safety feature. This function occurs for both the HEAT and TEMP settings. The panel displays EE code and ... -
Page 13: Vii. Cleaning & Maintenance
Check for spills or remove objects, and restart the unit. The fan keeps running for This is a normal occurrence as the electronics are cooling down. one minute after the unit has been switched off DOUBLE BURNER MINI DUO INDUCTION COOKTOP MANUAL P.11... - Page 14 NTC2 (To check the temperature on the unit. If the error message is still being of heating center) Break off displayed, call for service. NTC2 (To check the temperature of heating center) short circuit DOUBLE BURNER MINI DUO INDUCTION COOKTOP MANUAL P.12...
