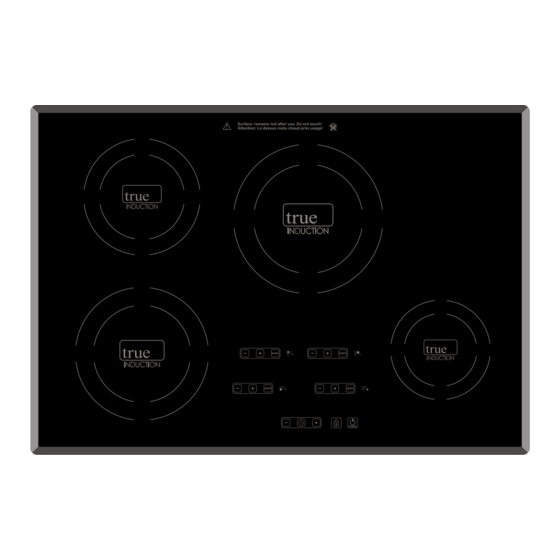

- Page 1 Model: TI-4B USE AND CARE GUIDE 30 Inch Induction Cooktop Beveled Edge...
-
Page 2: Table Of Contents
Troubleshooting Guide................15 16 Installation Instructions................17 21 Thank you for purchasing the True Induction 30Inch Induction Cooktop unit. Please read the entire instruction manual prior to using your unit. If you have any questions regarding the True Induction Cooktop, please visit TrueInduction.com or call: 1-877-862-7049... -
Page 3: Important Safety Instructions
Important Safety Instructions IMPORTANT Keep these instructions handy for future use. The appliance is manufactured in compliance with the relevant safety standard. WARNING Read all instructions carefully before installation and operation of the appliance. WARNING Failure to follow these warnings could result in a fire or explosion that causes property damage, personal injury or death. - Page 4 Important Safety Instructions WARNING IMPORTANT Cleaning Safety Environment of Unit To reduce the risk of fire, do not let any Do not use steam cleaners or high- objects(glass, paper, etc.) obstruct the pressure cleaners to clean the cooktop, inlet and outlet of your cooktop. as this may result in electric shock.
- Page 5 Important Safety Instructions Environment of Unit Do not put detergents or flammable To reduce risk of burns, ignition of materials in the equipment installed flammable materials, and spillage due under the cooktop . to unintentional contact with cookware, the cookware handles should be turned While cooking any overflowed fat or oil inward and not extend over adjacent on the cooktop may ignite.
-
Page 6: Important Safety Instructions 1
Important Safety Instructions Service and Repair Safety WARNING Do not repair or There are no user serviceable parts on replace any part of the appliance this appliance. Only an authorized unless specifically recommended in service representative should attempt the manual. All other services should to service your cooktop. -
Page 7: Cooktop Features
6. Left rear cooking element control area 7. Left front cooking element control area 8. Right front cooking element control area 30" (76.2cm) Model TI-4B 9.Right rear cooking element control area 10. Main Power On/Off 11. Main Power indicator light 12. - Page 8 Cooktop Features 14. Cooking element symbol 15. Power On/Off 16. Increase power 17. Decrease power 18. Power level and Residual heat display 19. Minute timer 20. Minute timer setting Up 21. Minute timer setting Down 22. Minute timer display window and cooking element symbol...
-
Page 9: Specifications
Cooktop Features Specifications TI-4B Model Product dimension wxdxh inch 30" x 21" x " " x " Cut-out dimension(wxd) inch " x 20" Voltage (volts) Frequency (Hz) Total power (Watts) 7400 Minimum circuit breaker Amperage Elements Front Left 2100W/2500W Rear Left... -
Page 10: Using The Cooktop
Using The Cooktop Controls Lock To Turn On The Cooktop To Lock While in the Standby mode, touch the Main Power key pad, a “beep” will Controls Lock is activated when the sound and the indicator light above the cooktop is off: Controls Lock prevents Power key pad will be lit up, indicating activation of any sensor key, except for that the induction cooktop functions are... - Page 11 Using The Cooktop Operating The Cooking Elements Power Boost To turn on one or more Cooking Touch “+” key to level 9, then press once to enter into Boost mode, the Elements, place a compatible pot or power display will show a “P”.The pan on the desired cooking element.
- Page 12 Cooking Element back on even if the item on a element in one section (left “H” is displayed. side), and the other item on a element in another section (right side). Left Zone Right Zone 30" (76.2cm) Model TI-4B...
-
Page 13: Using The Cooktop 8
Using The Cooktop Set Timer The automatic timer settings range If you want to set another burner to from 1 minute to 99 minutes. (NOTE: switch-off automatically, touch There is no “seconds” and “hours” Timer key to until the desired time display, only minutes.) The red dot symbol indicator blinks, repeat the next to the Time symbol indicator will... -
Page 14: Operational Cooktop Noises
Operational Cooktop Noises Cookware Noise The induction fields are generated by Cookware with irregular or warped electronics equipment, which are bottoms can vibrate audibly on the pretty much silent but they do produce ceramic glass surface, though again heat at high power level. A soft- typically only at high power settings. -
Page 15: Compatible Cookware
If your magnet stays on then your cookware is ready to be used on the True Induction cooktop! Visit Truelnduction. com for more information about our compatible cookware collection. -
Page 16: Cleaning Your Cooktop
Cleaning Your Cooktop Please follow these directions along with Important Safety steps for cleaning, advised at the beginning of the manual. Use a ceramic glass cleaner on the glass cooktop. To maintain and protect the surface of your glass cooktop, follow these steps: Before using the cooktop for the first time, clean it to protect the top and makes cleanup easier. -
Page 17: Troubleshooting Guide
Troubleshooting Guide If you encounter the following problems while using your cooktop, check the guide below to see if you can correct the problem yourself before calling for assistance or service: Problem Possible Cause Solutions Cooktop controls are locked Make sure Lock mode is turned off Power outage Cooktop does not work... - Page 18 Troubleshooting Guide If you encounter the following problems while using your cooktop, check the guide below to see if you can correct the problem yourself before calling for assistance or service: Problem Possible Cause Solutions Power boost does not work See Power Sharing The fans keep running for one minute after the cooking element...
-
Page 19: Installation Instructions
Electrical Connection IMPORTANT Observe all governing codes and local ordinances. Model TI-4B needs 40 Amp service. Maximum Connected Load ..7.4 kW at 240 VAC, 6.4 kW at 208 VAC Model TI-4B... - Page 20 Installation Instructions The Induction Cooktops must connect to a separate, grounded wire, single phase, AC Only electrical supply with their own circuit breaker. These appliances must be installed in accordance with National Electrical Codes, as well as all state, municipal and local codes. This appliance must be supplied with the proper voltage and frequency and amperage, which is protected by a properly sized circuit breaker or time delay fuse.
- Page 21 Installation Instructions IMPORTANT: Use the 4-wire cable from Home Power Supply where local codes do not allow grounding through neutral. Cable from Power Supply White Wire Black Wire Red Wire Junction Box Green Wire (Grounding) Cable from Appliance 4-Wire Cable from Home Power Supply Electrical ground is required on this appliance The cooktop conduit wiring is approved for copper wire WARNING...
