ASSEMBLY INSTRUCTIONS

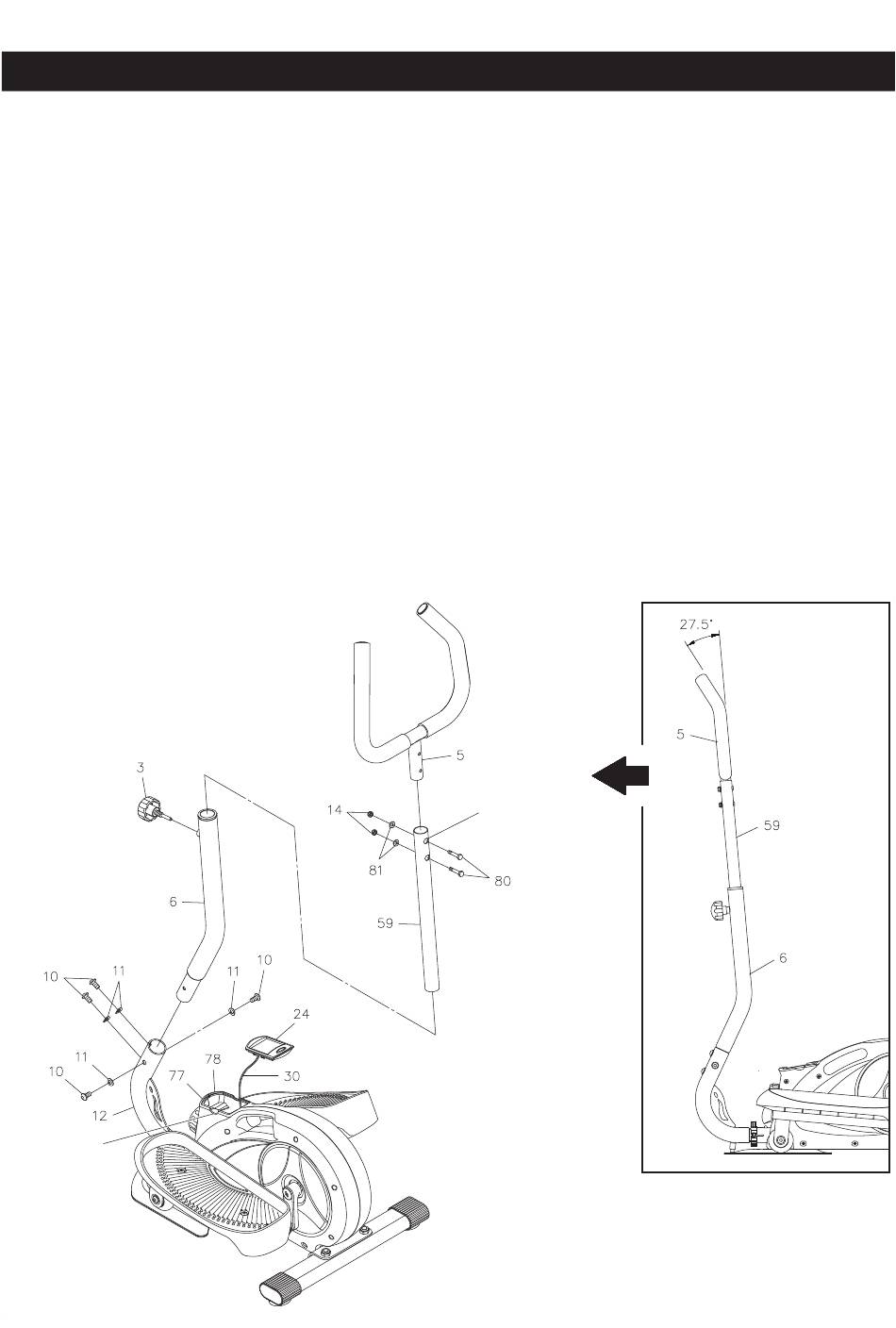

STEP 5:
Insert the UPRIGHT(6) into the LOW UPRIGHT(12) and secure with BUTTON HEAD BOLTS
(M8x1.25x16mm)(10) and ARC WASHERS(M8)(11).
STEP 6:
Insert the HANDLEBAR POST(59) into the UPRIGHT(6), and lock it in one of the adjustment
holes with ADJUSTMENT KNOB(3).
NOTE: There are three adjustment holes on the HANDLEBAR POST(59) for adjusting the height of the
HANDLEBAR(5).
STEP 7:
Refer to the detail view A. Note the correct position of the HANDLEBAR(5), the
HANDLEBAR(5) should be assembled with a 27.5 degree angle forward from the HANDLEBAR
POST(59). Attach the HANDLEBAR(5) to the HANDLEBAR POST(59) with HEX BOLTS(M6x1x33mm)
(80), ARC WASHERS (M6)(81), and NYLOCK NUTS(M6x1)(14). The HEX BOLTS(M6x1x33mm)(80) fit
inside the hex-shaped holes in the HANDLEBAR POST(59).
STEP 8:
Find the two cavities on either side of the meter case, grasp the METER(24) and pull it out
from the COVERS(77, 78) being careful not to disconnect or damage the SENSOR WIRE(30). Install
two AAA batteries into the METER(24), the batteries are not included. See page 11 for detailed battery
installation instructions. Push the METER(24) back into position.
A.
hex-shaped
hole
Cavity
