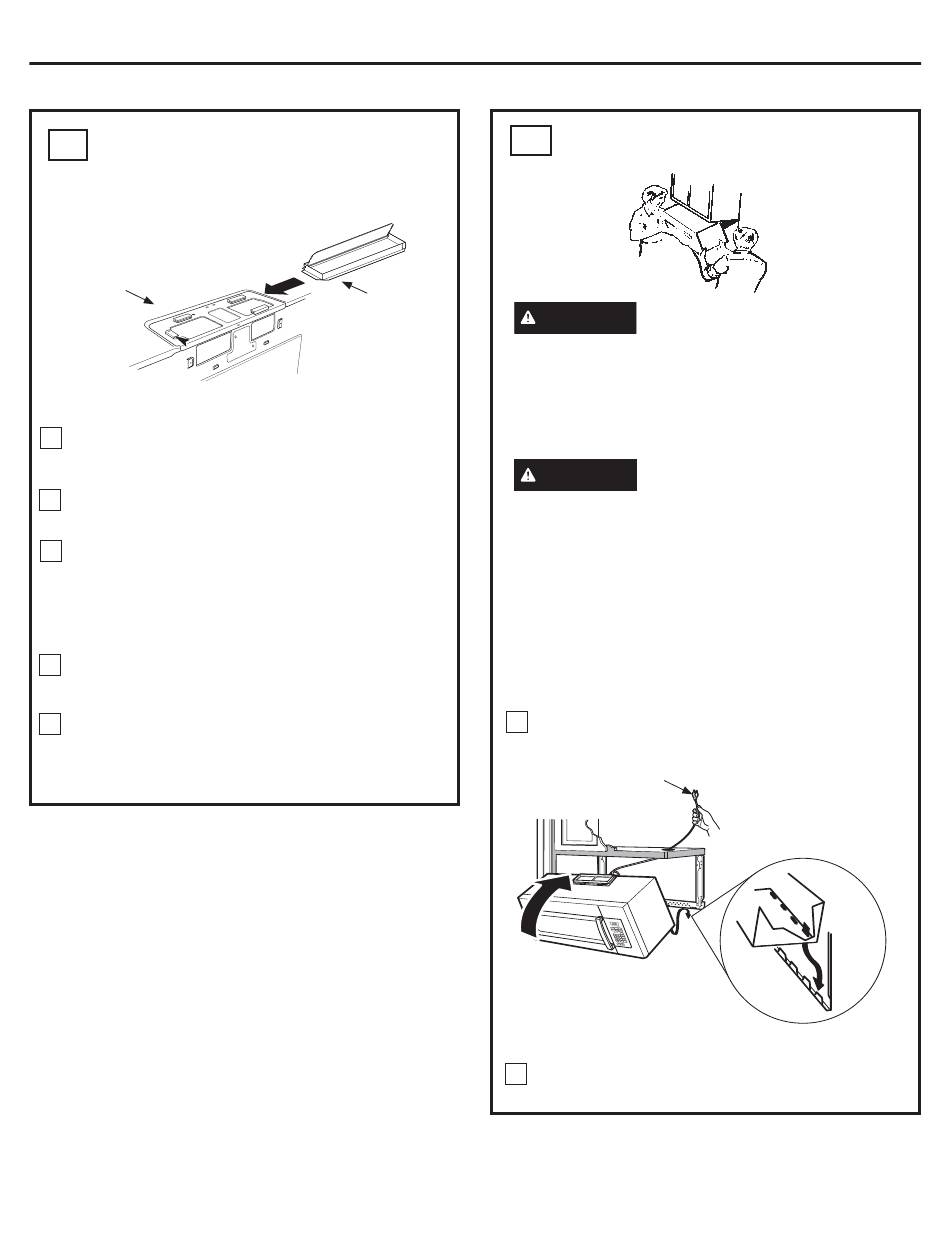

Assemble And Install Adaptor; Mount The Microwave Oven - GE RVM5160 Installation Instructions Manual

ASSEMBLE AND INSTALL
B4
ADAPTOR
Blower
Plate
1
Place the microwave oven in its upright position,
with the top of the unit facing up and the front of the
unit facing toward you.
Remove the screw on the back side of the
2
blower plate and raise the blower plate off of the
microwave.
3
Slide the damper from left to right into the tabs on
the blower plate. The yellow tape on the damper
should be facing away from you.
Remove the yellow tape from the damper.
Make sure that the damper pivots easily before
mounting microwave oven.
4
You will need to make adjustments to assure
proper alignment with your house exhaust duct
after the microwave oven is installed.
Position the blower plate with damper back on the
5
microwave and secure it with the screws that were
removed.
Installation Instructions
Damper

MOUNT THE MICROWAVE OVEN

B5
CAUTION
To avoid the risk of personal
injury (back injury or other injuries due to
excessive weight of the microwave) or property
damage, you will need two people to install this
microwave.
IMPORTANT: Do not grip or use handle during
installation.
WARNING
Risk of Electric Shock. Can
cause injury or death: If installing unit with
metal countertops, cover the edge of the power
supply cord hole with the power supply cord
bushing.
IMPORTANT: If filler blocks are not used, case
damage may occur from overtightening screws.
NOTE: When mounting the microwave, thread
power cord through hole in bottom of top cabinet.
Keep it tight throughout Steps 1–3. Do not pinch
cord or lift microwave oven by pulling cord.
Lift microwave, tilt it forward, and hook slots
1
at back bottom edge onto four lower tabs of
mounting plate.
Power Cord
Rotate front of microwave oven up against
cabinet bottom.
2
19
