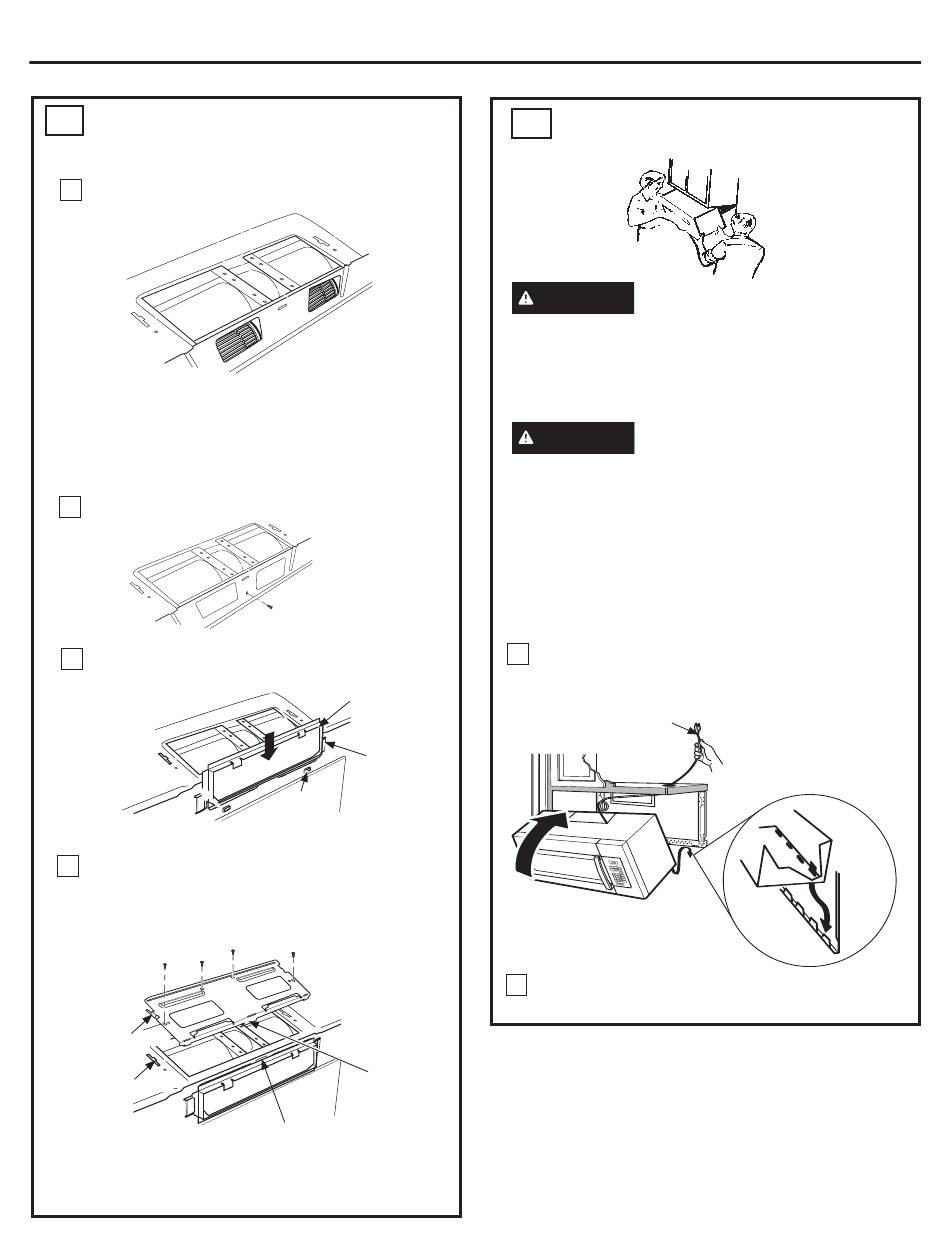

C4 ADAPTING BLOWER FOR
OUTSIDE BACK EXHAUST (cont.
Gently place the fan back into the cavity with the
6
exhaust portion of the fan at the top and facing
the back of the unit.
Note: Make sure the wires remain routed through
the openings in the motor frame. To avoid
damage to the fan motor wiring, insert motor
carefully such that the fan motor wiring does not
contact the microwave power cord bracket.
7 Replace screw on the back of the unit.
8 Slide the vent damper on back of the unit with
the hinge at the top.
Slide
exhaust
adaptor into
guides on
microwave
oven rear.
Replace the vent cover on the unit and secure it
9
to the unit by replacing the two screws that were
removed, with one in the middle hole and one on
either side.
Side Tab
Side Slot
Installation Instructions
)
Screw
Damper
(hinge side up)
Exhaust
Adaptor
Locking Back of
Tabs Microwave
Oven
Rear
Tab
Rear Slot
C5

MOUNT THE MICROWAVE OVEN

CAUTION
To avoid the risk of personal injury
(back injury or other injuries due to excessive
weight of the microwave) or property damage, you
will need two people to install this microwave.
IMPORTANT: Do not grip or use handle during
installation.
WARNING
Risk of Electric Shock. Can cause
injury or death: If installing unit with metal
countertops, cover the edge of the power supply
cord hole with the power supply cord bushing.
IMPORTANT: If filler blocks are not used, case
damage may occur from overtightening screws.
NOTE: When mounting the microwave, thread
power cord through hole in bottom of top cabinet.
Keep it tight throughout Steps 1–3. Do not pinch
cord or lift microwave oven by pulling cord.
1 Lift microwave, tilt it forward, and hook slots
at back bottom edge onto four lower tabs of
mounting plate.
Power Cord
2
Rotate front of microwave oven up against
cabinet bottom.
