Preparation Of Top Cabinet; Adjust Blower Motor - GE RVM5160 Installation Instructions Manual

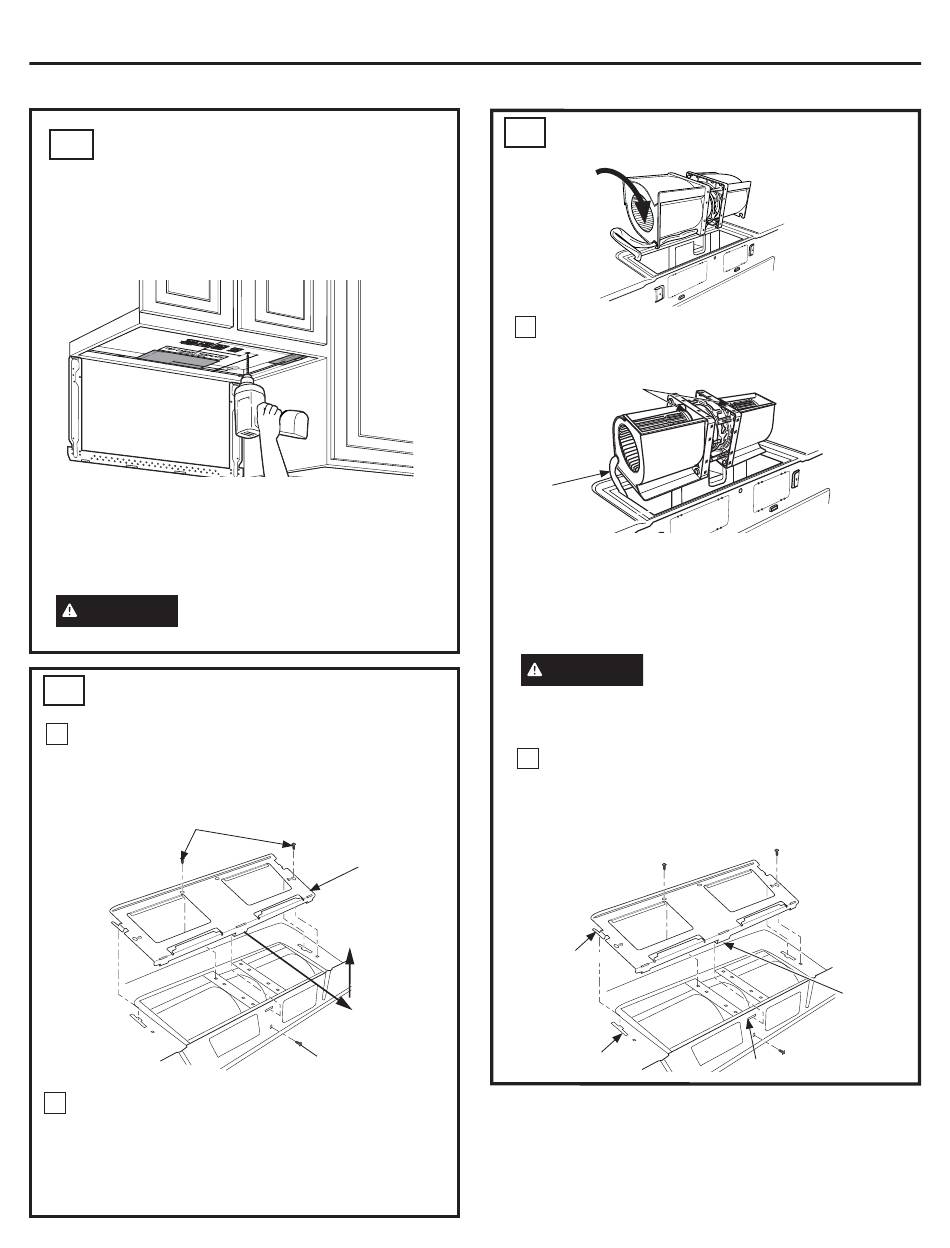

B2
USE TOP CABINET TEMPLATE
FOR PREPARATION OF TOP
CABINET
You need to drill holes for the top support screws,
a hole large enough for the power cord to fit through,
and a cutout large enough for the exhaust adaptor.
• Read the instructions on the TOP CABINET
TEMPLATE.
• Tape it underneath the top cabinet.
• Drill the holes, following the instructions on the
TOP CABINET TEMPLATE.
CAUTION
Wear safety goggles when
drilling holes in the cabinet bottom.
B3

ADJUST BLOWER MOTOR

Remove the screws holding the blower unit and
1
the screws securing the blower plate. Remove
the blower plate from the outer case by sliding it
toward the back of the microwave and pulling up.
Blower Motor Screws
2 Carefully pull out the blower unit. The wires will
extend far enough to allow you to adjust the
blower unit.
18
Installation Instructions
Blower
Plate
Blower
Motor
Screw
B3
ADJUST BLOWER MOTOR (cont.
Rotate 90°
Roll the blower so that fan blade openings are
3
facing the top of the oven. Place the blower
back into the opening.
Fan Blades
Wires
Note: Make sure the wires remain routed through
the openings in the motor frame. To avoid damage
to the fan motor wiring, insert motor carefully such
that the fan motor wiring does not contact the
microwave power cord bracket.
WARNING
Risk of Electric Shock.
Can cause injury or death. Do not pull or
stretch the blower unit wiring. Make sure the
wires are not pinched.
Slide the blower plate back onto the microwave
4
by placing the side tabs into the slots and
pushing gently until the back tab is seated into
the rear slot. Replace 3 screws.
Side Tab
Side Slot
)
Back of
Microwave
Back of
Microwave
Rear Tab
Rear Slot
