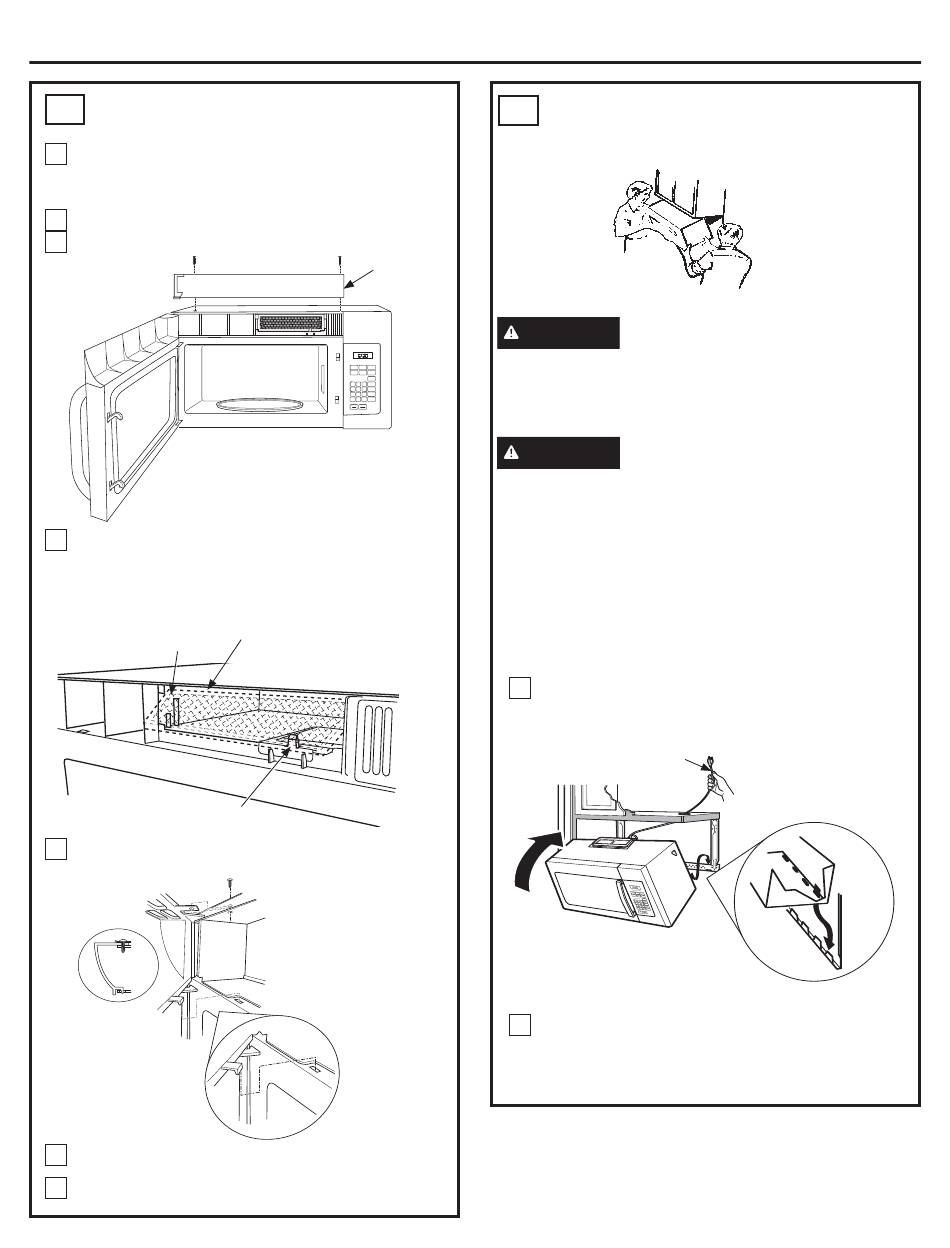

A4 INSTALLING THE
CHARCOAL FILTER
1 Remove 2 screws on top of microwave oven, just
above the grille panel, using a Phillips screwdriver.
If two screws are not accessible, see section A5.
2 Open the door.
Remove the grille.
3
Insert the top of the filter up and into the grooves on
4
both sides of the inside of the top opening. Once you
have cleared the bottom tab, push the bottom of the
filter in until it rests in place behind the tab.
Grooves in
Microwave for
Filter on Each
Side
Bottom Tab
Replace the grille by inserting the top grill flange
5
into the slots in the case as shown.
Grille
Grille
6 Replace the 2 top screws.
Close the door.
7
Installation Instructions
Grille
Convenience Cooking
Popcorn Beverage Potato
Reheat Defrost Cook
Time
Weight/Time
Timer
Express Cook
On/Off
Add
1 2 3
30 Sec.
4 5 6 Turntable
Surface
7 8 9
Light
Power Set
0 Vent
Level Clock
Cancel Start
Off Pause
Filter (dashed to show
details of groves)
Ensure bottom
tabs are seated
as shown.
A5 MOUNT THE MICROWAVE OVEN
To avoid the risk of personal injury
CAUTION
(back injury or other injuries due
to excessive weight of the microwave) or property
damage, you will need two people to uninstall this
microwave.
IMPORTANT: Do not grip or use handle during removal.
Risk of Electric Shock. Can cause
WARNING
injury or death: If removing unit
with metal countertops, cover the edge of the power
supply cord hole with the power supply cord (nylon
grommet).
IMPORTANT: If filler blocks are not used, case damage
may occur from overtightening screws.
NOTE: When mounting the microwave, thread
power cord through hole in bottom of top cabinet.
Keep it tight throughout Steps 1–3. Do not pinch
cord or lift microwave oven by pulling cord.
1 Lift microwave, tilt it forward, and hook slots
at back bottom edge onto four lower tabs of
mounting plate.
Power Cord
Rotate front of microwave oven up against
2
cabinet bottom.
