INSTALLATION TYPES

2

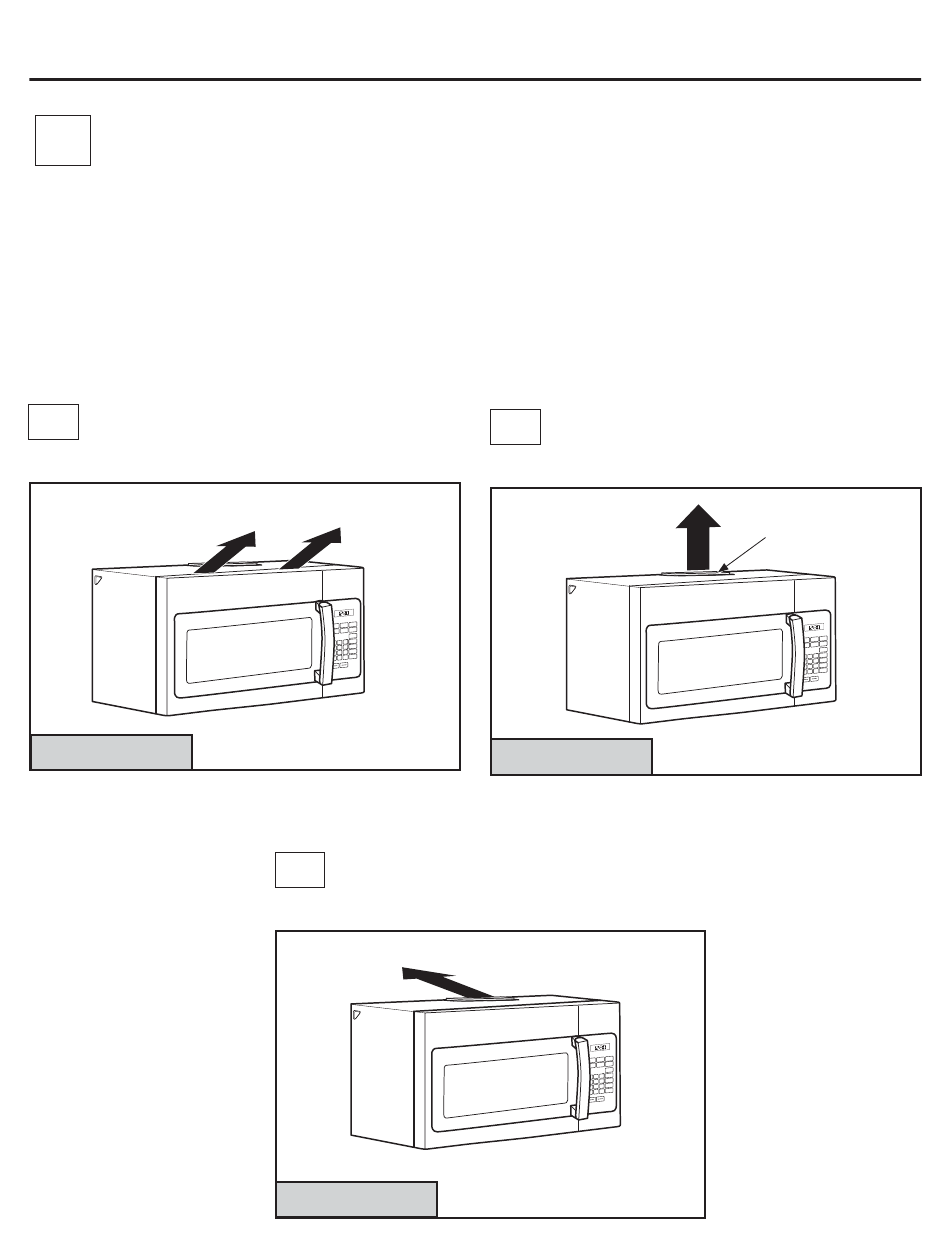

This microwave oven is designed for adaptation to the
following 3 types of ventilation:
A. Recirculating (Non-Vented Ductless)
B. Outside Top Exhaust (Vertical Duct)
C. Outside Back Exhaust (Horizontal Duct)
RECIRCULATING
A
(NON-VENTED DUCTLESS)
See page 13
A Charcoal Filter Accessory Kit is required for the non-
vented exhaust. (See your Owner's Manual for the kit
number.)
12
Installation Instructions
Cookin g
Conven ience
Potato
Beverag e
Popcorn
Cook
Defrost Time
Reheat e
Weight/Tim
Timer
On/Off
Expres s Cook
Add
3
1 2 30 Sec.
6 Turntab le
5
4
Surface
8 9 Light
7
Set Vent
Power 0
Clock
Level
Start
Cancel
Pause
Off
OUTSIDE BACK EXHAUST
C
(HORIZONTAL DUCT)
See page 21
(Choose A, B or C)
NOTE: Select the type of ventilation required for your
installation and proceed to that section.
OUTSIDE TOP EXHAUST
B
(VERTICAL DUCT)
See page 17
