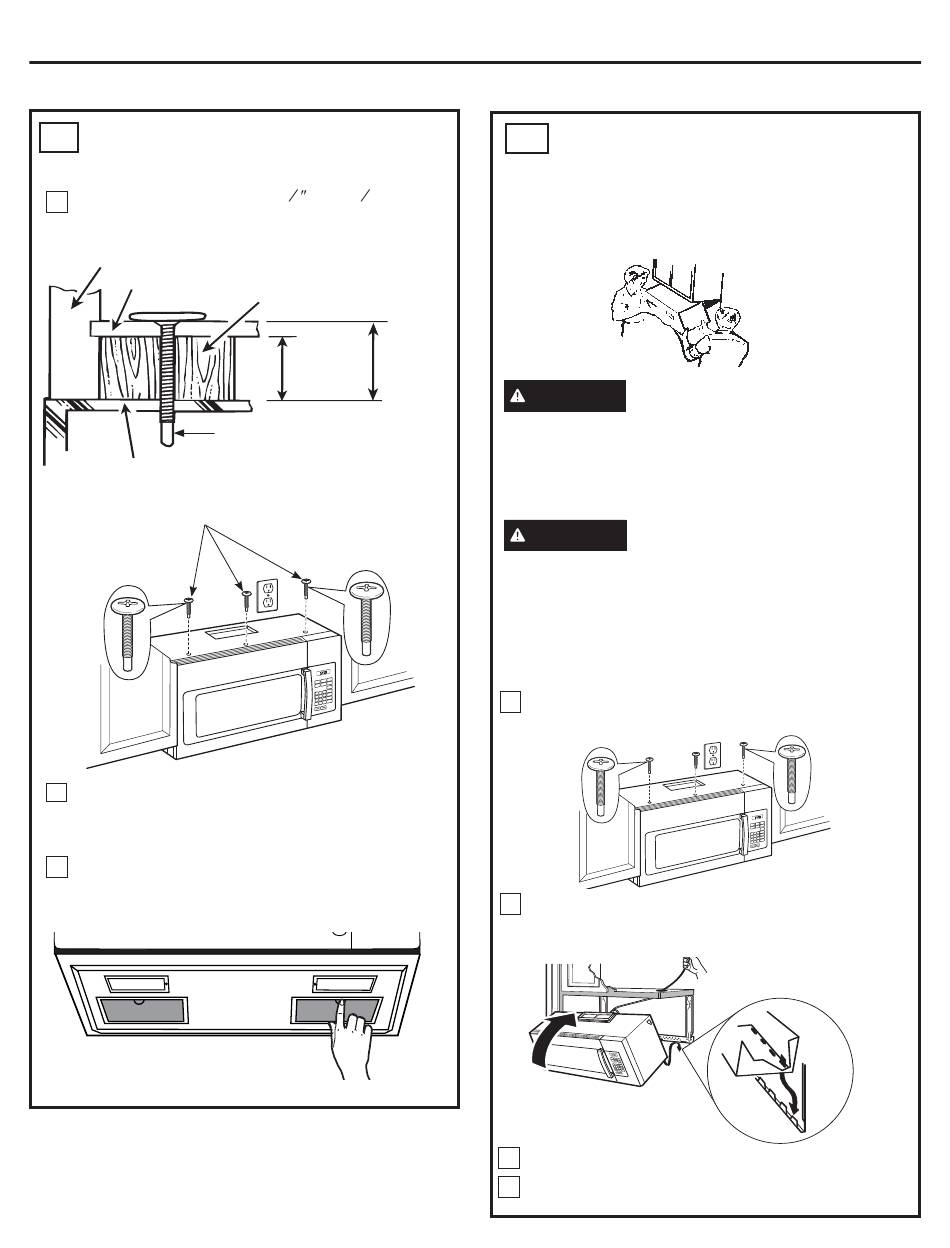

MOUNT THE MICROWAVE OVEN

A5
(cont.)
Insert 3 self-aligning screws (
3
through outer top cabinet holes. Turn two full turns
on each screw.
Cabinet Front
Cabinet Bottom Shelf
Microwave Oven Top
Self-Aligning Screws
4 Tighten the three screws to the top of the
microwave oven. (While tightening screws, hold
the microwave oven in place against the wall
and the top cabinet.)
5
Install grease filters. See the Owner's Manual
packed with the microwave oven.
16
Installation Instructions
-28 x 2 ")
1 4 1 4
Filler Block
This
distance can
Equivalent
NOT exceed
to Depth
2" to ensure
of Cabinet
proper
Recess
installation
Self-Aligning Screw
ce Cook ing
Conv enien
Potat o
Bever age
Popco rn
Cook
Defro st Time
t Time
Rehea Weight/
Timer
On/Off
Expre ss Cook
Add
3 30 Sec.
1 2
Turnt able
6
5
4 Surfa ce
8 9 Light
7
Set Vent
0 Clock
Power
Level
Start
Canc el
Pause
Off
A6
INSTALLING/REPLACING THE
CHARCOAL FILTER WITHOUT
ACCESS TO TOP SCREWS AND
THE UNIT HAS ALREADY BEEN
MOUNTED
CAUTION
To avoid the risk of personal injury
(back injury or other injuries due to excessive
weight of the microwave) or property damage, you
will need two people to uninstall this microwave.
IMPORTANT: Do not grip or use handle during
removal.
WARNING
Risk of Electric Shock. Can cause
injury or death: If removing unit with metal
countertops, cover the edge of the power supply
cord hole with the power supply cord (nylon
grommet).
IMPORTANT: If filler blocks are not used, case
damage may occur from overtightening screws.
1 Loosen the 3 screws on the top of the microwave
oven (inside the cabinet).
2 Lift microwave, tilt it forward and unhook slots at
back bottom edge from the four lower tabs of the
mounting plate.
3 Replace the filter using instructions from section A4.
4
Reinstall unit following instructions from A5.
Cookin g
Conve nience
Potato
Bevera ge
Popcor n
t Cook Time
Defros ime
Reheat Weight/T
Timer
On/Off
s Cook
Expres Add
2 3 30 Sec.
1
6 Turnta ble
5
4 Surface
9 Light
7 8
Vent
Set
Power 0 Clock
Level
Start
Cance l Pause
Off
