Summary of Contents for Ryobi R36PPS114

  • Page 1 RPP3600 R36PPS114...

  • Page 2: Intended Use

    ■ Do not abuse the cord. Never use the cord for IMPORTANT! carrying, pulling, or unplugging the power tool. It is essential that you read the instructions in this manual Keep cord away from heat, oil, sharp edges or before assembling, operating, and maintaining the moving parts.
  • Page 3 preventive safety measures reduce the risk of starting ■ Never service damaged battery packs. Service the power tool accidentally. of battery packs should only be performed by the manufacturer or authorized service providers. ■ Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power CORDLESS POLE PRUNER SAFETY WARNINGS tool or these instructions to operate the power tool.
  • Page 4 ■ Injuries may be caused, or aggravated, by prolonged use ■ Do not try to cut the branch too close to the tree trunk. of the product. When using the product for prolonged Leave about 15 cm from the trunk to the cut. periods, ensure to take regular breaks.

  • Page 5: Maintenance

    ● Sharpening the chain safely is a skilled task. The ■ You may only make adjustments or repairs described manufacturer strongly recommends that a worn in this manual. For other repairs, contact an authorised or dull chain is replaced with a new one. The part service centre.

  • Page 6: Symbols In This Manual

    Beware of thrown or flying objects. Keep all bystanders, especially children and pets, at least 15 m away from the operating area. Guaranteed sound power level Pull: Quick-release tab Regulatory Compliance Mark (RCM). The product meets applicable regulatory requirements. Waste electrical products should not be disposed of with household waste.

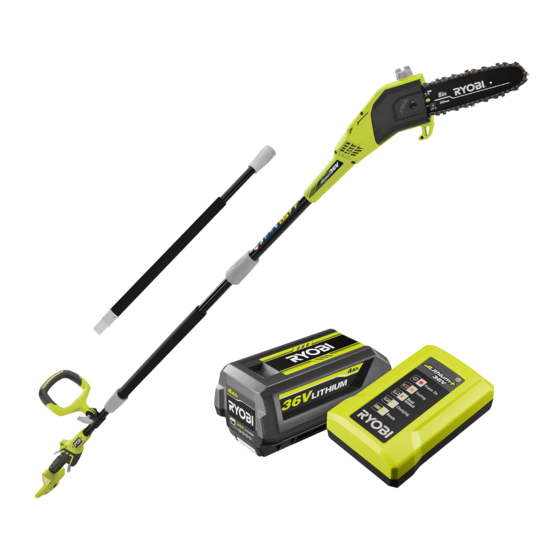

  • Page 7 Chain tensioning screw Shaft coupling Front handle Harness hanger Guide bar cover Trigger release Rear handle Battery port On/off trigger Extension pole Hex key Boom assembly Operator’s manual Harness R36PPS114 Battery pack Charger Bar and chain lubricant Know your product...
  • Page 8 Always wear safety goggles or safety Install pruner attachment Install the boom assembly to the glasses with side shields when the boom assembly using the shaft extension pole using the shaft coupling. operating the product. Wear non-slip, coupling. Tighten the shaft coupling to Tighten the shaft coupling to secure the heavy-duty protective gloves.
  • Page 9 Install the extension pole to the lower Attach the harness. Loosen and remove the chain lubricant shaft using the shaft coupling. Tighten cap. the shaft coupling to secure the attachment. Tighten the adjustment knob to secure Remove the guide bar cover. Insert the battery pack until the latch the front handle in place.
  • Page 10 Operating the p.11 product Replacing the p.12 chain Cleaning the Storing the p.14 p.15 product product...

  • Page 11: Operating The Product

    OPERATING THE PRODUCT WARNING: Always use two hands to operate the product. Hold the product with the right ≤60˚ hand on the rear handle and the left hand on the front handle. ≥15 m WARNING: Risk of electrocution! Do not (50') operate within 10 m of overhead electrical power lines.

  • Page 12: Replacing The Chain

    REPLACING THE CHAIN 1. Remove the battery pack. 2. Using the hex key, loosen the bar bolt of the sprocket cover. 3. Remove the sprocket cover and guide bar. 4. Dispose of the old chain and prepare the new one. 5.
  • Page 13 6. Reinstall the sprocket cover and install the bar bolt. NOTE: Make sure that the chain follows the direction as shown. 7. Using the hex key, partially tighten the bar bolt. The bar must be free to move for tension adjustment. 8.

  • Page 14: Cleaning The Product

    CLEANING THE PRODUCT 1. Remove the battery pack. 2. Remove all foreign materials from the product with a soft, dry brush. WARNING: Avoid using solvents when cleaning plastic parts. Most plastics are susceptible to damage from various types of commercial solvents and may be damaged by their use.

  • Page 15: Storing The Product

    STORING THE PRODUCT 1. Remove the battery pack. 2. Cover the guide bar with the guide bar cover. 3. Loosen the shaft coupling to release the boom assembly from the pruner attachment. 4. Loosen the shaft coupling to release the boom assembly from the extension pole.
  • Page 16 6. Store the product in a cool, dry, and well-ventilated place that is inaccessible to children and away from sources of ignition. Do not store the product outdoors.

  • Page 17: Product Specifications

    Battery pack R36BTY4 Charger BCL3617S BPL3612D, BPL3615, BPL3626, BPL3640,BPL3626D, BPL3640D, Compatible battery BPL3650D, BPL3626D2, BPL3640D2, packs BPL3650D2, BPL3660D, BPL3690D, R36BTY2, R36BTY4, R36BTY5, R36BTY6, R36BTY8, R36BTY12 NOTE: Visit your local special orders desk or contact RYOBI customer service for replacement parts.
  • Page 20 Techtronic Industries Australia Pty Ltd 31 Gilby Road, Mount Waverley, VIC 3149 Melbourne, Australia Techtronic Industries N.Z. Limited Unit C, 70 Business Parade South, Highbrook, Auckland 2013, New Zealand RYOBI is a trade mark of Ryobi Limited, and is used under license. 961480320-01...
