Summary of Contents for Ryobi R36XPHD16
- Page 1 R36PHD00 R36XPHD16...
-
Page 2: Intended Use
■ Do not abuse the cord. Never use the cord for IMPORTANT! carrying, pulling or unplugging the power tool. Keep It is essential that you read the instructions in this manual cord away from heat, oil, sharp edges, or moving before assembling, operating, and maintaining the parts. - Page 3 ■ Store idle power tools out of the reach of children ADDITIONAL GENERAL SAFETY WARNINGS and do not allow persons unfamiliar with the power ■ Some regions have regulations that restrict the use of tool or these instructions to operate the power tool. the product.
-
Page 4: Led Display
■ Hold the product by the insulated gripping surfaces, CORDLESS DIGGING TOOL SAFETY WARNINGS when performing an operation where the cutting accessory may contact hidden wiring or its own cord. WARNING! Maintain a firm grip on the handles with both Cutting accessory contacting a "live"... -
Page 5: Transportation And Storage
Ensure to maintain has a firm grip and solid stance when SYMBOLS ON THE PRODUCT using the product. Safety alert TRANSPORTATION AND STORAGE ■ Turn off the product, remove the battery pack, and allow Read and understand all the instructions the product to cool down before storing or transporting. -
Page 6: Symbols In This Manual

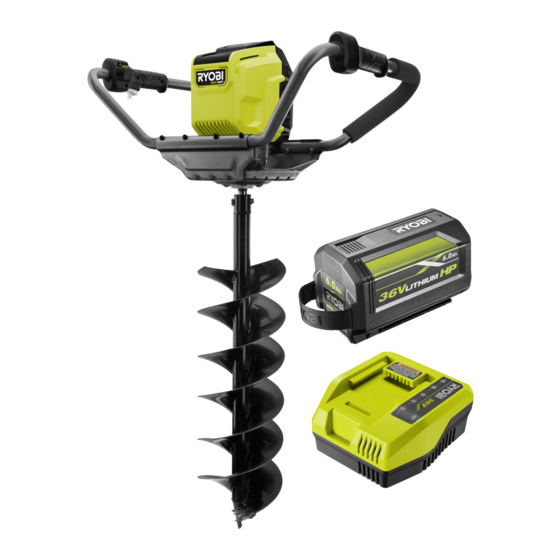

SYMBOLS IN THIS MANUAL Note Warning Parts or accessories sold separately Original Instructions... - Page 7 R36PHD00 Right handle assembly Speed select and reverse switch Trigger Wire assembly Insulated handle Left handle assembly Battery port Gear box Quick-lock pin Drive shaft Bolts Nuts Auger Tools for assembly Operator’s manual R36XPHD16 Battery pack Charger Know your product...
- Page 8 With the battery port facing towards Always wear safety goggles or safety Insert the right handle assembly on the glasses with side shields when side with the exposed cable leading to you, insert the tubes of the left handle operating the product. Wear non-slip, the motor controller in the power head.
- Page 9 Secure the left handle assembly using Hand-tighten the bolts, then tighten Secure the right handle assembly using the nuts and bolts. them securely with a hex nut using a the nuts and bolts. hex key and wrench. Insert the auger into the drive shaft. Align the holes on the auger and drive shaft. Insert the battery pack until the latch Insert and lock the quick-lock pin.
- Page 10 Operating the p.11 product Cleaning the Storing the p.13 p.14 product product...
- Page 11 OPERATING THE PRODUCT WARNING: Always stand with the forward/ reverse button close to the waist during operation. WARNING: Maintain a firm grip on the product, and hold both handles in the correct operating position. 1. Insert the battery pack until the latch clicks into place.
-
Page 12: Operating Tips
4. Use the product to plant and dig holes for applications such as planting of trees, shrubs, flowers, cultivating preparing soil, and light-duty fencing and posts. WARNING: Do not touch the auger bit when the product is turned on. Keep the auger bit away from the body and below waist level. -
Page 13: Cleaning The Product
CLEANING THE PRODUCT 1. Press the latches and remove the battery pack. 2. Unlock the quick-lock pin. Remove the auger from the drive shaft. 3. Clean the auger with water or a brush. WARNING: Never wash the body of the product with water. -
Page 14: Storing The Product
STORING THE PRODUCT 1. Press the latch and remove the battery pack. 2. Unlock the quick-lock pin. Remove the auger from the drive shaft. 3. Secure the quick-lock pin to the drive shaft. 4. Store the product in a cool, dry, and well-ventilated area that is inaccessible to children. -
Page 15: Product Specifications
Cordless post hole digger standardised test and may be used to compare one tool with Model R36PHD00/R36XPHD16 another. They may be used for a preliminary assessment of exposure. Voltage 36 V d.c. - Page 16 Techtronic Industries Australia Pty Ltd 31 Gilby Road, Mount Waverley, VIC 3149 Melbourne, Australia Techtronic Industries N.Z. Limited Unit C, 70 Business Parade South, Highbrook, Auckland 2013, New Zealand RYOBI is a trade mark of Ryobi Limited, and is used under license. 961087475-01...
