- Page 1 Preface Introduction Installing the Device RUGGEDCOM RSG909R Device Management Communication Ports Technical Specifications Installation Guide Certification 09/2018 RC1388-EN-05...
- Page 2 Warranty Siemens warrants this product for a period of five (5) years from the date of purchase, conditional upon the return to factory for maintenance during the warranty term. This product contains no user-serviceable parts. Attempted service by unauthorized personnel shall render all warranties null and void.
- Page 3 RUGGEDCOM RSG909R Installation Guide Contacting Siemens Address Telephone E-mail Siemens Canada Ltd Toll-free: 1 888 264 0006 ruggedcom.info.i-ia@siemens.com Industry Sector Tel: +1 905 856 5288 300 Applewood Crescent Fax: +1 905 856 1995 Concord, Ontario https://www.siemens.com/ruggedcom Canada, L4K 5C7...
- Page 4 RUGGEDCOM RSG909R Installation Guide...
-
Page 5: Table Of Contents
RUGGEDCOM RSG909R Installation Guide Table of Contents Table of Contents Preface ......................Alerts ..............................vii Related Documents ..........................viii Accessing Documentation ........................viii Training ............................viii Customer Support ..........................viii Chapter 1 Introduction ..................... 1.1 Feature Highlights ........................2 1.2 Description ........................... 2 1.3 Required Tools and Materials ...................... - Page 6 RUGGEDCOM RSG909R Table of Contents Installation Guide Chapter 4 Communication Ports ..................4.1 Redundant Network Access (RNA) Ports ..................25 4.2 Copper Ethernet Ports ......................... 26 Chapter 5 Technical Specifications .................. 5.1 Power Supply Specifications ......................29 5.2 Failsafe Alarm Relay Specifications ....................30 5.3 Supported Networking Standards ....................
-
Page 7: Preface

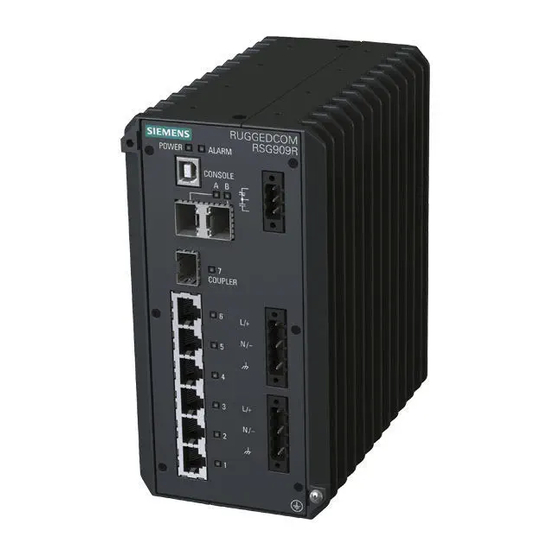

Installation Guide Preface Preface This guide describes the RUGGEDCOM RSG909R. It describes the major features of the device, installation, commissioning and important technical specifications. It is intended for use by network technical support personnel who are responsible for the installation, commissioning and maintenance of the device. -
Page 8: Related Documents
Siemens Sales representative. Customer Support Customer support is available 24 hours, 7 days a week for all Siemens customers. For technical support or general information, contact Siemens Customer Support through any of the following methods: Online Visit http://www.siemens.com/automation/support-request... -
Page 9: Customer Support
RUGGEDCOM RSG909R Installation Guide Preface • Contact a local Siemens representative from Sales, Technical Support, Training, etc. • Ask questions or share knowledge with fellow Siemens customers and the support community Customer Support... - Page 10 RUGGEDCOM RSG909R Preface Installation Guide Customer Support...
-
Page 11: Introduction
The device features IP40 degree protection, does not use internal fans for cooling, and supports a -40 to 85 °C (-40 to 185 °F) extended operating temperature range. • Compact Design The small form factor of the RUGGEDCOM RSG909R allows for installation in space-limited cabinets and on DIN rails. • Dual Input Power The device features dual power inputs to support redundant AC or DC power sources. -
Page 12: Feature Highlights
• Terminal blocks for reliable maintenance free connections • CSA/UL 60950-1 safety approved to 85 °C (185 °F) Section 1.2 Description The RUGGEDCOM RSG909R features various ports, controls and indicator LEDs on the front panel for connecting, configuring and troubleshooting the device. Feature Highlights... -
Page 13: Required Tools And Materials
Section 2.6, “Connecting Power”. Section 1.3 Required Tools and Materials The following tools and materials are required to install the RUGGEDCOM RSG909R: Tools/Materials Purpose AC power cord (16 AWG) For connecting power to the device. Required Tools and Materials... -
Page 14: Decomissioning And Disposal
Siemens also does not recommend using copper Ethernet ports to interface with devices in the field across distances that could produce high levels of ground potential rise (i.e. greater than 2500 V), during line-to-ground fault conditions. -
Page 15: Installing The Device
This product contains no user-serviceable parts. Attempted service by unauthorized personnel shall render all warranties null and void. Changes or modifications not expressly approved by Siemens Canada Ltd could invalidate specifications, test results, and agency approvals, and void the user's authority to operate the equipment. -
Page 16: General Procedure
Installing the Device in Hazardous Locations The RUGGEDCOM RSG909R is designed to comply with the safety standards for Class I, Division 2, Zone 2 hazardous locations where concentrations of flammable gases, vapors or liquids may be present, as opposed to normal operating environments. - Page 17 Substitution of the components may impair suitability for Class I, Division 2. IMPORTANT ! Le remplacement de composants pourrait compromettre l'admissibilité à la Classe I, Division 2. Sample Hazardous Location Label The following is an example of the RUGGEDCOM RSG909R hazardous location label: Installing the Device in Hazardous Locations...
-
Page 18: Mounting The Device
Section 2.4 Mounting the Device The RUGGEDCOM RSG909R is designed for maximum mounting and display flexibility. It can be equipped with adapters that allow it to be installed on a 35 mm (1.4 in) DIN rail or affixed to a panel. - Page 19 RUGGEDCOM RSG909R Chapter 2 Installation Guide Installing the Device Mounting the Device To mount the device to a DIN rail, do the following: Position the device in front of the DIN rail and then hook the upper part of the DIN rail bracket onto the DIN rail.
-
Page 20: Mounting The Device To A Panel
Section 2.4.2 Mounting the Device to a Panel For panel installations, the RUGGEDCOM RSG909R can be equipped with panel adapters on the top and bottom of the chassis. The adapters allow the device to be attached to a panel using screws. - Page 21 RUGGEDCOM RSG909R Chapter 2 Installation Guide Installing the Device Figure 5: Panel Mount Adapter Assembly 1. Screw (M4) 2. Panel Mount Adapter Prepare mounting holes in the panel where the device is to be installed. Place the device against the panel and align the adapters with the mounting holes.
-
Page 22: Connecting The Failsafe Alarm Relay
Control of the failsafe relay output is configurable through ROS. One common application for this relay is to signal an alarm if a power failure occurs. For more information, refer to the ROS User Guide for the RUGGEDCOM RSG909R. To connect the failsafe alarm relay, do the following: Insert the failsafe alarm relay terminal block into the device and tighten the screws. -
Page 23: Connecting Power
1. Failsafe Alarm Relay Terminal Block 2. Normally Open 3. Common 4. Normally Closed Section 2.6 Connecting Power The RUGGEDCOM RSG909R features two input terminals that allow the device to be powered by: • Up to one independent AC and one independent DC power source • Two independent DC power sources IMPORTANT! •... - Page 24 Chapter 2 RUGGEDCOM RSG909R Installing the Device Installation Guide NOTE For examples of the supported wiring configurations, refer to Section 2.6.2, “Wiring Examples”. NOTE This device is intended to be connected to two independent power sources. WARNING! Electrocution hazard – risk of personal injury. When only one AC power source is connected to the device, the secondary power terminals are energized.
-
Page 25: Wiring Examples
RUGGEDCOM RSG909R Chapter 2 Installation Guide Installing the Device HI Power Supply Connect the Line wire (AC) or Positive wire (DC) to the positive/live (+/L) terminal on the terminal block. Connect the Neutral wire (AC) or Negative wire (DC) to the negative/neutral (-/N) terminal on the terminal block. - Page 26 Chapter 2 RUGGEDCOM RSG909R Installing the Device Installation Guide HI Power Supply Configurations Figure 12: Single High AC Power Input Configuration Figure 13: Single High DC Power Input Configuration Wiring Examples...
- Page 27 RUGGEDCOM RSG909R Chapter 2 Installation Guide Installing the Device Figure 14: Dual High AC and DC Power Supplies Figure 15: Dual High DC Power Supplies Wiring Examples...
-
Page 28: Connecting The Device To The Network
Chapter 2 RUGGEDCOM RSG909R Installing the Device Installation Guide LO Power Supply Configurations Figure 16: Single Low DC Power Input Configuration Figure 17: Dual Low DC Power Input Configuration Section 2.7 Connecting the Device to the Network Steps to connect the device to the network are application-specific. - Page 29 Port Connect To... Not used Not used 7 (Coupler) Connect to an Ethernet-capable device if the RUGGEDCOM RSG909R is configured as an HSR or PRP RedBox 1 to 6 Connect to an Ethernet-capable device Figure 18: LAN 1. Ethernet-Capable Device 2. Switch (RUGGEDCOM RSG909R) ...
- Page 30 Connect to one or more Singly Attached Nodes (SANs) Figure 20: An HSR Ring 1. HSR Ring 2. HSR RedBox (RUGGEDCOM RSG909R) 3. HSR- Unaware Device 4. SAN Connecting an HSR Ring and PRP Network In this application, the device operates as one of two HSR/PRP RedBoxes in an HSR ring that is connected to either LAN A or LAN B in the PRP network.
- Page 31 RUGGEDCOM RSG909R Chapter 2 Installation Guide Installing the Device Port Connect To... Connect to port B of the neighboring HSR/PRP RedBox or to the HSR ring Connect to port A of the neighboring HSR/PRP RedBox or to the HSR ring...
- Page 32 Chapter 2 RUGGEDCOM RSG909R Installing the Device Installation Guide Port Connect To... Connect to port B of the neighboring HSR/HSR RedBox or to the HSR ring Connect to port A of the neighboring HSR/HSR RedBox or to the HSR ring...
-
Page 33: Device Management
For Microsoft Windows users, the RUGGEDCOM USB Serial Console driver must be installed on the users workstation before connecting via the USB Type-B console port. For more information, refer to the RUGGEDCOM ROS User Guide for the RUGGEDCOM RSG909R. Use the following settings to connect to the port:... -
Page 34: Configuring The Device
Chapter 3 RUGGEDCOM RSG909R Device Management Installation Guide Terminal ID VT100 Ethernet Ports Connect any of the available Ethernet ports on the device to a management switch and access the RUGGEDCOM ROS console and Web interfaces via the device's IP address. The factory default IP address for the RUGGEDCOM RSG909R is https://192.168.0.1. -
Page 35: Communication Ports
RUGGEDCOM RSG909R Chapter 4 Installation Guide Communication Ports Communication Ports The RUGGEDCOM RSG909R can be equipped with various types of communication ports to enhance its abilities and performance. Figure 23: Port Assignment 1. Ports A and B 2. Port 7 3. Ports 1 to 6 Port... -
Page 36: Copper Ethernet Ports
Link established Green (Blinking) Link activity No link detected Compatible SFPs For more information about which SFP transceivers are compatible with the RUGGEDCOM RSG909R, as well as instructions for ordering and installation/removal, refer to the RUGGEDCOM SFP Transceiver Catalog [https:// support.industry.siemens.com/cs/ca/en/view/109482309]. - Page 37 RUGGEDCOM RSG909R Chapter 4 Installation Guide Communication Ports WARNING! Electric shock hazard – risk of serious personal injury and/or equipment interference. When shielded cables are used, make sure the shielded cables do not form a ground loop via the shield wire and the RJ45 receptacles at either end.
- Page 38 Chapter 4 RUGGEDCOM RSG909R Communication Ports Installation Guide Copper Ethernet Ports...
-
Page 39: Technical Specifications
RUGGEDCOM RSG909R Chapter 5 Installation Guide Technical Specifications Technical Specifications This section provides important technical specifications related to the device. CONTENTS • Section 5.1, “Power Supply Specifications” • Section 5.2, “Failsafe Alarm Relay Specifications” • Section 5.3, “Supported Networking Standards” • Section 5.4, “Copper Ethernet Port Specifications”... -
Page 40: Failsafe Alarm Relay Specifications
Chapter 5 RUGGEDCOM RSG909R Technical Specifications Installation Guide Non Hazardous Environments Input Voltage Power Internal Maximum Power Isolation Supply Type Fuse Rating Consumption Minimum Maximum Nominal 12 VDC, 24 10 VDC 60 VDC 1.5 kVDC 13.4 W VDC, 48 VDC... -
Page 41: Copper Ethernet Port Specifications
RUGGEDCOM RSG909R Chapter 5 Installation Guide Technical Specifications Standard 10 Mbps Ports 100 Mbps Ports 1000 Mbps Ports Description IEEE 802.3z 1000Base-LX ü IEEE 802.3ab 1000Base-Tx ü IEEE 802.3ad Link Aggregation ü IEEE 802.1D MAC Bridges ü ü ü IEEE 802.1D Spanning Tree Protocol (STP) ü... -
Page 42: Operating Environment
Technical Specifications Installation Guide Section 5.5 Operating Environment The RUGGEDCOM RSG909R is rated to operate under the following environmental conditions. Ambient Operating Temperature -40 to 85 °C (-40 to 185 °F) Ambient Storage Temperature -40 to 85 °C (-40 to 185 °F) - Page 43 RUGGEDCOM RSG909R Chapter 5 Installation Guide Technical Specifications 162.72 Figure 26: Overall Dimensions 38.1 163.12 Figure 27: Panel Mount Dimensions Dimension Drawings...
- Page 44 Chapter 5 RUGGEDCOM RSG909R Technical Specifications Installation Guide 162.72 Figure 28: DIN Rail Mount Dimensions Dimension Drawings...
-
Page 45: Certification
RUGGEDCOM RSG909R Chapter 6 Installation Guide Certification Certification The RUGGEDCOM RSG909R device has been thoroughly tested to guarantee its conformance with recognized standards and has received approval from recognized regulatory agencies. CONTENTS • Section 6.1, “Approvals” • Section 6.2, “EMC and Environmental Type Tests”... -
Page 46: Csa/Sira
Chapter 6 RUGGEDCOM RSG909R Certification Installation Guide • CAN/CSA-C22.2 No. 60079-0:15 Explosive Atmospheres – Part 0: Equipment – General Requirements • CAN/CSA-C22.2 No. 60079-15:16 Electrical Apparatus for Explosive Gas Atmospheres – Part 15: Construction, Test and Marking of Type of Protection "n"... -
Page 47: European Union (Eu)
Electromagnetic compatibility of multimedia equipment – Emission requirements The device is marked with a CE marking and can be used throughout the European community. A copy of the CE Declaration of Conformity is available from Siemens Canada Ltd. For contact information, refer to “Contacting Siemens”. -
Page 48: Fda/Cdrh
• Title 21 Code of Federal Regulations (CFR) – Chapter I – Sub-chapter J – Radiological Health Section 6.1.6 ISED This device is declared by Siemens Canada Ltd to meet the requirements of the following ISED (Innovation Science and Economic Development Canada) standard: • CAN ICES-3 (A)/NMB-3 (A) Section 6.1.7... -
Page 49: Rohs
RUGGEDCOM RSG909R Chapter 6 Installation Guide Certification A copy of the KC Declaration of Conformity is available from Siemens Canada Ltd. For contact information, refer to “Contacting Siemens”. Notices specific to the RRA: WARNING! Class A Equipment (Industrial Broadcasting and Communication Equipment) This device complies with the limits of a Class A electromagnetic wave device and is intended for use outside of a residential environment. -
Page 50: Emc And Environmental Type Tests
Chapter 6 RUGGEDCOM RSG909R Certification Installation Guide Section 6.2 EMC and Environmental Type Tests The RUGGEDCOM RSG909R has passed the following Electromagnetic Compatibility (EMC) and environmental tests. EMC Type Tests Test Description Test Levels Severity Levels IEC 61000-4-2 Enclosure Contact ± 8 kV Enclosure Air ±... - Page 51 EMC Immunity Type Tests per IEEE 1613 NOTE The RUGGEDCOM RSG909R meets Class 2 requirements for an all-fiber configuration and Class 1 requirements for copper ports. Class 1 allows for temporary communication loss, while Class 2 requires error-free and interrupted communications.
- Page 52 Chapter 6 RUGGEDCOM RSG909R Certification Installation Guide Environmental Type Tests Test Description Test Levels Severity Levels IEC 60068-2-1 Cold Temperature Test Ad -40 °C (-40 °F), 16 Hours Cold Storage Test Ab -40 °C (-40 °F), 16 Hours IEC 60068-2-2...
