BA 207C/07/en/03.03

51501595

Software version 1.00 or later

Quality made by

Endress+Hauser

ISO 9001

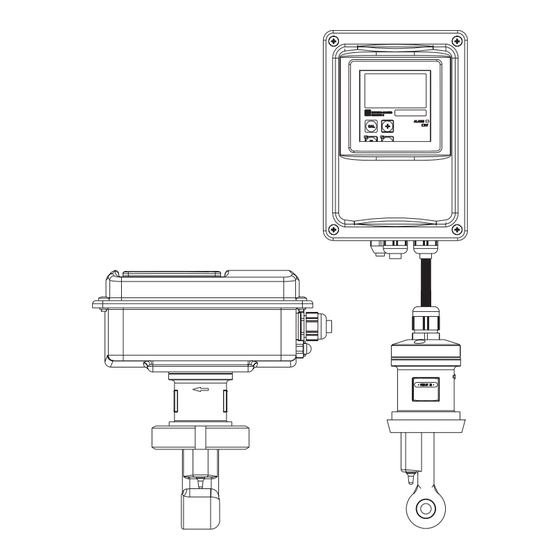

SmarTec S CLD 132

Conductivity Measuring

System

Operating Instructions

ENDRESS+HAUSER

SMARTEC S

ALARM

CAL

–

Table of Contents

Summary of Contents for Endress+Hauser SmarTec S CLD 132

Page 1 SmarTec S CLD 132 BA 207C/07/en/03.03 51501595 Software version 1.00 or later Conductivity Measuring System Operating Instructions ENDRESS+HAUSER ENDRESS+HAUSER SMARTEC S SMARTEC S ALARM – Quality made by Endress+Hauser ISO 9001...
Page 3: Table Of Contents
Maintenance ....53 Maintenance of SmarTec S CLD 132 ..53 Maintenance of measuring system ..55 Service equpipment "Optoscope"...
Page 4: Safety Instructions
• Repairs not described in these Operating Instructions may only be carried out at the manufacturer’s or by the Endress+Hauser service organisation. Operational safety The transmitter has been designed and tested according to the state of the art and left the factory in perfect functioning order.
Page 5: Return
SmarTec S CLD 132 Safety instructions Return i>˜i` If the transmitter has to be repaired, please return it to the Endress+Hauser sales centre responsible. Please use the original packaging, if possible. Please enclose the completed Dangerous Goods sheet (copy the second last page of these Operating instructions) with the packaging and also the shipping documents.
Page 6: Identification
0...+55 °C C07-CLD132xx-18-06-00-xx-001.eps ˆ}°Ê£’Ê 2b“i«bÌiÊ)Ê£ÎÓÊiÝb“«i® 2.1.2 Product structure SmarTec S CLD 132 Version Compact version Separate transmitter, cable length 20 m / 65.62 ft Separate transmitter, cable length 5 m / 16.41 ft Separate transmitter, cable length 10 m / 32.81 ft Process connection Dairy fitting DN 50 (acc.
Page 7: Scope Of Delivery
Relay can be configured as alarm or limit contact Scope of delivery The scope of delivery of the compact version inlcudes: • SmarTec S CLD 132 compact measuring system with integrated sensor • Terminal strip set • Expansion bellows (-xGE1xxxxx versions only) • Operating instructions BA 207C/07/en •...
Page 8: Installation
• If you have not yet installed the sensor at the measuring point, perform an Airset and install the sensor (see the Technical Information of the sensor). • Connect the sensor to the SmarTec S CLD 132 as described in the chapter "Electrical connection".
Page 9: Incoming Acceptance, Transport, Storage
The original packaging offers the best protection. Also, keep to the approved ambient conditions (see "Technical data"). • If you have any questions, please contact your supplier or your Endress+Hauser sales centre responsible (see back page of these Operating Instructions).
Page 10 Installation SmarTec S CLD 132 0.20 0.39 0.59 0.79 0.98 a [inch] 1,40 1,20 1,00 0,80 a [mm] C07-CLD132xx-05-06-00-en-001.eps ˆ}°Ê{’Ê DibÌˆœ˜Ã…ˆ«ÊviÌÜii˜Êˆ˜ÃÌbbÌˆœ˜Êvb†ÌœÀÊb˜–Ê–ˆÃÌb˜†iÊvÀœ“ÊÜbÊb £ i†ÌÀˆ†bÞÊ†œ˜–Õ†ÌˆÛiÊ«ˆ«iÊÜb Ó "˜ÃÕbÌˆ˜}Ê«ˆ«iÊÜb 3.3.2 CLD 132 separate version 142 / 5.59 Ø 7 / 0.28 225 / 8.86 175 / 6.89...
Page 11 SmarTec S CLD 132 Installation 109 / 4.29 Ø max. 60 / Ø max. 2.36 170 / 6.69 mm / inch C07-CLD132xx-11-06-00-en-002.EPS ˆ}°ÊÈ’Ê )Ê£ÎÓÊ“œÕ˜Ìˆ˜}Êœ˜Ê«ˆ«iÃÊ@ÊÈäÊ““ÊÉÊÓ°ÎÈ¸® Conductivity sensors for the separate transmitter Â CLS 52 conductivity sensors with various process connections covering all common installation conditions are available for the separate version.
Page 12 Installation SmarTec S CLD 132 Measuring range k = 5,9 cm CLS 52 2000 0,01 1000 10000 µS/cm mS/cm C07-CLD132xx-05-06-00-xx-002.eps ˆ}°Ên’Ê )EÊxÓÊ“ibÃÕÀˆ˜}ÊÀb˜}i 3.3.3 CLD 132 compact version 225 / 8.86 142 / 5.59 35,5 / 1.40 ∅ 49 / 1.93 34 / 1.34...
Page 13 SmarTec S CLD 132 Installation Connection variants Various process connections covering all common installation conditions are available for the compact version. The compact version is installed at the measuring point with the required process connection. Dairy fitting DN 50 2" SMS G 1½...
Page 14: Installation Instructions
Installation SmarTec S CLD 132 Installation instructions 3.4.1 Mounting CLD 132 separate version Wall mounting For wall mounting, attach the mounting plate to the wall by drilling holes as required. Anchors and screws are to be provided by the operator.
Page 15 C07-CLD132-11-06-00-en-006.eps ˆ}°Ê£{’Ê "˜ÃÌbbÌˆœ˜ÊœvÊ)Ê£ÎÓÊ†œ“«b†ÌÊÛiÀÃˆœ˜ When installing the SmarTec S CLD 132 or the sensor, make sure that the flow opening of the sensor is oriented in the flow direction of the medium. An orientation arrow on the sensor facilitates orientation (see Fig. 14 above).
Page 16: Post-Installation Check
Installation SmarTec S CLD 132 Sensor positioning: compact version The sensor in the compact housing must be oriented in the flow direction. If you need to reorient the sensor in relation to the housing, proceed as follows: Remove the cover.
Page 17: Wiring
• Ensure that there is no voltage at the power cable before beginning the connection work. 4.1.1 Electrical connection of transmitter Proceed as follows to connect the SmarTec S CLD 132: 1. Loosen the 4 Phillips screws on the housing cover and remove the cover. 2. Remove the cover frame from the terminal blocks.
Page 18 Wiring SmarTec S CLD 132 C07-CLD132xx-04-06-04-xx-001.eps ˆ}°Ê£Ç’Ê GiÀ“ˆ˜bÊbÃÃˆ}˜“i˜ÌÃÊœvÊ†bviÊ}b˜–ÃÊœ˜ÊE“bÀGi†ÊEÊ)Ê£ÎÓ Á Ei«bÀbÌiÊÛiÀÃˆœ˜ É œ“«b†ÌÊÛiÀÃˆœ˜ £ BÕ}“ÊB}Ê£Î°x“Êb˜bœ}ÊœÕÌ«ÕÌ“Ê–ˆ}ˆÌbÊˆ˜«ÕÌ £ BÕ}“ÊB}Ê£Î°x“Êb˜bœ}ÊœÕÌ«ÕÌ“Ê–ˆ}ˆÌbÊˆ˜«ÕÌ Ó bviÊ}b˜–ÊvœÀÊbbÀ“Ê†œ˜Ìb†Ì“ÊB}Ê£Î°x Ó bviÊ}b˜–ÊvœÀÊbbÀ“Ê†œ˜Ìb†Ì“ÊB}Ê£Î°x Î bviÊ}b˜–ÊvœÀÊ«œÜiÀÊÃÕ««Þ“ÊB}Ê£Î°x Î bviÊ}b˜–ÊvœÀÊ«œÜiÀÊÃÕ««Þ“ÊB}Ê£Î°x !œÕÃˆ˜}Ê}ÀœÕ˜– !œÕÃˆ˜}Ê}ÀœÕ˜– BÀiÃÃÕÀiÊ†œ“«°Êii“i˜ÌÊBÊ œÀiÌiÝÁ‡ÊvˆÌiÀ® BÀiÃÃÕÀiÊ†œ“«°Êii“i˜ÌÊBÊ œÀiÌiÝÁ‡ÊvˆÌiÀ® È bviÊ}b˜–ÊvœÀÊÃi˜ÃœÀÊ†œ˜˜i†Ìˆœ˜“ÊB}Ê™ Wiring diagram Alarm (contact position: no current) 15 84 12 13...
Page 19 SmarTec S CLD 132 Wiring Connection diagram optional 15 V 10-50 V ∼ – ∼ – 10-50 V C07-CLD132xx-05-06-00-xx-003.eps ˆ}°Ê£™’Ê i†ÌÀˆ†bÊ†œ˜˜i†Ìˆœ˜ÊœvÊE“bÀGi†ÊEÊ)Ê£ÎÓ Á Eˆ}˜bÊœÕÌ«ÕÌÊ£Ê†œ˜–Õ†ÌˆÛˆÌÞ œ˜–Õ†ÌˆÛˆÌÞÊÃi˜ÃœÀ É Eˆ}˜bÊœÕÌ«ÕÌÊÓÊÌi“«iÀbÌÕÀi Gi“«iÀbÌÕÀiÊÃi˜ÃœÀ ÁÕÝˆˆbÀÞÊ«œÜiÀÊœÕÌ«ÕÌ ÁbÀ“Ê†œ˜Ìb†ÌÊ«œÃˆÌˆœ˜’Ê˜œÊ†ÕÀÀi˜Ì® Éˆ˜bÀÞÊˆ˜«ÕÌÊÓÊ1DE£³Ó® " BœÜiÀÊÃÕ««Þ Éˆ˜bÀÞÊˆ˜«ÕÌÊ£Ê…œ–ÊÉÊ1DEÊÎ³{® Connection of binary inputs 15 V C07-CLD132xx-05-06-00-xx-004.eps ˆ}°ÊÓä’Ê...
Page 20 Wiring SmarTec S CLD 132 Connection compartment sticker 131082-4A Sensor 31 + 32 - 33 + Temp. (opt.) 34 - 85 + +15V 10mA 86 - 93 + Bin 2 94 - 81 + Bin 1 82 - ∼ –...
Page 21: Post-Connection Check
SmarTec S CLD 132 Wiring Post-connection check After wiring up the electrical connection, carry out the following checks: Device status and specifications Remarks Are the transmitter or the cable externally damaged? Visual inspection Electrical connection Remarks Are the installed cables strain-relieved? No loops and cross-overs in the cable run? Are the signal cables correctly connected acc.
Page 22: Operation
Note! For operation via HART or PROFIBUS PA/DP, read the corresponding chapters in the additional operating instructions: • PROFIBUS PA/DP, field communication with SmarTec S CLD 132, BA 213C/07/en • HART ® , field communication with SmarTec S CLD 132, BA 212C/07/en The following chapters describe local operation via operating keys.
Page 23 SmarTec S CLD 132 Operation 5.2.2 Operating elements The operating keys are located underneath the housing cover. The display and the alarm LED are visible through the viewing window. For operation, open the housing cover by removing the 4 screws.
Page 24 Operation SmarTec S CLD 132 PLUS key and MINUS key In setup mode, the PLUS and MINUS keys have the following functions: • Selection of function groups Â Note! To select function groups in the order given in the chapter "Instrument configuration", use the MINUS key.
Page 25: Local Operation
SmarTec S CLD 132 Operation Local operation 5.3.1 Operating concept Operating modes Measuring mode: standard mode of operation, displaying current measured values Calibration mode: Setup mode execution of access to all calibration routine configuration settings Code The function groups are selected with the PLUS or MINUS key.
Page 26 Operation SmarTec S CLD 132 Menu structure The configuration and calibration functions are arranged in a menu structure by function groups. The function groups are selected in the setup mode with the PLUS and MINUS keys. The ENTER key is used to move from one function to the next within a function group.
Page 27: Commissioning
The following function groups are available on the SmarTec S CLD 132 (the function groups that are only available on the version equipped with the function extension are marked accordingly in the...
Page 28 ˆ}°ÊÓ™’Ê Õ˜†Ìˆœ˜Ê†œ–ˆ˜} from the left to the right. For a detailed description of the function groups available on the SmarTec S CLD 132 see the chapter "Instrument configuration". Factory settings When the instrument is switched on for the first time, the factory settings are in effect.
Page 29: Quick Setup
SmarTec S CLD 132 Commissioning Alarm contact C07-CLD132xx-04-06-00-xx-005.eps ˆ}°ÊÎä’Ê Di†œ““i˜–i–Êvbˆ‡ÃbviÊ†ˆÀ†ÕˆÌÊvœÀÊb˜ÊbbÀ“Ê†œ˜Ìb†Ì Á 2œÀ“bÊœ«iÀbÌˆ˜}ÊÃÌbÌi É ÁbÀ“ÊÃÌbÌi Normal operating state Alarm state • Instrument in operation • Error message available (Alarm LED red) • No error message available (Alarm • Instrument defective or voltage-free (Alarm...
Page 30 Commissioning SmarTec S CLD 132 Input Selection or range Display (factory setting bold) 10. In A2, press the ENTER key to confirm the mg/l factory setting. TDS = Total Conc.Unit Dissolved Solids none XX.xx XX.xx 11. In A3, press the ENTER key to confirm the X.xxx...
Page 31 SmarTec S CLD 132 Commissioning Input Selection or range Display (factory setting bold) 21. The real temperature is displayed in B5. If Display and entry of °C necessary, calibrate the temperature sensor to real temperature an external measurement. -35.0 ... 250.0 °C RealTemp.
Page 32: Instrument Configuration
Commissioning SmarTec S CLD 132 Instrument configuration The following sections give a detailed description of all SmarTec S CLD 132 functions. 6.4.1 Setup 1 In the SETUP 1 function group, you can change the operating mode and the sensor settings.
Page 33 SmarTec S CLD 132 Commissioning 6.4.2 Setup 2 In this function group, you can change the settings for temperature measurement. You have already made the settings of this function group during quick setup but you can modify the settings at any time.
Page 34 Commissioning SmarTec S CLD 132 6.4.3 Current outputs The OUTPUT function group is used to configure the individual outputs. Furthermore, a current output value can be simulated to check the current outputs (O2 (2)). Coding Field Selection or range Display...
Page 35 SmarTec S CLD 132 Commissioning 6.4.4 Monitoring functions The monitoring functions are used to define various alarms and to set output contacts. Each individual error can be defined to be effective or not (at the contact or as an error current).
Page 36 Commissioning SmarTec S CLD 132 Coding Field Selection or range Display Info (factory settings bold) The error current selected in F4 Set error current to becomes effective or is suppressed be effective for when an error occurs. selected error This setting only applies to the error Curr.Assg...
Page 37 Commissioning 6.4.5 Relay configuration For SmarTec S CLD 132 equipped with remote measuring range switching, there are three options for configuring the relay (selection in field R1): • Alarm The relay closes the contact 41/42 (voltage-free, safe state) if an alarm condition according to chapter 9.2 occurs and if the setting in the “Alarm contact”...
Page 38 Commissioning SmarTec S CLD 132 Coding Field Selection or range Display Info (factory settings bold) Function group Settings for relay contacts. RELAY RELAY alarm alarm When “alarm” is selected, the fields Select function limit R2 ... R5 are irrelevant. al+li = alarm + limit...
Page 39 SmarTec S CLD 132 Commissioning 6.4.6 Temperature compensation The temperature compensation only needs to be performed in the conductivity mode (selection in field A1). The temperature coefficient specifies the change in conductivity per degree of temperature change. It depends on the chemical composition of the medium and the temperature itself.
Page 40 Commissioning SmarTec S CLD 132 Temperature compensation with table When using the alpha table function for temperature compensation, the following conductivity data of the process medium to be measured is required: Value pairs of temperature T and conductivity κ with: •...
Page 41 6.4.7 Concentration measurement The SmarTec S CLD 132 transmitter can convert conductivity values to concentration values. For this, set the operating mode to Concentration measurement (see field A1). Then, you must enter the basic data to which the concentration calculation should refer.
Page 42 Commissioning SmarTec S CLD 132 Finally, you should have measuring data which are similar to those shown in the following figures: κ κ C07-CLD132xx-05-06-00-xx-012.eps ˆ}°ÊÎÈ’Ê 1ibÃÕÀi–Ê–bÌbÊvœÀÊÛbÀˆbviÊ«Àœ†iÃÃÊÌi“«iÀbÌÕÀiÃÊiÝb“«i® œ˜–Õ†ÌˆÛˆÌÞ £ 1ibÃÕÀˆ˜}Ê«œˆ˜Ì κ œ˜†i˜ÌÀbÌˆœ˜ Ó 1ibÃÕÀˆ˜}ÊÀb˜}i Gi“«iÀbÌÕÀi κ κ ma x ma x C07-CLD132xx-05-06-00-xx-015.epsB...
Page 43 SmarTec S CLD 132 Commissioning Coding Field Selection or range Display Info (factory settings bold) Settings for concentration measurement. Function group Four fixed and four editable CONCENTRATION concentration fields are stored in this CONCENTRA function group. Select NaOH 0... 15 % The user tables 2 ...
Page 44 Commissioning SmarTec S CLD 132 Coding Field Selection or range Display Info (factory settings bold) °C Enter temperature 0.0 °C value for K6 -35.0 ... 250.0 °C Temp.val. Enter whether or not the table status is Back to K. Status ok 6.4.8...
Page 45 SmarTec S CLD 132 Commissioning Coding Field Selection or range Display Info (factory settings bold) Enter SW upgrade Entering an incorrect code returns you to release code of the measurement menu. The number is function extension 0 ... 9999 edited with the PLUS or MINUS key and MRSCode confirmed with the ENTER key.
Page 46 Commissioning SmarTec S CLD 132 Coding Field Selection or range Display Info (factory settings bold) E112 xx.xx E122 Hardware version is E112 Cannot be edited. E132 displayed E142 HW-Vers. E113 SerNo E123 Serial number is E113 Cannot be edited. E133...
Page 47 You can order the remote measuring range switching (MRS) via binary inputs directly as an option of your SmarTec S CLD 132 (see "Product structure") or you can retrofit a standard transmitter with the MRS function extension (see the chapter "Accessories").
Page 48 Commissioning SmarTec S CLD 132 Assignment of binary inputs The SmarTec S CLD 132 transmitter has 2 binary inputs. They can be defined in field M1 as follows: Assignment of field M1 Assignment of binary inputs M1 = 0 MRS not active. The binary input 1 can be used for external hold.
Page 49 SmarTec S CLD 132 Commissioning Coding Field Selection or range Display Info (factory settings bold) cond. Select operating cond = conductivity The operating mode can be individually mode conc = concentration defined for each parameter set. Oper.Mode NaOH, H2SO4, H3PO4,...
Page 50 Commissioning SmarTec S CLD 132 6.4.13 Calibration To access the "Calibration" function group, press the CAL key. This function group is used to calibrate the transmitter. Two different types of calibration are possible: • Calibration by measurement in a calibration solution of a known conductivity.
Page 51 SmarTec S CLD 132 Commissioning Coding Field Selection or range Display Info (factory settings bold) If C113 = E xxx, then only no or new. Store calibration C114 C114 If new, return to C. results? If yes/no, return to “Measurement”.
Page 52: Communication Interfaces
Commissioning SmarTec S CLD 132 Coding Field Selection or range Display Info (factory settings bold) Calibration with Airs = Airset (1) InstF sensor adaptation Cellc = cell constant (2) Sensor calibration with compensation C1 (3) for inductive InstF = installation of wall influence.
Page 53: Maintenance
Note! Please contact your E+H representative if you have any questions. You can also send your queries to the E+H Service Organisation via the Internet: www.endress.com Maintenance of SmarTec S CLD 132 Ã 7.1.1 Dismantling SmarTec S CLD 132 Â...
Page 54 Maintenance SmarTec S CLD 132 Â 7.1.2 Special case: replacement of central module Note! A replacement central module LSCx-x is supplied from the factory with the instrument serial number of the new module. Since the serial and release numbers are linked to enable the extended functions and measuring range switching, an existing extension / MRS cannot be active.
Page 55: Maintenance Of Measuring System
SmarTec S CLD 132 Maintenance Maintenance of measuring system 7.2.1 Cleaning conductivity sensors Inductive sensors are less sensitive to soiling than conventional conductive sensors since there is no galvanic contact with the medium. However, dirt may collect in the measuring opening (making it narrower), which changes the cell constant.
Page 56 Maintenance SmarTec S CLD 132 7.2.3 Instrument check by medium simulation The inductive sensor cannot be simulated. However, the overall system comprising the CLD 132 and inductive sensor can be checked using equivalent resistances. Note the cell constant ( k = 5.9 for CLS 52).
Page 57: Service Equpipment "Optoscope
SmarTec S CLD 132 Maintenance 7.2.4 Checking line extension and junction box • Use the methods described in chapters "Checking inductive conductivity sensors" and "Instrument check by medium simulation" to perform a quick functional check from the conductivity sensor to the measuring instrument via an extension.
Page 58: Accessories
Inductive conductivity sensor with fast response time and hygienic design; with integrated temperature sensor. Order according to product structure, see Technical Information TI 167C/07/en. One InduMax H CLS 52 is included in the SmarTec S CLD 132 scope of delivery. Extension cable ❑Extension cable CLK 5 for inductive conductivity sensors, for extension via the VBM junction box, sold by the metre;...
Page 59: Post Mounting Kit
SmarTec S CLD 132 Accessories Post mounting kit ❑Mounting kit for installing the SmarTec S CLD 132 on horizontal or vertical pipes and posts (max. Ø 60 mm / 2.36"), material stainless steel 1.4301; order no.: 50062121 C07-CLD132xx-00-06-06-001.eps ˆ}°Ê{ä’Ê 1œÕ˜Ìˆ˜}ÊŽˆÌÊvœÀÊˆ˜ÃÌbˆ˜}Ê)Ê£ÎÓÊÃi«bÀbÌiÊÛiÀÃˆœ˜Êœ˜Ê«œÃÌÃÊœÀÊ«ˆ«iÃ...
Page 60: Troubleshooting
Troubleshooting Troubleshooting instructions The SmarTec S CLD 132 transmitter continually monitors its own functions. If the instrument detects a defect, the error number appears on the display. This error number is displayed underneath the main value unit display. If several errors are detected, these can be called up with the MINUS key.
Page 61 SmarTec S CLD 132 Troubleshooting Error no. Display Tests and / or measures Alarm contact Error current Factory User Factory User Measuring range of main Check measurement, control and connections E057 parameter exceeded (simulation see chapter "Instrument check by medium simulation").
Page 62: System Errors Without Error Messages
Troubleshooting SmarTec S CLD 132 System errors without error messages Use the following table to locate and correct errors. Error Possible cause Tests and / or remedial measures Equipment, spare parts, personnel Calibration faulty Calibrate instrument according to Calibration solution or sensor certificate chapter "Calibration".
Page 63 SmarTec S CLD 132 Troubleshooting Error Possible cause Tests and / or remedial measures Equipment, spare parts, personnel No / incorrect temperature ATC: select compensation type; linear: compensation set correct coefficient. MTC: set process temperature. Incorrect temperature Check temperature value.
Page 64 Troubleshooting SmarTec S CLD 132 Error Possible cause Tests and / or remedial measures Equipment, spare parts, personnel Extension package Extension package not enabled – When upgrading instrument with For a detailed description, see chapter functions not available (enable with code that depends on extension package: code received "Replacement of central module".
Page 65: Diagnosis
SmarTec S CLD 132 Troubleshooting Diagnosis The table below will help you diagnose problems and specifies the spare parts required. A diagnosis depending on difficulty and measuring equipment at hand is to be performed by: • trained operator personnel • operator’s electricians •...
Page 66: Spare Parts
Troubleshooting SmarTec S CLD 132 Error Possible cause Tests and / or remedial measures Equipment, spare parts, personnel Not calibrated correctly Test with built-in current simulation If simulation value is incorrect: (field O221), connecting mA meter recalibration at factory or new LSCxx Load excessive directly to current output.
Page 67 SmarTec S CLD 132 Troubleshooting 9.5.1 Exploded view Pos. 140 Pos. 30 Sensor orientation for horizontal flow Pos. 10 Install electronics box first, then connect instrument and snap on protective cover Pos. 20 Pos. 40 Sensor orientation for vertical flow (factory setting) Pos.
Page 68 Troubleshooting SmarTec S CLD 132 The exploded view drawing shows all components and spare parts of SmarTec S CLD 132. Use the position numbers to find the spare parts designation and their order number in the following section. 9.5.2 Spare part kits...
Page 69: Return
SmarTec S CLD 132 Troubleshooting Return i>˜i` If the transmitter has to be repaired, please return it to the Endress+Hauser sales centre responsible. Please use the original packaging, if possible. Please enclose the completed Dangerous Goods sheet (copy the second last page of these Operating instructions) with the packaging and also the shipping documents.
Page 70: Technical Data
Technical Data SmarTec S CLD 132 Technical Data 10.1 Input Measured variables Conductivity Concentration Temperature Measuring range Conductivity: 10 µS ... 2000 mS/cm (uncompensated) Concentration – NaOH: 0 ... 15 % – HNO 0 ... 25 % – H 0 ... 30 % –...
Page 71: Power Supply
–10 ... +70 °C / 14 ... 158 °F (separate version) –10 ... +55 °C / 14 ... 131 °F (compact version) (see Fig. 41 "Permissible temperature ranges of SmarTec S CLD 132") Storage temperature –25 ... +70 °C / -13 ... 158 °F Electromagnetic Interference emission and interference resistance acc.
Page 72: Mechanical Construction
Technical Data SmarTec S CLD 132 10.6 Mechanical construction Design, dimensions Separate transmitter with L x W x D: 225 x 142 x 109 mm / mounting plate: 8.86 x 5.59 x 4.29" Compact transmitter MV1, CS1, L x W x D: 225 x 142 x 242 mm / GE1, SMS versions: 8.86 x 5.59 x 9.53"...
Page 73: Documentation
SmarTec S CLD 132 Technical Data Permissible temperature ranges of SmarTec S CLD 132 [°F] [°F] [° C] –10 [° C] –5 Medium temperature C07-CLD132xx-05-06-00-en-013.eps ˆ}°Ê{£’Ê BiÀ“ˆÃÃˆviÊÌi“«iÀbÌÕÀiÊÀb˜}iÃÊœvÊE“bÀGi†ÊEÊ)Ê£ÎÓ Á )EÊxÓÊÃi˜ÃœÀÊÜˆÌ…ÊÃi«bÀbÌiÊÛiÀÃˆœ˜ É œ“«b†ÌÊÛiÀÃˆœ˜ Ã…œÀÌ‡ÌiÀ“ÊvœÀÊÃÌiÀˆˆÃbÌˆœ˜ÊÊÎäÊ“ˆ˜® Pressure-temperature load curve of CLS 52 sensor [°F] –5...
Page 74: Appendix
Appendix SmarTec S CLD 132 Appendix Operating matrix Entry of α Entry of correct Display of calculated Calibration Entry of value of calibration temperature conductivity value of installation factor calibration solution (if B1 = fixed) calibration solution InstF 2.10 %/K...
Page 75 SmarTec S CLD 132 Appendix Store Display of calibration results calibration status ; no; new o.k.; E--- C136 C135 Display of Store calibration status calibration results o.k.; ; no; new E--- C125 C126 Entry of installation factor Entry of measured value damping 01 ...
Page 76 Appendix SmarTec S CLD 132 Selection of contact Function group Selection of Selection of contact Pickup delay Dropout delay switch-on point function switch-off point setting RELAY setting (with MRS only) Alarm 2000 mS/cm; 99.99 % 2000 mS/cm; 99.99 % entire meas. range Limit;...
Page 77 SmarTec S CLD 132 Appendix Selection of Switch simulation simulation on or off (only if R1 = limit) (only if R6 = manual) auto manual Entry of Output α temperature coefficient table status o.k. (y value) ; no 2.10 %/K 0.00 ...
Page 78: Index
Concentration measurement....41 SmarTec S CLD 132 ..... . 53 Configuration.
Page 79 SmarTec S CLD 132 Quick setup....... . 29 Relay configuration ......37 Remote measuring range switching .
Page 80 SmarTec S CLD 132 Endress+Hauser...
Page 81 'HFODUDWLRQ RI FRQWDPLQDWLRQ Dear customer, Because of legal determinations and for the safety of our employees and operating equipment we need this “Declaration of contamination” with your signature before your order can be handled. Please put the completely filled in declaration to the instrument and to the shipping documents in any case. Add also safety sheets and/or specific handling instructions if necessary.
Page 82 Mexico – México, D.F Croatia – Zagreb Tel. (3) 94 40 80, Fax (9) 54 80 38 ❑ Endress+Hauser (México), S.A. de C.V. ❑ Endress+Hauser GmbH+Co. Sweden – Sollentuna Tel. (5) 5 55 68 24 07, Fax (5) 5 55 68 74 59 Malaysia –...
