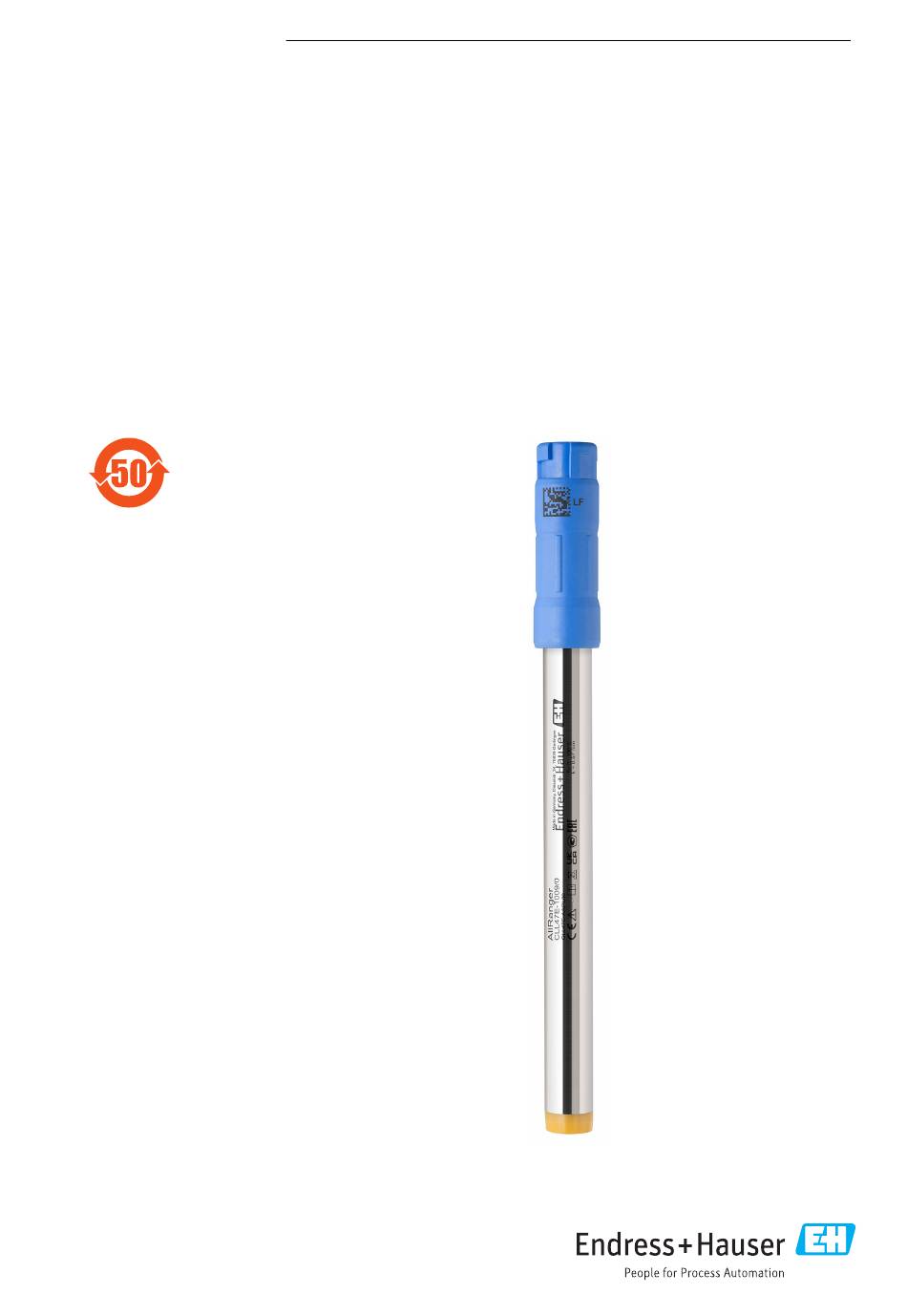

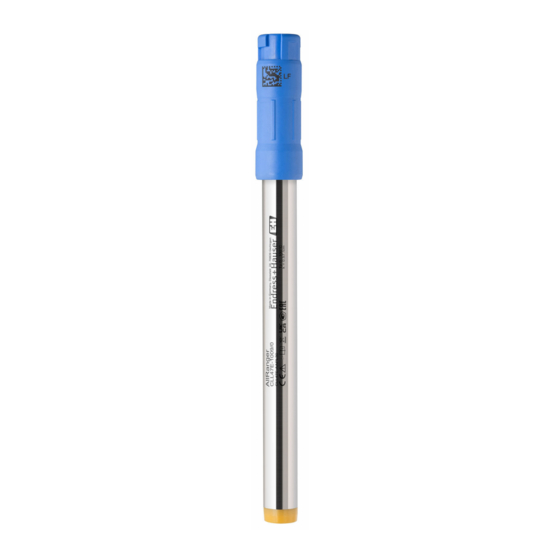

- Page 1 Products Solutions Services BA02216C/07/EN/01.21-00 71558607 2021-11-30 Operating Instructions Memosens CLL47E Contacting conductivity sensor for laboratory measurements and random sampling in the field Digital with Memosens 2.0 technology...
-
Page 2: Table Of Contents
Table of contents Memosens CLL47E Table of contents About this document ... 3 Warnings ......3 Symbols . -
Page 3: About This Document
Result of a step Documentation The following manuals, which complement these Operating Instructions, can be found on the product pages on the Internet: Technical Information Memosens CLL47E, TI01666C Operating Instructions Liquiline Mobile CML18, BA02002C Operating Instructions Memobase Plus CYZ71D, BA00502C Endress+Hauser... -
Page 4: Basic Safety Instructions
Intended use The Memosens CLL47E conductivity sensor is designed for the short-term measurement of low to high conductivity of liquids in laboratory or field environments. The Memosens CLL47E conductivity sensor is not intended for: •... -
Page 5: Product Safety
Memosens CLL47E Incoming acceptance and product identification Product safety The product is designed to meet state-of-the-art safety requirements, has been tested, and left the factory in a condition in which it is safe to operate. The relevant regulations and international standards have been observed. -
Page 6: Scope Of Delivery
The product structure is displayed in a popup window. Click the product overview. A new window opens. Here you fill information pertaining to your device, including the product documentation. Manufacturer address Endress+Hauser Conducta GmbH+Co. KG Dieselstraße 24 D-70839 Gerlingen Scope of delivery The scope of delivery includes: •... -
Page 7: Commissioning
Memosens CLL47E Commissioning 4.1.2 Connection to handheld device via M12 cable A0041681 Connect the M12 cable to the handheld device. A0041680 Insert the sensor into the Memosens connection of the M12 cable and lock into place. Commissioning For accurate, precise conductivity measurement: Check the temperature compensation and damping settings on the transmitter. -
Page 8: Maintenance
Maintenance Memosens CLL47E For measurement, calibration and adjustment: Follow the Operating Instructions for the transmitter. Operating Instructions Liquiline Mobile CML18, BA02002C Maintenance Cleaning the sensor CAUTION Corrosive chemicals Risk of chemical burns to the eyes and skin and risk of damage to clothing and equipment! ‣... -
Page 9: Sensor Calibration
(WEEE), the product is marked with the depicted symbol in order to minimize the disposal of WEEE as unsorted municipal waste. Do not dispose of products bearing this marking as unsorted municipal waste. Instead, return them to Endress+Hauser for disposal under the applicable conditions. -
Page 10: Accessories
Accessories Memosens CLL47E Accessories The following are the most important accessories available at the time this documentation was issued. ‣ For accessories not listed here, please contact your Service or Sales Center. Device-specific accessories Memosens laboratory cable CYK20 • For digital sensors with Memosens technology •... -
Page 11: Technical Data
Memosens CLL47E Technical data Memobase Plus CYZ71D • PC software to support laboratory calibration • Visualization and documentation of sensor management • Sensor calibrations stored in database • Product Configurator on the product page: www.endress.com/cyz71d Technical Information TI00502C Technical data Input 9.1.1... -
Page 12: Environment
Technical data Memosens CLL47E 9.2.2 Maximum measured error Conductivity In the range 5 µS/cm to 1 mS/cm ≤ 2 % of reading In the range 1 mS/cm to 200 mS/cm ≤ 4 % of reading Temperature ≤ 1.0 K, in measuring range 0 to 100 °C (32 to 212 °F) -
Page 13: Index
Memosens CLL47E Index Index Workplace safety ....4 Safety instructions ....4 Ambient temperature range . - Page 16 *71558607* 71558607 www.addresses.endress.com...
