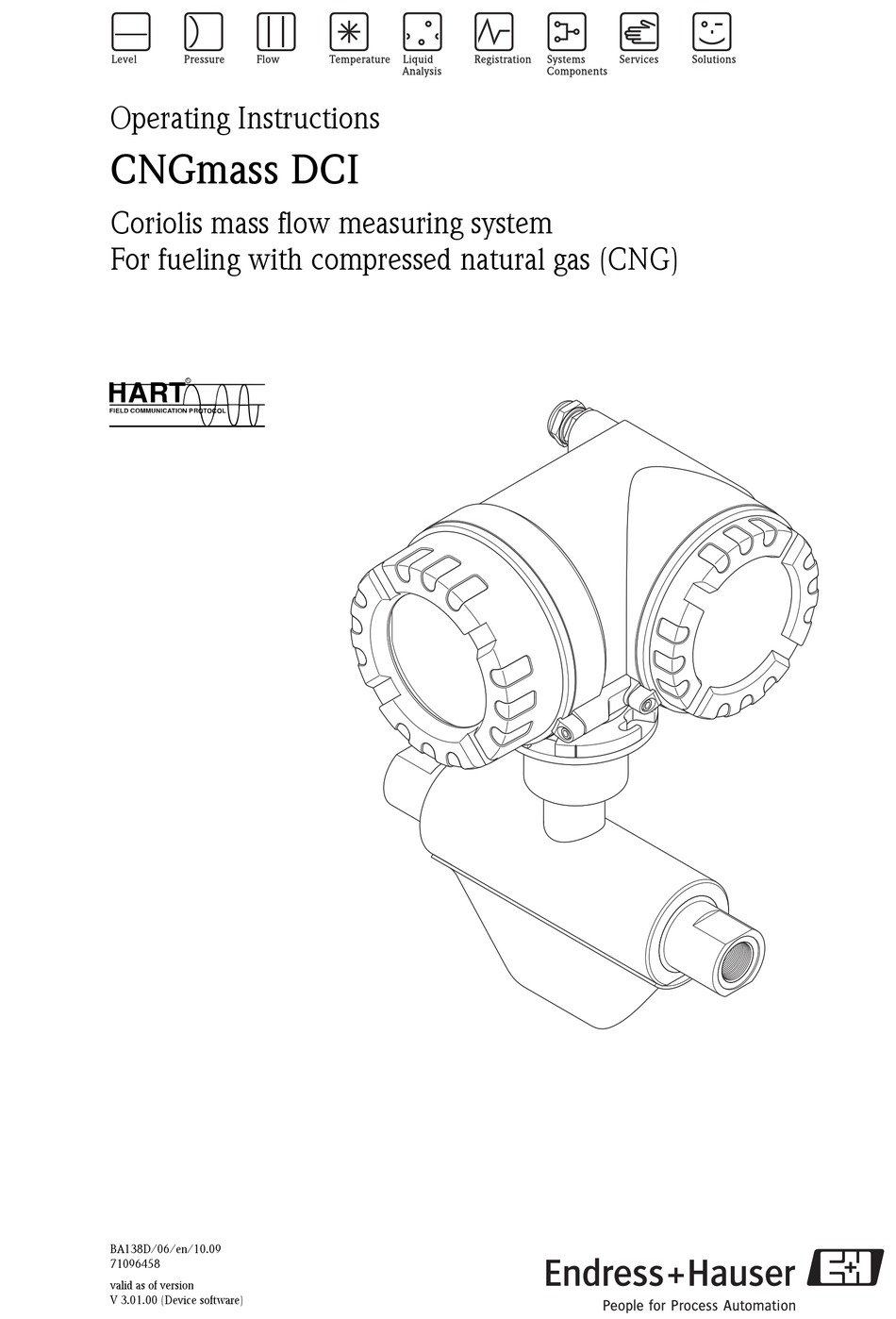

Operating Instructions
CNGmass DCI
Coriolis mass flow measuring system
For fueling with compressed natural gas (CNG)
6
BA138D/06/en/10.09
71096458
valid as of version
V 3.01.00 (Device software)

Advertisement

Table of Contents
loading

Related Manuals for Endress+Hauser CNGmass DCI

Summary of Contents for Endress+Hauser CNGmass DCI

  • Page 1 Operating Instructions CNGmass DCI Coriolis mass flow measuring system For fueling with compressed natural gas (CNG) BA138D/06/en/10.09 71096458 valid as of version V 3.01.00 (Device software)

  • Page 3: Table Of Contents

    CNGmass DCI Table of contents Table of contents Safety instructions ....5 Brief guide to the function matrix ....26 5.2.1...
  • Page 4 CNGmass DCI Table of contents Troubleshooting ....62 10.1 Troubleshooting instructions ....62 10.2 System error messages .

  • Page 5: Safety Instructions

    • Endress+Hauser will be happy to assist in clarifying the corrosion resistance properties of materials wetted by special fluids, including fluids used for cleaning. However, small changes of temperature, concentration or degree of contamination in the process can result in differences in corrosion resistance.

  • Page 6: Return

    Endress+Hauser: • Always enclose a duly completed "Declaration of Contamination" form. Only then can Endress+Hauser transport, examine and repair a returned device. • Enclose special handling instructions if necessary, for example a safety data sheet as per Regulation (EC) 1907/2006 REACH.

  • Page 7: Identification

    CNGmass DCI Identification Identification Device designation The "CNGmass DCI" flow measuring system consists of the following components: • Transmitter • Sensor Two versions are available: • Compact version: transmitter and sensor form a single mechanical unit. • Remote version: transmitter and sensor are installed separately.

  • Page 8: Nameplate Of The Sensor

    Identification CNGmass DCI 2.1.2 Nameplate of the sensor 4153 Reinach Switzerland PROMASS FP (CNGmass DCI) 8DF15-XXXXXXXXXXXX Order Code: 12345678901 2009 Ser. No.: ABCDEFGHJKLMNPQRST Ident No.: 1.0000 / -5 5P-CAL K-factor: 350bar / 5080psi (gauge) pnom = DN 15 - G3/4”...

  • Page 9: Nameplate For Connections

    CNGmass DCI Identification 2.1.4 Nameplate for connections active See operating manual passive Betriebsanleitung beachten normally open contact Observer manuel d'instruction normally closed contact XXXXXXXXXXX Ser.No.: L1/L+ Supply / Versorgung / N/L- Tension d'alimentation Active: 0/4...20mA, RL max. = 700 Ohm Passive: 4...20mA, max.

  • Page 10: Additional Sign - Position Of The Rupture Disk

    EMC requirements of IEC/EN 61326. The measuring system described in these Operating Instructions thus complies with the statutory requirements of the EC Directives. Endress+Hauser confirms successful testing of the device by affixing to it the CE mark.

  • Page 11: Installation

    CNGmass DCI Installation Installation Incoming acceptance, transport and storage 3.1.1 Incoming acceptance On receipt of the goods, check the following points: • Is the packaging or content damaged? • Is anything missing from the shipment and does the scope of supply match your order? 3.1.2...

  • Page 12: Installation Instructions

    Installation CNGmass DCI Installation instructions 3.3.1 Turning the transmitter housing Turning the aluminum field housing Warning! The turning mechanism in devices with EEx d/de or NEC/CEC Cl. I Div. 1 classification is not the same as that described here. The procedure for turning these housings is described in the Ex-specific documentation.

  • Page 13: Installing The Wall-Mount Housing

    CNGmass DCI Installation 3.3.2 Installing the wall-mount housing There are various ways of installing the wall-mount housing: • Mounted directly on the wall • Installation in control panel (separate mounting set, accessories) → ä 14 • Pipe mounting (separate mounting set, accessories) → ä 14 "...
  • Page 14 Installation CNGmass DCI Installation in control panel Prepare the opening in the panel → å 8. Slide the housing into the opening in the panel from the front. Screw the fasteners onto the wall-mount housing. Screw the threaded rods into the holders and tighten them until the housing is secured on the panel wall.

  • Page 15: Turning The Local Display

    CNGmass DCI Installation 3.3.3 Turning the local display Unscrew cover of the electronics compartment from the transmitter housing. Press the side latches on the display module and remove the module from the electronics compartment cover plate. Rotate the display to the desired position (max. 4 × 45° in both directions), and reset it onto the electronics compartment cover plate.

  • Page 16: Wiring

    Wiring Warning! When connecting Ex-certified devices, see the notes and diagrams in the Ex-specific supplement to these Operating Instructions. Please do not hesitate to contact your Endress+Hauser sales office if you have any questions. Note! The measuring device does not have an internal disconnecting device. Therefore, assign a switch or circuit breaker to the measuring device with which the voltage supply line can be disconnected from the power system.

  • Page 17: Connecting The Remote Version

    CNGmass DCI Wiring Connecting the remote version 4.2.1 Connecting cable for sensor/transmitter Warning! • Risk of electric shock. Switch off the power supply before opening the device. Do not install or wire the device while it is connected to the power supply.

  • Page 18: Connecting The Measuring Unit

    Wiring CNGmass DCI Connecting the measuring unit 4.3.1 Transmitter connection Warning! • Risk of electric shock. Switch off the power supply before opening the device. Do not install or wire the device while it is connected to the power supply.

  • Page 19: Terminal Assignment

    CNGmass DCI Wiring N (L-) L1 (L+) – – – – A0001135 Fig. 13: Connecting the transmitter (wall-mount housing), cable cross-section: max. 2.5 mm (14 AWG) Cable for power supply: 85 to 260 V AC, 20 to 55 V AC, 16 to 62 V DC –...

  • Page 20: Hart Connection

    Wiring CNGmass DCI 4.3.3 HART connection Users have the following connection options at their disposal: • Direct connection to transmitter by means of terminals 26 (+) / 27 (−) • Connection by means of the 4 to 20 mA circuit Note! •...

  • Page 21: Degree Of Protection

    • Remove all unused cable entries and insert plugs instead. • Do not remove the grommet from the cable entry. " Caution! Do not loosen the screws of the sensor housing, as otherwise the degree of protection guaranteed by Endress+Hauser no longer applies. Endress+Hauser...

  • Page 22: Post-Connection Check

    Wiring CNGmass DCI Post-connection check Perform the following checks after completing electrical installation of the measuring device: Device condition and specifications Notes Are cables or the device damaged (visual inspection)? – Electrical connection Notes Does the supply voltage match the specifications on the nameplate?

  • Page 23: Operation

    CNGmass DCI Operation Operation Display and operating elements The local display enables you to read all important parameters directly at the measuring point and configure the device using the "Quick Setup" or the function matrix. The display consists of four lines; this is where measured values and/or status variables (direction of flow, empty pipe, bar graph etc.) are displayed.

  • Page 24: Readings Displayed (Operation Mode)

    Operation CNGmass DCI 5.1.1 Readings displayed (operation mode) The display area consists of three lines in all; this is where measured values are displayed, and/or status variables (direction of flow, bar graph etc.). You can change the assignment of display lines to different variables to suit your needs and preferences (È...

  • Page 25: Icons

    CNGmass DCI Operation 5.1.3 Icons The icons which appear in the field on the left make it easier to read and recognize measured variables, device status, and error messages. Icon Meaning Icon Meaning System error Process error Fault message Notice message...

  • Page 26: Brief Guide To The Function Matrix

    Operation CNGmass DCI Brief guide to the function matrix Note! • See the general notes → ä 27 • Function descriptions → see the "Description of Device Parameters" manual HOME position → F → Entry into the function matrix Select a block (e.g. OUTPUTS) Select a group (e.g.

  • Page 27: General Notes

    • If programming is disabled and the P operating elements are pressed in any function, a prompt for the code automatically appears on the display. • If "0" is entered as the customer's code, programming is always enabled! • Your Endress+Hauser representative can be of assistance if you mislay your personal code. " Caution! Changing certain parameters such as all sensor characteristics, for example, influences numerous functions of the entire measuring system, particularly measuring accuracy.

  • Page 28: Error Messages

    Operation CNGmass DCI Error messages 5.3.1 Type of error Errors that occur during commissioning or measuring are displayed immediately. If two or more system or process errors occur, the error with the highest priority is the one shown on the display.

  • Page 29: Confirming Error Messages

    CNGmass DCI Operation 5.3.3 Confirming error messages For the sake of plant and process safety, the measuring device can be configured in such a way that fault messages displayed ($) always have to be rectified and acknowledged locally by pressing F.

  • Page 30: Operating Options

    The Fieldcheck tester/simulator is used for testing flowmeters in the field. When used in conjunction with the FieldCare software package, test results can be imported into a database, printed out and used for official certification. Contact your Endress+Hauser representative for more information.

  • Page 31: Device And Process Variables

    The response consists of a 12-byte device ID: – Byte 0: Fixed value 254 – Byte 1: Manufacturer ID, 17 = Endress+Hauser – Byte 2: Device type ID, e.g. 85 = CNGmass DCI – Byte 3: Number of preambles – Byte 4: Universal commands rev. no.
  • Page 32 – Byte 0: Fixed value 254 – Byte 1: Manufacturer ID, 17 = Endress+Hauser – Byte 2: Device type ID, 85 = CNGmass DCI – Byte 3: Number of preambles – Byte 4: Universal commands rev. no.
  • Page 33 – Bytes 7-10: Start of measuring range, value for 4 mA – Bytes 11-14: Attenuation constant in [s] – Byte 15: Write protection ID – Byte 16: OEM manufacturer ID, 17 = Endress+Hauser Factory setting: Primary process variable = Mass flow Note! •...
  • Page 34 Operation CNGmass DCI Common Practice Commands Command No. Command data Response data HART command / Access type (numeric data in decimal form) (numeric data in decimal form) Write damping value for primary Bytes 0-3: Damping value of the primary Displays the current damping value in the device:...
  • Page 35 CNGmass DCI Operation Common Practice Commands Command No. Command data Response data HART command / Access type (numeric data in decimal form) (numeric data in decimal form) Read assignment of the device none Display of the current variable assignment of the process variables: variables to the four process –...

  • Page 36: Device Status/Error Messages

    Operation CNGmass DCI 5.4.5 Device status/Error messages You can read the extended device status, in this case, current error messages, via Command "48". The command delivers bit-encoded information (È table below). Note! For a detailed explanation of the device status and error messages and their elimination, see →...
  • Page 37 CNGmass DCI Operation Short error description → ä 62 Byte-bit Error No. Current output: The actual value for the flow lies outside the set limits. Frequency output: The actual value for the flow lies outside the set limits. Pulse output: Pulse output frequency is out of range.
  • Page 38 Operation CNGmass DCI Short error description → ä 62 Byte-bit Error No. 14-7 15-0 Simulation current output active 15-1 15-2 15-3 15-4 Simulation frequency output active 15-5 15-6 15-7 16-0 Simulation pulse output active 16-1 16-2 16-3 16-4 Simulation status output active...

  • Page 39: Switching Hart Write Protection On And Off

    CNGmass DCI Operation 5.4.6 Switching HART write protection on and off A jumper on the I/O board provides the means of switching HART write protection on or off. Warning! Risk of electric shock. Exposed components carry dangerous voltages. Make sure that the power supply is switched off before you remove the cover of the electronics compartment.

  • Page 40: Commissioning

    Commissioning CNGmass DCI Commissioning Function check Make sure that all the final checks have been completed before commissioning the measuring point: • Checklist for "Post-installation check" → ä 15. • Checklist for "Post-connection check" → ä 22. Switching on the measuring device If the post-connection checks have been performed, the supply voltage can be switched on.

  • Page 41: Quick Setup

    CNGmass DCI Commissioning Quick Setup In the case of measuring devices without a local display, the individual parameters and functions must be configured via the configuration program, e.g. FieldCare. If the measuring device is equipped with a local display, all the important device parameters for standard operation can be configured quickly and easily by means of the "Commissioning"...
  • Page 42 Commissioning CNGmass DCI 1002 Quick Setup XXX.XXX.XX Setup Inbetriebnahme 2000 Sprache HOME POSITION Einstellvorgaben Auswahl der Einstellvorgaben Werksauslieferung Aktuelle Einstellung Auswahl der Systemeinheit Temperatur Massefluss Volumenfluss Normvol.-fluss Dichte Beenden 0400 0402 0404 0420 0422 Einheit Einheit Einheit Einheit Einheit Temperatur...

  • Page 43: Quick Setup "Pulsating Flow

    CNGmass DCI Commissioning 6.3.2 Quick Setup "Pulsating Flow" Note! The "Pulsating Flow" Quick Setup is only available if the device has a current output or a pulse/ frequency output. Certain types of pump such as reciprocating, peristaltic and cam-type pumps, for example, create a flow characterized by severe periodic fluctuations.
  • Page 44 Commissioning CNGmass DCI Performing the "Pulsating flow" Quick Setup This Quick Setup menu guides you systematically through the setup procedure for all the device functions that have to be parameterized and configured for measuring pulsating flows. Note that this has no effect on values configured beforehand, such as measuring range, current range or full scale value.
  • Page 45 CNGmass DCI Commissioning Note! • The display returns to the function QUICK SETUP PULSATING FLOW (1003) if you press the Q key combination. • You can call up the Setup menu either directly from the "COMMISSIONING" Quick Setup menu or manually by means of the function QUICK SETUP PULSATING FLOW (1003).

  • Page 46: Quick Setup "Gas Measurement

    Commissioning CNGmass DCI 6.3.3 Quick Setup "Gas measurement" The measuring device is not only suitable for measuring liquid flow. Direct mass measurement based on the Coriolis principle is also possible for measuring the flow rate of gases. Note! • Before carrying out the Quick Setup "Gas measurement", the Quick Setup "Commissioning" has to be executed →...
  • Page 47 CNGmass DCI Commissioning Quick Setup "Gas measurement" HOME position → F → MEASURED VARIABLE (A) MEASURED VARIABLE → O → QUICK SETUP (B) QUICK SETUP → N → QS-GAS MEASUREMENT (1004) Setting to be selected ( P ) Function No.

  • Page 48: Data Back-Up/Transfer

    Commissioning CNGmass DCI 6.3.4 Data back-up/transfer You can use the T-DAT SAVE/LOAD function to transfer data (device parameters and settings) between the T-DAT (removable memory) and the EEPROM (device memory). This is required for the following applications: • Creating a backup: current data are transmitted from an EEPROM to the T-DAT.

  • Page 49: Configuration

    CNGmass DCI Commissioning Configuration Warning! In the case of explosion-protected equipment, observe a cooling or discharge time of 10 minutes before opening the device. 6.4.1 Current output: active/passive The current outputs are configured as "active" or "passive" by means of various jumpers on the I/O board or the current submodule.

  • Page 50: Pulse/Frequency Outputs 1 And 2

    Commissioning CNGmass DCI 6.4.2 Pulse/frequency outputs 1 and 2 The configuration of the pulse/frequency outputs with line monitoring "On" or "Off" takes place by means of various jumpers on the pulse/frequency output submodule. Warning! Risk of electric shock. Exposed components carry dangerous voltages.

  • Page 51: Relay Contacts: Normally Closed/Normally Open

    CNGmass DCI Commissioning 6.4.3 Relay contacts: Normally closed/Normally open The relay contact can be configured as normally open (NO or make) or normally closed (NC or break) contacts by means of two jumpers on the I/O board or on the pluggable submodule. This configuration can be called up at any time with the ACTUAL STATUS RELAY (4740) function.

  • Page 52: Adjustment

    The zero point obtained in this way is printed on the nameplate. Calibration takes place under reference operating conditions → ä 79. Consequently zero point adjustment is generally not necessary for CNGmass DCI! Experience shows that the zero point adjustment is advisable only in special cases: •...

  • Page 53: Memory (Historom)

    – Repeatedly press and release the Esc key (X). Memory (HistoROM) At Endress+Hauser, the term HistoROM refers to various types of data storage modules on which process and measuring device data are stored. By unplugging and plugging such modules, device configurations can be duplicated onto other measuring devices, to cite just one example.

  • Page 54: Custody Transfer Measurement

    Custody transfer measurement CNGmass DCI Custody transfer measurement CNGmass DCI is a flowmeter that is suitable for custody transfer measurement. Suitability for custody transfer measurement, approval by the Standards Authorities, repeated calibration due to legal metrology controls Only once it has been approved by the authority for legal metrology controls may the measuring device be regarded as verified and used for applications subject to legal metrology controls.

  • Page 55: Definition Of Terms

    (repairers) the authority to mark repaired devices (repairer mark) if they have the equipment necessary for repair and adjustment and have properly trained specialist staff. Endress+Hauser is authorized to carry out repair work on verified measuring devices. Adjust Adjustment on site (zero point, density) under operating conditions.

  • Page 56: Verification Process

    Custody transfer measurement CNGmass DCI Verification process 7.3.1 Setting up custody transfer mode The measuring device has to be operational and not set to custody transfer mode. Configure the functions important for custody transfer measurement, such as the output configuration, custody transfer variable and the measuring mode.
  • Page 57 CNGmass DCI Custody transfer measurement A0011835 Fig. 31: Examples of how to seal the various device versions. Endress+Hauser...

  • Page 58: Disabling Custody Transfer Mode

    Custody transfer measurement CNGmass DCI 7.3.2 Disabling custody transfer mode The measuring device has to be operational and already set to custody transfer mode. Disconnect the device from the operating voltage. Remove the custody transfer seals. Warning! In the case of explosion-protected equipment, observe a cooling or discharge time of 10 minutes before opening the device.

  • Page 59: Maintenance

    CNGmass DCI Maintenance Maintenance No special maintenance work is required. External cleaning When cleaning the exterior of measuring devices, always use cleaning agents that do not attack the surface of the housing and the seals. Endress+Hauser...

  • Page 60: Accessories

    Accessories CNGmass DCI Accessories Various accessories, which can be ordered separately from Endress+Hauser, are available for the transmitter and the sensor. Detailed information on the order code in question can be obtained from your Endress+Hauser representative. Measuring principle-specific accessories Accessory...
  • Page 61 Accessory Description Order code È Product page on the FieldCare FieldCare is Endress+Hauser’s FDT-based plant asset management tool and allows the configuration and diagnosis of Endress+Hauser website: intelligent field devices. By using status information, you also www.endress.com have a simple but effective tool for monitoring devices. The Proline flowmeters are accessed via a service interface or via the service interface FXA193.

  • Page 62: Troubleshooting

    Troubleshooting CNGmass DCI Troubleshooting 10.1 Troubleshooting instructions Always start troubleshooting with the following checklist if faults occur after commissioning or during operation. The routine takes you directly to the cause of the problem and the appropriate remedial measures. Check the display 1.

  • Page 63: System Error Messages

    Caution! In the event of a serious fault, a flowmeter might have to be returned to the manufacturer for repair. Follow the important procedures before returning the flowmeter to Endress+Hauser → ä 6. Always enclose a duly completed "Declaration of Contamination" form. You will find a preprinted blank of this form at the back of this manual.
  • Page 64 Troubleshooting CNGmass DCI Error message / Type Cause Remedy / spare part 042 S: TRANSM. SW DAT Sensor DAT: 1. Check whether the T-DAT is correctly plugged into the amplifier board → ä 71 or → ä 73. $: # 042 Error accessing the calibration values stored in the S- DAT.
  • Page 65 2 . 10 Hz a0004437 3. Reduce flow. S: FREQ. LIM The measuring tube oscillation frequency is outside the Contact your Endress+Hauser representative. $: # 379…380 permitted range. Causes: – Change the upper or lower limit setting, as applicable. – Increase or reduce flow, as applicable.
  • Page 66 Troubleshooting CNGmass DCI Error message / Type Cause Remedy / spare part No. # 5xx → Application error S: SW.-UPDATE ACT. New amplifier or communication (I/O module) software Wait until process is finished. !: # 501 version is loaded. Currently no other functions are The device will restart automatically.

  • Page 67: Process Error Messages

    CNGmass DCI Troubleshooting 10.3 Process error messages Process errors can be defined as either "Fault" or "Notice" messages and can thereby be weighted differently. You can define messages in this way with the aid of the function matrix ( → "Description of Device Parameters" manual).

  • Page 68: Process Errors Without Messages

    – Nameplate specifications: order code and serial number → ä 7 Return the devices to Endress+Hauser Make sure you carry out the procedures listed before a flowmeter is returned to Endress+Hauser for repair or calibration → ä 6. Always enclose a duly completed "Declaration of Contamination" form with the flowmeter. You will find a master copy of the Dangerous Goods Sheet at the back of these Operating Instructions.

  • Page 69: Response Of Outputs To Errors

    CNGmass DCI Troubleshooting 10.5 Response of outputs to errors Note! The failsafe mode of totalizers, current, pulse and frequency outputs can be customized by means of various functions in the function matrix. Detailed information È "Description of Device Parameters" manual.

  • Page 70: Spare Parts

    → å 32. Note! Spare parts can be ordered directly from your Endress+Hauser representative by providing the serial number printed on the transmitter's nameplate (→ ä 7). Spare parts are shipped as sets comprising the following parts: •...

  • Page 71: Removing And Installing Printed Circuit Boards

    " Caution! Use only original Endress+Hauser parts. Installing and removing the boards → å 33: Unscrew cover of the electronics compartment from the transmitter housing. Remove the local display (1) as follows: –...
  • Page 72 Troubleshooting CNGmass DCI A0006364 Fig. 33: Field housing: removing and installing printed circuit boards Local display Latch Ribbon cable (display module) Screws of electronics compartment cover Aperture for installing/removing boards Power unit board Amplifier board Signal cable (sensor) Excitation current cable (sensor)
  • Page 73 " Caution! Use only original Endress+Hauser parts. Installing and removing the boards → å 34: Remove the screws and open the hinged cover (1) of the housing. Remove the screws securing the electronics module (2). Then push up electronics module and pull it as far as possible out of the wall-mount housing.
  • Page 74 Troubleshooting CNGmass DCI A0006365 Fig. 34: Wall-mount housing: removing and installing printed circuit boards Housing cover Electronics module Ribbon cable (display module) Screws of electronics compartment cover Aperture for installing/removing boards Power unit board Amplifier board Signal cable (sensor) Excitation current cable (sensor)

  • Page 75: Replacing The Device Fuse

    – Power supply 85 to 260 V AC → 0.8 A slow-blow / 250 V; 5.2 × 20 mm – Ex-rated devices → Ex documentation Installation is the reverse of the removal procedure. " Caution! Use only original Endress+Hauser parts. A0001148 Fig. 35: Replacing the device fuse on the power unit board Protective cap...

  • Page 76: Return

    Troubleshooting CNGmass DCI 10.7 Return → ä 6 10.8 Disposal Observe the regulations applicable in your country. 10.9 Software history Date Software version Changes to software Operating Instructions 01.2010 3.01.00 Original software 71096458/ 10.09 Endress+Hauser...

  • Page 77: Technical Data

    CNGmass DCI Technical data Technical data 11.1 Technical data at a glance 11.1.1 Applications → ä 5 11.1.2 Function and system design Measuring principle Mass flow measurement by the Coriolis principle → ä 7 Measuring system 11.1.3 Input Measured variable •...

  • Page 78: Output

    Technical data CNGmass DCI 11.1.4 Output Output signal Current output Active/passive selectable, galvanically isolated, time constant selectable (0.05 to 100 s), full scale value selectable, temperature coefficient: typically 0.005% o.f.s. / °C, resolution: 0.5 μA ≥ 250 Ω • Active: 0/4 to 20 mA, R ≥...

  • Page 79: Power Supply

    CNGmass DCI Technical data 11.1.5 Power supply → ä 16 Electrical connections Supply voltage 85 to 260 V AC, 45 to 65 Hz 20 to 55 V AC, 45 to 65 Hz 16 to 62 V DC Cable entries Power supply and signal cables (inputs/outputs): •...

  • Page 80: Operating Conditions: Installation

    Technical data CNGmass DCI 11.1.7 Operating conditions: Installation → ä 11 Installation instructions Connection cable length, Max. 20 m (max. 66 ft) remote version → ä 8 System pressure 11.1.8 Operating conditions: Environment Ambient temperature range Sensor and transmitter: • Standard: –20 to +60 °C (–4 to +140 °F) •...

  • Page 81: 11.1.10 Mechanical Construction

    CNGmass DCI Technical data 11.1.10 Mechanical construction Design / dimensions The dimensions and lengths of the sensor and transmitter are provided in the separate "Technical Information" document on the measuring device in question. This can be downloaded as a PDF file from www.endress.com.

  • Page 82: 11.1.11 Human Interface

    CE mark The measuring system is in conformity with the statutory requirements of the EC Directives. Endress+Hauser confirms successful testing of the device by affixing to it the CE mark. C-tick mark The measuring system meets the EMC requirements of the Australian Communications and Media Authority (ACMA).

  • Page 83: 11.1.13 Ordering Information

    CNGmass DCI Technical data 11.1.13 Ordering information The Endress +Hauser service organization can provide detailed ordering information and information on the order code. 11.1.14 Accessories/spare parts → ä 60 11.1.15 Documentation ❑ Flow measurement (FA005D/06) ❑ Description of Device Parameters (GP001D/06) ❑...

  • Page 84: Index

    CNGmass DCI Index Index Device parameters See "Description of Device Parameters" manual Accessories........60 Disposal .
  • Page 85 CNGmass DCI Index Language groups ....... . 82 Quick Setup Length of connecting cable .
  • Page 86 CNGmass DCI Index Endress+Hauser...
  • Page 87 Erklärung zur Kontamination und Reinigung Please reference the Return Authorization Number (RA#), obtained from Endress+Hauser, on all paperwork and mark the RA# clearly on the outside of the box. If this procedure is not followed, it may result in the refusal of the package at our facility.
  • Page 88 www.endress.com/worldwide BA138D/06/en/10.09 71096458 FM+SGML6.0 ProMoDo...
