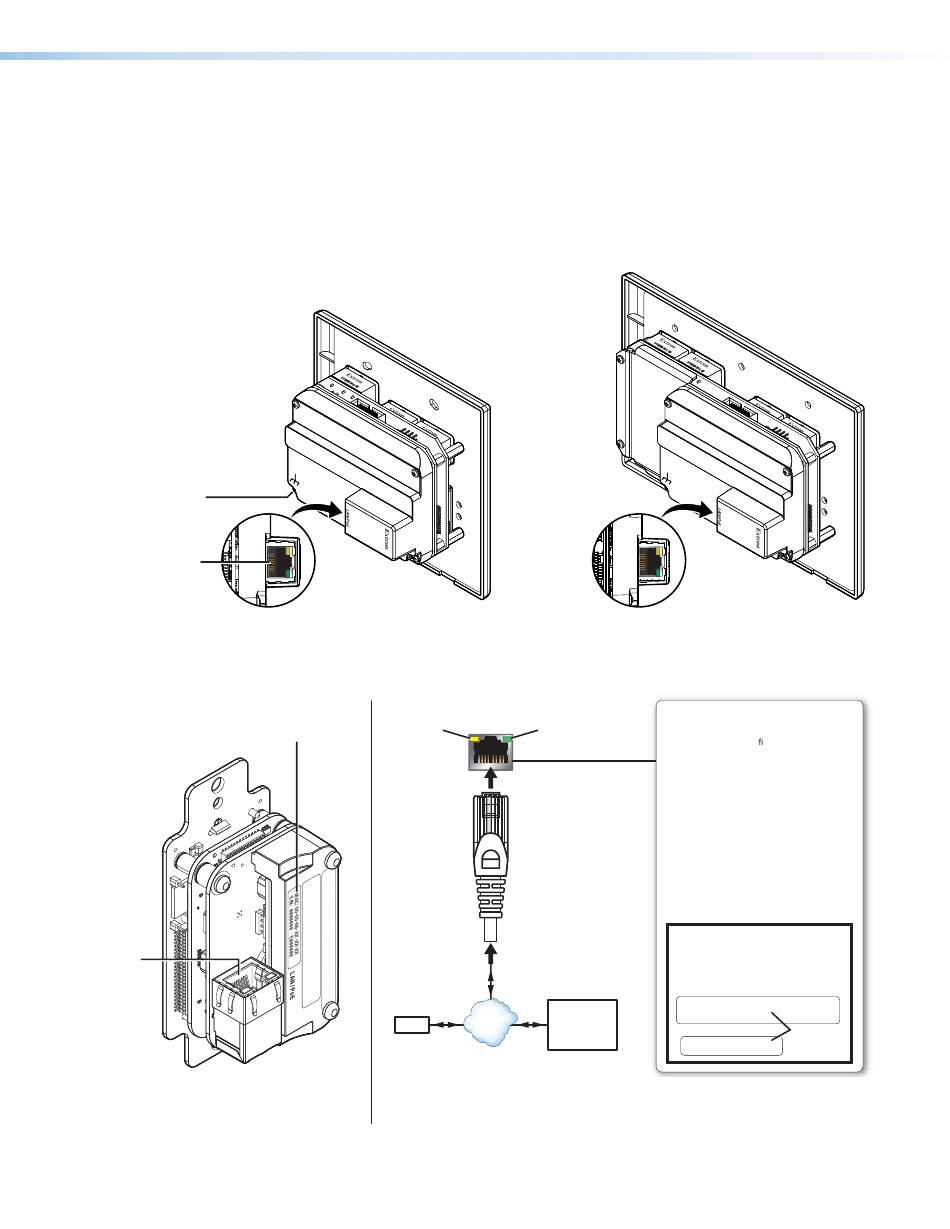

Rear and Side Panel Features and Cabling (Decorator-style and US Gang Models)
LAN (Ethernet) and PoE connector and LEDs — Connect the unit to a network via this
connector for control and Power over Ethernet. Use the following diagrams as a guide.
Network connection lets you configure the control system and the NBP. For details of
communication protocols, ports, and services used, see the Pro Series Control Product
Network Ports and Licenses Guide, part 68-2961-01, available at www.extron.com.
All NBP one-gang decorator-style models have identical rear panel features.
Grounding
Screw
LAN/PoE
(Ethernet)
connector
and LEDs
Side View
Figure 15.
MAC Address
LAN/PoE
(Ethernet)
connector
and LEDs
Figure 16.
Rear Panel Features —
Decorator-style NBPs
Network Button Panels • Hardware Features and Installation — Wall-mountable Models
e
NBP 50,
NBP 100
Rear Panel
Rear Panel Features — US Gang Models
NBP Rear Panel
Activity LED:
LAN/PoE
Blinks
amber to
indicate data
is being sent
or received.
Ethernet
TCP/IP
PC
Network
Figure 17.
LAN/PoE Port Details
Side View
Link LED: Lights
Connect to an Ethernet network.
green to indicate a
This port must be con gured.
network connection.
Default protocol:
• NBP address: 192.168.254.253
• Gateway IP address: 0.0.0.0
• Subnet mask: 255.255.255.0
• DNS address: 127.0.0.1
• DHCP: off
• Link speed and duplex level: autodetected
• Data rates: 10/100Base-T
RJ-45
Connector
Power over Ethernet (PoE):
The NBP receives power at this port.
Default login credentials:
• Username: admin
• Initial password: unit serial number
• Password after a "Reset to Factory
Defaults": extron
NOTE:
(00-05-A6-XX-XX-XX) is located
on the rear of each decorator-style
enclosure and on the front of each
US gang enclosure.
00-05-A6-XX-XX-XX
Extron
MAC: 00-05-A6-XX-XX-XX
IPCP Pro
S/N: XXXXXXX EXXXXXX
Control
Processor
MAC: 00-05-A6-XX-XX-XX
S/N: XXXXXXX EXXXXXX
NBP 200
Rear Panel
LAN/PoE (Ethernet and
Power Over Ethernet)
MAC address information
MAC
Address
16
