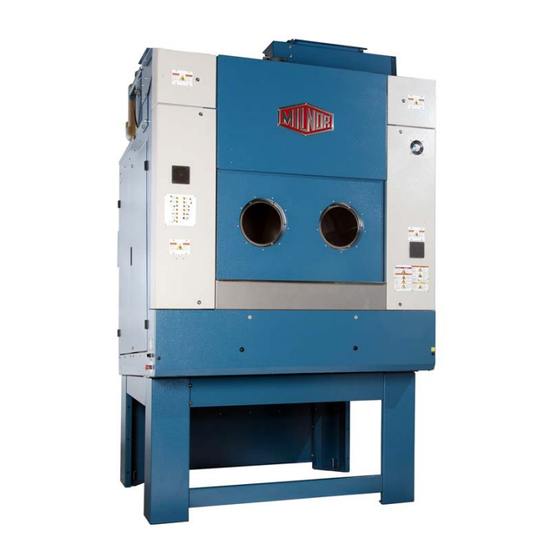

- Page 1 Published Manual Number/ECN: MAI6450ACE/2022285A • Publishing System: TPAS2 • Access date: 07/07/2022 • Document ECNs: Latest Installation 6450 TG1L/R (AH) PELLERIN MILNOR CORPORATION POST OFFICE BOX 400, KENNER, LOUISIANA 70063-0400, U.S.A.
- Page 3 Air and Duct Requirements for Milnor® Pass-through BNDDUI01/2022242 Utility Requirements For Gas, Steam and Thermal Oil Dryers BNDUUI01/2019285A Set the Heating System—Air Heat Dryer BNDGUM01/2022223A About the Steam and Hot Oil Control System for Milnor Dryers MSSM0102BE/2003123V 3. Installation Drawings Dimensional Drawing - 6450TG1L AH BD6450TG1LA1AE/2022086D...
- Page 5 (unless the time period is specifically extended for certain parts pursuant to a specific MILNOR published extended warranty) from our factory with no operating hour limitation. This warranty is contingent upon the equipment being installed, operated and serviced as specified in the operating manual supplied with the equipment, and operated under normal conditions by competent operators.
- Page 6 • If the component is an electrical component, give the schematic number if known. • If the component is a motor or an electrical control, give the nameplate data from the used component. To write to the Milnor factory: Pellerin Milnor Corporation Post Office Box 400...
- Page 7 BNUUUU02 / 2021104A BNUUUU02 0000158094 3/3/21 9:47 AM Released Trademarks BNUUUU02.R01 0000158093 F.2 E.2 3/3/21 9:47 AM Released These words are trademarks of Pellerin Milnor Corporation and other entities: ® Table 1. Trademarks AutoSpot™ GreenFlex™ MilMetrix PulseFlow ® ® GearTrace™...
- Page 9 Safety...
- Page 10 The owner/user must familiarize himself with the contents of all machine instruction manuals. The owner/user should direct any questions about these instructions to a Milnor® dealer or the Milnor® Service department.
- Page 11 The Safety Guide and other machine manuals must be available at all times to the appropriate personnel. See the machine service manual for safety placard part numbers. Contact the Milnor Parts department for replacement placards or manuals. Maintenance —Ensure the machine is inspected and serviced in accordance with the norms of 1.5.
- Page 12 They can produce explosive fumes when heated. • Do not use flammable solvents in processing. • Do not load machine with goods containing dry cleaning materials. • Do not use the machine in the presence of solvent fumes. PELLERIN MILNOR CORPORATION...
- Page 13 • Verify the overheat control system and plant fire extinguishers are functioning before operating the machine. Be sure to turn water supply on after testing. • Keep the manual shut-off test valve open except when testing. • Test or inspect the system after every automatic actuation, or monthly. PELLERIN MILNOR CORPORATION...
- Page 14 These components move automatically. • Do not service the machine unless qualified and authorized. You must clearly understand the hazards and how to avoid them. PELLERIN MILNOR CORPORATION...
- Page 15 Hazards include but are not limited to panic, burns, poisoning, suffocation, heat prostration, biological contamination, electrocution, and crushing. • Do not enter the cylinder until it has been thoroughly purged, flushed, drained, cooled, and immobilized. — End of BIUUUS27 — PELLERIN MILNOR CORPORATION...
- Page 16 Paper tags on the machine provide installation guidelines and precautions. The tags can be tie-on or adhesive. You can remove tie-on tags and white, adhesive tags after installation. Yellow adhesive tags must remain on the machine. PELLERIN MILNOR CORPORATION...
- Page 17 Read the manuals before proceeding. This symbol appears on most tags. The machine ships with safety, operator, and routine maintenance guides for customer use. Milnor dealer manuals for installing, servicing, and commissioning this machine are also available from the Milnor Parts department.
- Page 18 B2T2007003: Install the shuttle rail in accordance with this instruction and the installation manual. B2T2014022: This control box is mounted here for shipping purposes only. (Only used on 64" and 76" gas and steam dryers with a blower inverter.) — End of BIUUUI02 — PELLERIN MILNOR CORPORATION...
- Page 19 Installation...
- Page 20 ATTENTION INSTALLERS! FLOOR IS UNEVEN Establish System Zero Line or Z. Find highest point in factory floor where footpads will be located. System Zero Line or Z is 1” above highest point. DRYER FEET MUST TO NEXT MOVE TO FOOTPAD FOOTPAD LOCATIONS BE GROUTED MARK...
- Page 21 Do not hesitate to file a claim with the carrier if the machine has been damaged in any way during shipment. Milnor® will be glad to assist you in filing your claim, but is not responsible for shipping damage to the machine once it has been delivered to the carrier in good condition.
- Page 22 Dryer Assembly and Setting Figure 1: Front Lifting Bracket Figure 2: Rear Lifting Bracket Figure 3: Spreader Bar Between Front Lifting Plates Figure 4: Apply sealing foam to left house before setting into position PELLERIN MILNOR CORPORATION...
- Page 23 (see the dimensional drawing). It is occasionally possible to reduce the overall dimensions by removing piping and by other special modifications. Consult the Milnor factory for more information. • Provide sufficient clearance around machine for normal operation and maintenance procedures.
- Page 24 Consult Milnor if any obstruction prevents the installation of any anchor bolts. Anchor bolts cannot be indiscriminately omitted.
- Page 25 —Check the interior of the perforated cylinder for smoothness Check Cylinder Interior 3.5. before placing the machine in service. Milnor cannot accept claims for damage to the cylinder's smooth finish after the machine has been placed in service. — End of BIPD6I02 —...
- Page 26 BMP040074/2020414A Page (1 / 2) Lifting Brackets 5040TG2L/R,TS2L/R, 5050TG1L/R,TS1L/R, 6450TG1L/R 6458TG1L/R,TS1L/R, 6464TG1L/R,TS1L/R, 7272TG1L/R,TS1L/R, 7676TG1L/R 8282TG1L/R Figure 1: 5040, 5050, 6450, 6458, 6464, 7272,7676, and 8282 Dryers (7676 Shown) 5,6,7 Typical Lifting Bracket Hardware 7676TG1L shown Figure 2: 8282 Dryers (Typical)
- Page 27 BMP040074/2020414A Page (2 / 2) Lifting Brackets 5040TG2L/R,TS2L/R, 5050TG1L/R,TS1L/R, 6450TG1L/R 6458TG1L/R,TS1L/R, 6464TG1L/R,TS1L/R, 7272TG1L/R,TS1L/R, 7676TG1L/R 8282TG1L/R Parts List—Lifting Brackets Find the correct assembly first, then find the needed components. The item letters (A, B, C, etc.) assigned to assemblies are referred to in the "Used In"...
- Page 28 4,5,6 TYPICAL 3 SHIM Lifting brackets on the left and right machines are joined using Covers for nameplate spacers and bolts. and emergency stop replacement. See Instruction, “Dryer Installation” BIPD6I02. PELLERIN MILNOR CORPORATION PELLERIN MILNOR CORPORATION...
- Page 29 HXCAPSCR 3/8-16UNC2A1.25 GR5 P 15U255 LOCKWASHER MEDIUM 3/8 ZINCPL 15G205 HXNUT 3/8-16UNC2B ZINC GR2 15K125 HEXCAPSCR 3/8-16UNC2AX2.5 GR5- 07 71310 6458 DRYER TO DRYER MNT SHIM 03 CC2X2 COVER PLT:DRYER NPLT REPLCMNT 03 CC3X4 COVER PLT:DRYER E-STOP RPLCMNT PELLERIN MILNOR CORPORATION...
- Page 30 Use a level to identify the parts. Swapping these parts when assembling will cause the top flange to stick up above the rest of the pedestal and cause the dryer to sit incorrectly. Varies P... Pellerin Milnor Corporation...
- Page 31 Location of buck boost transformers S... and blower inverter box when mounted to the pedestal front Typical T... Optional bumper guards U... Bolt the house to the pedestal in 8 Typical Hardware V... places. Pellerin Milnor Corporation...
- Page 32 HXTAPSCR 5/8-11UNC2AX3 GR5 ZIN 12P14KSB SNAPBUSH 5.0" X 4.75" X .75 15G230 HXNUT 1/2-13UNC2B SAE ZINC GR2 15U300 LOKWASHER REGULAR 1/2 ZINC PLT 15U490 FLTWASH 1+1/2X17/32X1/4 ZINC 15K191 HXCAPSCR 1/2-13UNC2AX2.5 GR5 Z 15U255 LOCKWASHER MEDIUM 3/8 ZINCPL Pellerin Milnor Corporation...
- Page 33 HXNUT 3/8-16UNC2B ZINC GR2 15K095 HXCPSCR 3/8-16UNC2AX1 GR5 ZINC 15N176 FLATMACSCR 1/4-20NCX3/4SS18-8 15G164NE HEXLOKNUT NYL 1/4-20 UNC2A SS. 07 71403 6458 BUMPER PAD-16"WX60"LG 5050, 6450, 6458, 6464 Dryers 07 81403 7272 BUMPER PAD 7676 Dryers 07 71404 6458 BUMPER PAD-16"WX10"LG Pellerin Milnor Corporation...
- Page 37 5040, 5050, 6450, 6458, 6464, 7272, 7676, & 8282 Dryers Mounting Mounting Bracket Bracket Plastic Plastic sheeting sheeting requires field innovation length as to support it specified between Dryers Mounting Bracket 6”[152] TO 14”[356] PELLERIN MILNOR CORPORATION PELLERIN MILNOR CORPORATION...
- Page 38 6464 DRYERS 7272 DRYERS 7676 DRYERS 8282 DRYERS -----------------------------------------------------------------------------COMPONENTS------------------------------------------------------------ 07 44230 5040 UNLOAD BRIDGE TO CONV 07 71568 6458 UNLOAD BRIDGE TO CONV 07 71569 7272 UNLOAD BRIDGE TO CONV 07 88094 8282 UNLOAD BRIDGE TO CONV PELLERIN MILNOR CORPORATION...
- Page 39 1.1. Air Flow BNDDUI01.C03 0000086789 A.10 A.11 Released All Milnor pass-through dryers move air, called main air, through the goods. The quantity of main air specified in document BNDUUI01 “Utility Requirements for Gas, Steam, and Thermal Oil Dryers” (in standard cubic feet per minute or scfm) must be available at the dryer main air inlet.
- Page 40 Air and Duct Requirements for Milnor ® Pass-through Dryers 2.1. Is an Inlet Duct Necessary? BNDDUI01.C06 0000086786 A.10 A.11 Released Use an inlet duct to avoid negative air or if hazardous or corrosive fumes are present that could be drawn in to the dryers. Otherwise, consider the facility layout, operational procedures, and cli- matic conditions.
- Page 41 Back Pressure, page 1 automatically. A system of this type could include pressure-sensing devi- ces, a variable-speed booster fan, and a controller. Today, facility designers generally prefer internal lint screens (a Milnor option) or close-coupled ® lint collection systems installed on each dryer. However, if the facility uses a common, powered lint collection system, you can connect the air exhaust from two or more dryers to this system if you run separate ducts from each dryer.
- Page 42 Air and Duct Requirements for Milnor ® Pass-through Dryers Figure 1. Round duct elbow fabrication Legend Elbow radius Segmented elbows Cross-section diameter D... Long radius (Rl = 1.5 x Rl. . . Short radius (Rs = D)* Rs. . .
- Page 43 Air and Duct Requirements for Milnor ® Pass-through Dryers Units of Measure (cont'd.) meters per feet per minute (npm) Air velocity minute inches water (Pa) Pascals Pressure drop column 3.2. Duct Components and Their Pressure Drops BNDDUI01.R03 0000086877 A.10 A.11 Released The table that follows, gives selected round and rectangular duct sizes for each dryer model, in straight lengths and 90 degree elbows.
- Page 44 Air and Duct Requirements for Milnor ® Pass-through Dryers Duct Sizes and Pressure Drops for Dryer Models (cont'd.) Air Specifications Duct components, sizes, and pressure drops Equivalent** cross-sections Pressure drop - iwc (Pa) Rectangular*** Straight 90 Degree Elbows Round Velocity*...
- Page 45 Air and Duct Requirements for Milnor ® Pass-through Dryers Figure 3. Example Duct Layout for Model 6464TG1L Dryer Isometric View of Duct Layout Legend Center line. CL. . . Exhaust duct. This example uses 26 inch (660 mm) diameter round duct.
- Page 46 Air and Duct Requirements for Milnor ® Pass-through Dryers 3.4. Pressure Drop Equations and Examples BNDDUI01.C14 0000087352 A.10 A.11 Released Calculate the pressure drop for each straight length of duct as follows: = PD x L / 100 Where: = Pressure drop for a straight length...
- Page 47 BNDGUI01 “Air and Ductwork Requirements for Milnor ® Pass-through Dry- ers” gives design criteria for customer-supplied inlet and outlet ductwork...
- Page 48 160 to 225 psi (1103 to 1551 kPa) will not operate properly below 115 psi (793 kPa). Conform to the rated pressure of the steam coil as stated on the ma- � chine nameplate. Choose a steam trap with a pressure rating corresponding to the actual pressure � supplied. Pellerin Milnor Corporation...
- Page 49 @ 13.5" column (343) (343) (343) (343) Gas inlet with ratio air burner (natural gas and propane models) Maximum Btu/hr (kcal/ 1,300,000 1,800,000 1,800,000 3,000,000 n.a. pending hr) at x" (mm) water (327,800) (453,000) (453,000) (756,000) column Pellerin Milnor Corporation...
- Page 50 (kw) Average boiler horse- 11.1 (8.3) 16.3 (12.1) 18.5 (13.8) 22.2 (16.5) 37.0 (27.6) 46.6 (34.7) power (kw) Thermal oil inlet (thermal oil models) - Consult Milnor ® factory Main air intake 3,600 8,500 14,000 14,000 Maximum scfm (cu m/...
- Page 51 Gas line vent (gas/propane models) 1/4" stainless steel. Must be vented from the regulator vent to the exterior of the building. Steam condensate outlet (steam models) Per plumbing code. Return condensate to boiler through a steam trap of the correct size. Two steam traps are available from Milnor : One for ®...
- Page 52 1. Unbolt and remove red restraint. 2. Install the belt guard. 3. Locate the blower contactor inside the high voltage electric box. 4. Match the tagged coil wire with the tagged contactor coil terminal and reconnect. Pellerin Milnor Corporation...
- Page 53 The guards protect the machine from the constant impact of laundry carts placed under the discharge door. Hence the height at which the guards are installed must match the height of the carts used. See Figure 3 Pellerin Milnor Corporation...
- Page 54 Utility Requirements For Gas, Steam and Thermal Oil Dryers Figure 3. Bumper Guard Installation Legend Where to install bumpers Bumper guards A... Height determined by user B... End of document: BNDUUI01 Pellerin Milnor Corporation...
- Page 55 Milnor system ®...
- Page 56 ABOVE n. a. — — — — ulating gas valve to 17 AMBIENT n. a. Damper setting 8.13 8.13 8.13 6.87" 6.87" 5.6 (14) 5.6 (14) 8.13 (20.3) High gas pressure (20.3) (20.3) (20.3) (17.1) (17.1) Pellerin Milnor Corporation...
- Page 57 0.8 (2) 0.8 (2) n. a. 10 Back pressure 1. The reference point is atmosphere unless two values are shown for the gauge point. 2. Must not exceed. A pressure that exceeds the maximum can damage the regulator. Pellerin Milnor Corporation...
- Page 58 10. RGP - Pilot gas regulator 11. SPGL - Low gas pressure switch 12. SPGH - High gas pressure switch 13. VEMMG - Modulating gas valve (adjustment screw) 14. VGT - Manual test valve 15. VP - Pilot gas cock Pellerin Milnor Corporation...
- Page 59 9. SPBB - Burner box pressure switch (adjust- ment screw) 10. SPCA - Combustion air pressure switch 11. SPHD - Back pressure switch 12. SPMA - Main air pressure switch 13. EER - Landis + Gyr flame control reset Pellerin Milnor Corporation...
- Page 60 For a quick return to run mode from setup procedure Advances through each of the six setup modes. Note, however, , etc. that the control requires waiting eight seconds in mode C and five seconds in mode D. Resulting display SETUP PROCEDURE Pellerin Milnor Corporation...
- Page 61 Closes the modulating gas valve (position). Hold the keys until MVP = 000. TICHTOC LDA MVP BSPD xxx+xxx x2x xxxx The burner will remain on at minimum fire (MVP=000) until commanded to return to automatic. Start Step 2 here. Upon completion of the steps, Pellerin Milnor Corporation...
- Page 62 In this step, you will measure a small differential pressure. It is necessary to mount the manome- ter near horizontal and use the low pressure scale. 1. Look at Figure 2, page 5. Turn the dial on SPCA counterclockwise to the lowest value. Pellerin Milnor Corporation...
- Page 63 Follow instructions carefully. � 1. Look at Figure 1, page 4. Attach one side of the manometer to GGP (the higher pressure). Leave the other side open to the atmosphere. 2. Remove the cover screw (2) from VP. Pellerin Milnor Corporation...
- Page 64 Landis + Gyr machines Set the modulating gas valve to position 000 (MVP=000). See Section 4.2 , page 1. Look at Figure 1, page 4. Turn the adjustment screw on VEMMG (arrow points to this screw) fully counterclockwise. Pellerin Milnor Corporation...
- Page 65 4. Look at the gas pressure low light ( ) on the status light panel. Slowly turn the dial on SPGL clockwise (higher). Stop when SPGL trips and the burner extinguishes. 5. Open external gas shut-off valve fully. Pellerin Milnor Corporation...
- Page 66 (the marks on the dial show the specified value). If the message appears too frequently, turn the dial to a higher value. If the message does not appear when it should (when a lint screen is blocked) turn the dial to a lower value. End of document: BNDGUM01 Pellerin Milnor Corporation...
- Page 67 È A BOUT THE STEAM AND HOT OIL CONTROL SYSTEMS FOR MILNOR DRYERS MILNOR steam dryers are available with an optional Y-type ON/OFF steam valve. MILNOR hot oil dryers use a modulating oil inlet/bypass valve. Ê H ow To Protect Steam Coils From Water Hammer Damage Steam coils can be damaged when steam pressure is suddenly applied to a water (condensate) filled coil, or when the steam is “wet”...
- Page 68 Clean and “blow down” steam trap and strainer screens after 40 hours of operation and periodically thereafter. Clogged strainer screens will cause longer drying times. Ê A bout the Optional On-Off Steam Control System with Y-type, Air Operated Valve In addition to the steam trap and strainer, dryers equipped with the optional Main Steam Inlet ON/OFF valve are fitted with: a.
- Page 69 Ê A bout the Modulating Hot Oil Valve Ë H ow Modulated Hot Oil Works —Hot air inlet and out- let temperatures are monitored by the dryer control. When the dryer control detects actual temperatures that are either under or over the desired value it signals the hot oil positioner and valve to change the percent of pressurized hot oil sent to the dryer heating coil, verses the percent that bypasses the heating coil.
- Page 70 TIFHTOF LDA MVP BSPD XXX+XXX XXX 000 XXXX Dryer will continue at minimum valve position until com- manded to return to automatic. Returns to automatic. Follow the step-by-step procedure to set the system compo- nents. Ë W hen Recalibration is Required –...
- Page 71 Ê C alibrating the Hot Oil Positioner/Valve The positioner cam must be adjusted so that the valve travels from fully diverted to fully open as the modulat- ing valve position varies from 000 to 255. Refer to “How to Manually Command a Modulating Valve Position” elsewhere in this section then follow the step by step procedures below.
- Page 72 Ë V erifying Positioner/Valve Settings Closes modulating valve. Hold until TIFHTOF LDA BSPD hold MVP=200, verify settings then XXX+XXX XXX repeat for 150, 100, 050, and 000. Since the zero and range adjustments affect each other, verify that for each of the five MVP’s commanded, the valve moves approximately 1/5 of the way from fully open to fully diverted, and: •...
- Page 73 Installation Drawings...
