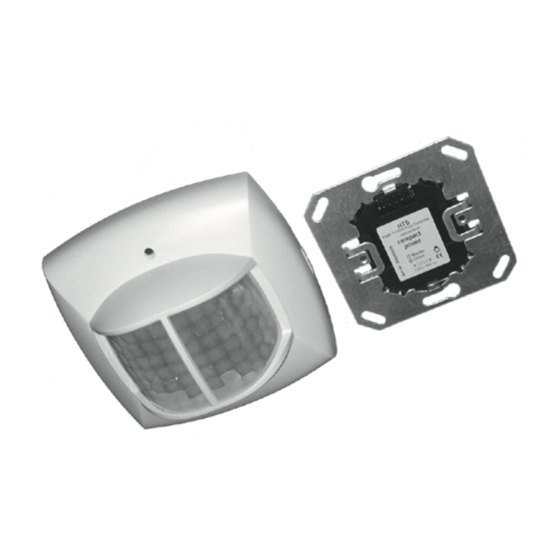

- Page 1 Presence detector compact passage Art. Nr. 201 0 090 Bedienungsanleitung Notice d´utilisation Installation manual Manual de instrucciones Istruzioni per l′uso Gebruikershandleiding Bruksanvisning Bruksanvisning Käyttöohje Betjeningsvejledning...
-
Page 2: Table Of Contents
Installation manual English Presence detector compact passage Table of contents 1. Safety ..........43 2. -
Page 3: Safety
Thank you for purchasing an Theben HTS presence detector and putting your trust in us. 1. Safety DANGER ! Any work on electrical systems must exclusively be carried out by qualified electricians or instructed persons under the direction and supervision of a... -
Page 4: Function And Performance Characteristics
2. Function and performance characteristics The presence detector compact passage is used for a comfortable and effici- ent light as well as HVAC control within a corridor. The switching contact A «Light» switches on the lighting in case of presence and insufficient brightness, and off in case of absence or sufficient brightness. -
Page 5: Fitting And Connection
3. Fitting and connection 3.1 Presence detection The ideal mounting height is 2,0 - 3,5m. The sensitivity of the detector de- creases with increasing mounting height. The detection ranges of multiple detectors should overlap in their fringe zone. Ensure the horizontal installa- tion of the detector. - Page 6 3.2 Light measurement The detector measures artificial light and daylight reflected directly bene- ath the detector (beam width approx. ± 30°). The mounting location is used as the reference for the lighting levels. With indirect lighting, the artificial light at the detector’s mounting location should not exceed 2000 Lux (Brightness value >...
-
Page 7: Start-Up
4. Start-up The detectors are supplied ready for operation with a factory setting of recom- mended standard values. The QuickSet plus service remote control for starting-up the system is opti- onally available. With the remote control all potentiometer values can be set from a distance. - Page 8 Switch-off delay time ● Transfer areas approx. 5min. ● In the range between 2 - 15min the switch-off delay varies according to its self-learning behavior. The set values <2min or >15min remain fixed. ● «Pulse»: staircase lighting timer control (0.5s “on” / 10s “off”) DIP switch Fully / Semi-automatic mode ...
- Page 9 4.2 Settings for switching output B «Presence» Switch-off delay time for presence ● The pre-set values remain unchanged (no self-learning effect). Switch-on delay time for presence ● In case of presence, the contact does not close before the set switch-on delay has elapsed.
- Page 10 4.3 Behaviour on switching on Whenever the sensor module is plugged onto the power module or the unit is energised, the detector goes through tree phases which are indicated by an LED. 1. Start-up phase (30sec) ● LED flashes every second, both contacts are closed (light and presence on) ●...
-
Page 11: Additional Wiring Examples
5. Additional wiring examples 5.1 Master-Slave parallel circuit operation Multiple detectors control one lighting group ● Only the master switches the lighting. All other detectors serve as slaves. ● Presence detection is done by all detectors together. ● Light measurement occurs on the master only. ●... - Page 12 5.2 Master-Master parallel circuit operation Multiple masters control multiple lighting groups ● One master with individual brightness measurement per lighting group. ● Presence detection is done by all detectors together. ● Potentiometer and DIP switches are set on each master individually. ●...
- Page 13 Master Master out in ● Mark all power modules as master. ● Staircase lighting timer e.g. Theben ELPA 1 5.4 Detector as staircase lighting timer ● The master directly controls the lighting. ● The push-button starts the master’s switch-off delay.
-
Page 14: Test Mode
6. Test mode The test mode serves to check the presence detection and the wiring (Master-Slave parallel circuit operation). 6.1 Setting the test mode with DIP-Switch ● Set DIP switch to «Test» (on all detectors in parallel circuit operation). 1. Start-up phase (30sec) ●... -
Page 15: Technical Specifications
7. Technical specifications Sensor module compact passage Detection range horizontal 360° vertical 160° Recommended mounting height 2,0 - 3,5m Maximum range 30 x 4 m (Mh. 2,5m) 30 x 5 m (Mh. 3,5m) Mixed light measurement ca. 10 - 1500Lux Light measurement deactivated „on“... - Page 16 Size 1, (NIS,PMI) Ambient temperature 0° - 50°C Degree of protection IP 40 Article numbers compact passage 201 0 090 Surface frame for compact 907 0 514 Service remote control QuickSet plus 907 0 532 User remote control clic 907 0 515 *) Use of T5-FL: When using T5-FL lamps with a comparable wattage, the same number of electronic ballasts may be connected to the detector’s switching contact as...
-
Page 17: Warranty Declaration
Theben HTS therefore guarantees perfect function, provided the detectors are used as intended. However, should a de- fect occur, Theben HTS offers the following warranty within the scope of its General Terms and Conditions of Business: Please bear in mind the following points: ●... -
Page 18: Troubleshooting
9. Troubleshooting Fault Cause Lighting does not switch on Lux value setting is too low; Detector is in semi-automa- or switches off in case of tic mode; Lighting was switched off manually; Person is presence and darkness outside the detection range; Detection is disturbed by obstacle(s);... - Page 19 Dimensions compact passage 26,5 ∅ Subject to change without prior notice. Errors and omissions excepted.
- Page 20 Theben HTS AG Im Langhag 11, CH - 8307 Effretikon Tel. +41 (0)52 355 17 00 Fax +41 (0)52 355 17 01 www.theben-hts.ch Die Kontaktadressen für weitere Länder finden Sie auf www.theben.de Please find the contact addresses for additional countries on www.theben.de...
