Icom ID-800H Instruction Manual page 24

1

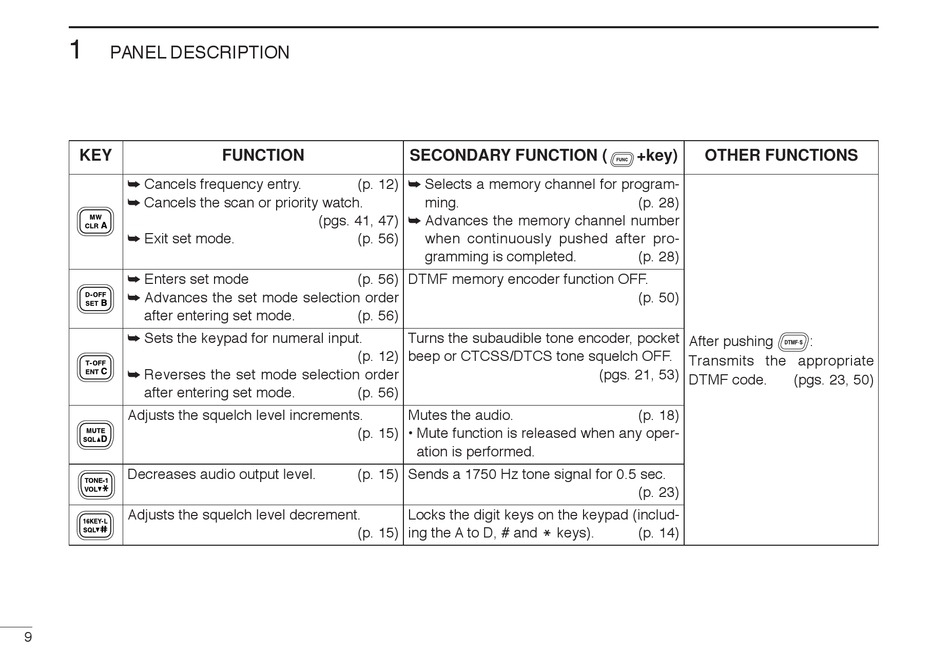

PANEL DESCRIPTION
KEY
➥ Cancels frequency entry.
➥ Cancels the scan or priority watch.
➥ Exit set mode.
➥ Enters set mode
➥ Advances the set mode selection order
after entering set mode.
➥ Sets the keypad for numeral input.
➥ Reverses the set mode selection order
after entering set mode.
Adjusts the squelch level increments.
Decreases audio output level.
Adjusts the squelch level decrement.
9
FUNCTION
(p. 12)
(pgs. 41, 47)
(p. 56)
(p. 56)
(p. 56)
(p. 12)
(p. 56)
(p. 15)
(p. 15)
(p. 15)
SECONDARY FUNCTION (
➥ Selects a memory channel for program-
ming.
➥ Advances the memory channel number
when continuously pushed after pro-
gramming is completed.
DTMF memory encoder function OFF.
Turns the subaudible tone encoder, pocket
beep or CTCSS/DTCS tone squelch OFF.
Mutes the audio.
• Mute function is released when any oper-
ation is performed.
Sends a 1750 Hz tone signal for 0.5 sec.
Locks the digit keys on the keypad (includ-
ing the A to D, # and M keys).
+key) OTHER FUNCTIONS
(p. 28)
(p. 28)
(p. 50)
After pushing
Transmits the appropriate
(pgs. 21, 53)
DTMF code.
(p. 18)
(p. 23)
(p. 14)
:
(pgs. 23, 50)
