There is a part different from the photograph according to the
model and the destination though explains this disassembly
method by using version U.K.

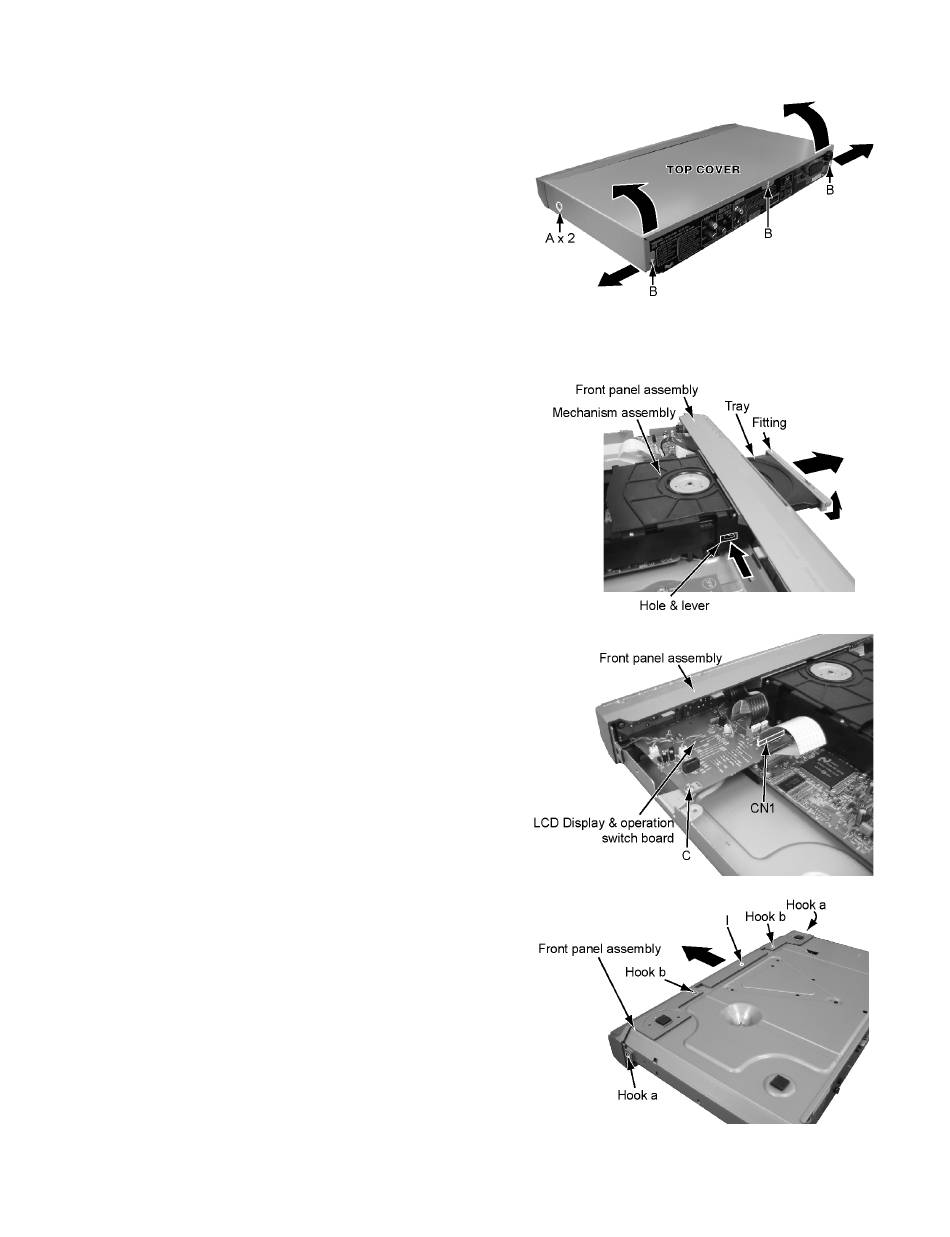

2.1 Main body section

2.1.1 How to remove a top cover
(See Figure 1)
(1) Screw A attaches a top cover to the main part. Remove
the two screws A from the both sides of the main part.
(2) Screw B attaches the top cover to the main part. Remove
the three screws B from the rear side of the main part.
(3) Raise the both sides and lower part of the rear of the top
cover, with opening them slightly in an outward direction.
And the top cover will be removed.
2.1.2 How to remove a front panel assembly
(See Figure 2, 3, and 4.)
• Please remove a top cover before removing a front panel as-
sembly.
• Front panel assembly can be removed without removing
mechanism assembly.
(1) Insert a kind of screwdriver in a hole located in the left side
of mechanism assembly, and push a lever until it cannot
be inserted any further.
(2) And then, a tray will come out. Remove the tray in an up-
per direction, with slightly opening the lower part of fitting
in an outward direction.
(3) Screw C attaches LCD display & operation switch board to
the main part. Remove the screw C.
(4) Extract a card wire from connector CN1 on LCD display &
operation switch board.
(5) Remove I screw that attach the front panel assembly to the
main part.
(6) Remove two hook "a"s and two "b"s. Remove front panel
assembly in a front direction.
SECTION 2

Disassembly method

XV-N5SL
Fig.1
Fig.2
Fig.3
Fig.4
