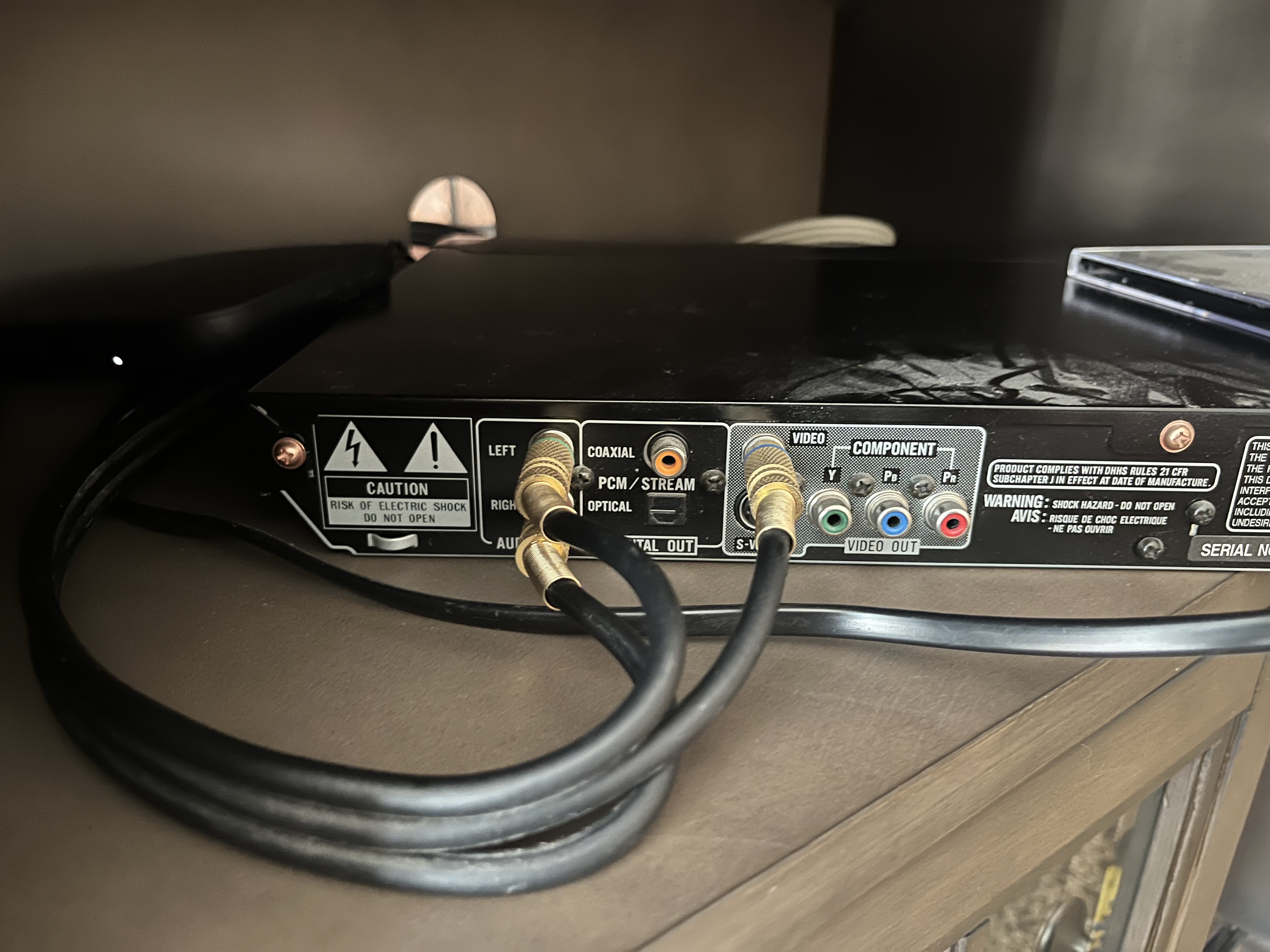

DVD VIDEO PLAYER
LECTEUR DVD VIDEO
XV-N50BK/XV-N55SL
V I D E O
INSTRUCTIONS
MANUEL
D'INSTREUCTIONS
Before operation
Avant le fonctionnement
Preparations
Préparatifs
Basic operations
Opérations de base
Advanced operations
Opérations avancées
MP3/WMA disc playback
Lecture d'un disque MP3/
WMA
JPEG disc playback
Lecture de disques JPEG
Changing the initial settings
Modification des réglages
initiaux
Additional information
Informations complémen-
taires
For Customer Use:
Enter below the Model No. and Serial No.
which are located on the rear, bottom or
side of the cabinet. Retain this information
for future reference.
Model No.
Serial No
LET0230-002A
English
Français
2
3
8
13
21
23
26
31
[C]
