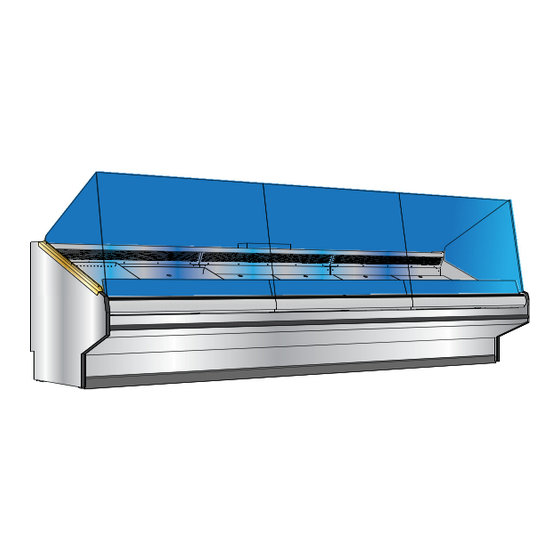

- Page 1 DSF, DSFI, DSFM, DSFN,-EP OPEN FISH SERVICE CASE I N S T A L L A T I O N & O P E R A T I O N G U I D E...
-
Page 2: Table Of Contents
Table of Contents General Information Cut and Plan Views Spec Sheet Installation Body panel Removal Lifting Instructions Plumbing Humidification Manifold Flush System Refrigeration Electrical Electrical Wiring Diagram Index Wiring Diagrams Maintenance Service Tips User Information... - Page 3 1. Do Not Push, Pull, Adjust, or Manipulate the DSF case by any glass component. • Doing so will result in severe damage to such components • Glass breakage may result in serious injury 2. Never stand on the top, deck, or any merchandising feature for any reason.
-
Page 4: General Information
Shortages: Check your shipment for any possible shortages of material. If a shortage should exist and is found to be the responsibility of Hussmann Chino, notify Hussmann Chino. If such a shortage involves the carrier, notify the carrier immediately, and request an inspection. Hussmann Chino will acknowledge shortages within ... -
Page 5: Cut And Plan Views
(889) (791) (95) (92) optional ledge (552) (29) (29) light (610) (1219) (1219) (371) Panel Panel DSFI - 2' DSF - 4' DSFI - 4' (324) (1026) (48) (1419) (914) DSFI (267) (911) (1175) Drain (1483) Stub-up (203)(127) area (1010) DSFI 45°... - Page 6 Cut and Plan Views DSFM with Straight glass DSFM (2438) (51) (VARIABLE LENGTHS) (241) (368) Electrical and (419) Mechanical Drop Area (686) (162) (254) Refrig (1483) (1372) Drain (1083) 44" x 21" Open for Mechanical 46" x 21" Open for Mechanical (1160) (321) (371)
- Page 7 Cut and Plan Views DSFN DSFN - 4' (130) (457) (127) Drain (1483) (203)(127) Drain Elec (889) (1010) (92) optional ledge lights (549) (371) 1/8 (29) (1219) End Panel (518) (324) Notes: (48) Contact your sales representative for information on possible (886) availability of additional case lengths.
-
Page 8: Spec Sheet
Spec Sheet SERVICE SEAFOOD REVISION DATE 09/01/17 HUSSMANN - DSF (CHINO) REFRIGERATION DATA: EST. CAPACITY *** REFG. 20°F GLYCOL TEMPERATURE (ºF) CASE VELOCITY (BTU/HR/FT) LENGTH CHRG. 6° RISE (FT/MIN) CASE LENGTH CASE USAGE (R404A) DISCHARGE RATING CONDITION EVAPORATOR (LBS) AIR ** (°F) - Page 9 Spec Sheet (Cont’d) SERVICE SEAFOOD - DEEP SERVICE FISH INLET REVISION DATE 02/02/17 HUSSMANN - DSFI REMOTE (CHINO) REFRIGERATION DATA: CAPACITY *** EST. GLYCOL (20°F (BTU/HR/FT) (TOTAL TEMPERATURE (ºF) REFG. CASE INLET, 6° RISE) VELOCITY FOR WEDGES) LENGTH CHRG. CASE LENGTHS/...
- Page 10 Spec Sheet (Cont’d) SERVICE/SELF-SERVICE SEAFOOD DEEP SERVICE FISH MEAT REVISION DATE 02/02/17 HUSSMANN - DSFM REMOTE (CHINO) REFRIGERATION DATA: CAPACITY *** EST. GLYCOL (20°F TEMPERATURE (ºF) REFG. (BTU/HR/FT) (TOTAL VELOCITY INLET, 6° RISE) CASE CHRG. CASE LENGTHS/ FOR WEDGES) LENGTHS...
- Page 11 Spec Sheet (Cont’d) SERVICE SEAFOOD REVISION DATE 10/13/2020 HUSSMANN - DSFM-EP-R (CHINO) REFRIGERATION DATA: CAPACITY *** EST. GLYCOL (18°F (BTU/HR/FT) (TOTAL TEMPERATURE (ºF) REFG. VELOCITY INLET, 4° RISE) CASE FOR WEDGES) CHRG. (FT/MIN) LENGTHS RATING DISCHARGE 404A CASE LENGTHS CASE USAGE...
- Page 12 Spec Sheet (Cont’d) SERVICE SEAFOOD REVISION DATE 09/01/17 HUSSMANN - DSFM-VG REMOTE (CHINO) 3/8" GLASSTOP ROTATABLE LED 18 3/8" LIGHTING REMOVABLE WRAP BOARD 10" 61/8" 10" REAR VERTICAL GLASS 10 1/4" PERFORATED 8" ICE PANS 5" 14 1/4" 14 1/4"...
- Page 13 Spec Sheet (Cont’d) SERVICE SEAFOOD REVISION DATE 02/02/17 HUSSMANN - DSFN REMOTE (CHINO) REFRIGERATION DATA: CAPACITY *** EST. TEMPERATURE (ºF) GLYCOL (20°F VELOCITY (BTU/HR/FT) CASE REFG. INLET, 6° RISE) DISCHARGE (FT/MIN) LENGT CHRG. RATING CONDITION EVAPORATOR CASE LENGTHS CASE USAGE AIR ** (°F)
- Page 14 Spec Sheet (Cont’d) SERVICE SEAFOOD REVISION DATE 06/21/18 HUSSMANN - DSFN-EP-R (CHINO) 3" 25 3/8" 24" 2 5/8" 3" 25 5/8" 48 3/4" 39 3/4" 33 3/4" 18 5/8" 7/8" 6 1/8" 27" 1 7/8" 35 7/8" REFRIGERATION DATA: CAPACITY *** EST.
-
Page 15: Installation
WARNING Uncrating the Stand (If Provided; Crating is Optional) • DSF glass is shipped installed to merchandiser. • Merchandiser will arrive with shipping foam to prevent glass damage Place the fixture as close to its permanent position as • Cases must be set and joined prior to removal of glass shipping foam. -
Page 16: Body Panel Removal
Body Panel Removal The merchandiser’s body panels are designed to be held in place without the use of fasteners for a smoother less intru- sive aesthetics. The lower body panel is held in place by the lower flange of the upper front body panel located just under- neath the bumper section of the case and resting hooks located at the bottom of the case which the body panel rest onto. -
Page 17: Lifting Instructions
(see pg. 16 for body panel removal). 3. The DSF can be raised at one end to allow the placement of rollers or dollies then repeated to raise opposite end. 4. Never drag or push the DSF by ANY COMPONENT including ANY GLASS. This will result in damage to the base, and possibly damage to other components and or injury/serious bodily harm. - Page 18 Lifting Instructions (Cont’d) 9. While using J-Bars, use the specified set points to support the case based of the size of dollies being utilized. • Raise one end of the case first. • One J-Bar is usually sufficient to lift the case, use multiple J-Bars at specified lift zones if one does not satisfy the safe lift of the merchandiser.
-
Page 19: Plumbing
Plumbing Waste Outlet and P-TRAP Installing Condensate Drain Poorly or improperly installed condensate drains can seriously The waste outlet is located off the center of the case on interfere with the operation of this refrigerator, and result in one side allowing drip piping to be run lengthwise under the costly maintenance and product losses. -
Page 20: Humidification
The only other moisture in the case is that which is in the product. A single level of The DSF is capable of maintaining superb product quality meat will dry out faster than a fully loaded case with 3-4 with the installation of the proper controlling devices. -
Page 21: Manifold Flush System
Manifold Flush System Start-up General Description Twice a day for two (2) minutes, a high pressure water Turn on the fan circuit. Check to see if the fan for the humidity stream will flush most residue build-up from the bottom of system is running. -
Page 22: Refrigeration
For all multiplexing, defrost should be time terminated. Defrost times should be as directed in the DSF, DSFM technical data sheet. The number of defrosts per day should never change. The duration of the defrost cycle may be adjusted to meet conditions present at your location. -
Page 23: Electrical
LED Lights located within the case at the top. Electrical Components Location Electrical components (if applicable) will be located in the lower rear raceway of the DSF merchandiser. 1. Remove free-floating splashguard away from case. 2. Elect. / Refer. panels are designed with simple slide in and rest designs. Lift conduit panels up and away from case to gain access to conduits. -
Page 24: Electrical Wiring Diagram Index
Electrical Wiring Diagram Index DSFM DSFM-4-R 3031547 DSFM-5-R 3041020 DSFM-6-R 3031548 DSFM-8-R 3031549 DSFM-10-R 3031550 DSFM-12-R 3031551 DSFN-EP DSFN-EP-2-R 3063099 DSFN-EP-3-R 3063097 DSFN-EP-5-R 3063096 DSFN-EP-6-R 3081699 DSFN-EP-8-R 3067227 DSFN-EP-10-R 3077613 DSFN-EP-45O-R 3063100 DSFN/M-EP DSFN/M-EP-CNP-6R W/LIGHTS & TIMER 3149539 DSFM-8-EP-R W/TIMER SWITCH 3114302 DSFN/M-EP-CNP-8-R W/LIGHTS &... -
Page 44: Maintenance
Maintenance Case Cleaning • DO NOT USE A CLEANING OR SANITIZING SOLU- TION THAT HAS AN OIL BASE (these will dissolve the To insure long life, proper sanitation and minimum butyl sealants) or an AMMONIA BASE (this will corrode maintenance costs, the refrigerator should be thoroughly the copper components of the case) cleaned frequently. -
Page 45: Service Tips
Service Tips WARNING ALWAYS DISCONNECT THE ELECTRICAL POWER AT THE MAIN DISCONNECT WHEN SERVICING OR REPLACING ANY ELECTRICAL COMPONENT OF THIS REFRIGERATOR. THIS INCLUDES, BUT IS NOT LIMITED TO SUCH ITEMS AS FANS AND THERMOSTATS. Fan Blade Replacement 3) Install honeycomb by inserting the notched side up against the deflector and press upwards inserting the bottom The evaporator fan is located directly under the deck pan. -
Page 46: User Information
3. Apply the sanitizing solution according to Huss- to maximize life of the product. Hussmann cases were not mann’s directions. designed to “heat up” or “cool down” product - but rather to 4. - Page 47 August 31, 2018 This warning does not mean that Hussmann products will cause cancer or reproductive harm, or is in violation of any product-safety standards or requirements. As clarified by the California State government, Proposition 65 can be considered more of a ‘right to know’...
