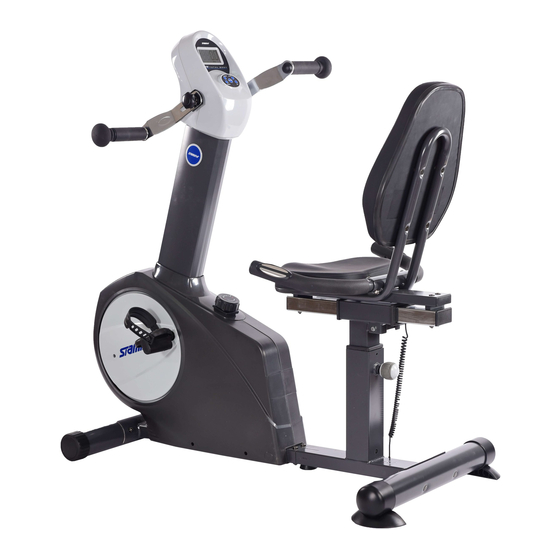

Stamina Elite Total Body 15-9122A Owner's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Product May Vary Slightly From Pictured.
CAUTION:
Weight on this product should not exceed 250 lbs.
This Product is Distributed Exclusively by
2040 N Alliance Ave, Springfield, MO 65803
www.staminaproducts.com
Customer Care
1 (800) 375-7520
Owner's
Manual
WARNING
!
Exercise can present a
h e a l t h r i s k . C o n s u l t a
physician before beginning
any exercise program with
this equipment. If you feel
faint or dizzy, immediately
d i s c o n t i n u e u s e o f t h i s
equipment. Serious bodily
i n j u r y c a n o c c u r i f t h i s
equipment is not assembled
and used correctly. Serious
bodily injury can also occur
if all instructions are not
followed. Keep others and
pets away from equipment
when in use. Always make
sure all bolts and nuts are
securely tightened prior to
each use. Follow all safety
instructions in this manual.
When calling for parts or
service, please specify
the following numbers :
Model#: 15-9122A
S/N: _____________
STAMINA PRODUCTS
MADE IN TAIWAN
© 2021 Stamina Products, Inc.
2021, 03

Advertisement

Table of Contents
loading

Related Manuals for Stamina Elite Total Body 15-9122A

Summary of Contents for Stamina Elite Total Body 15-9122A

  • Page 1 Weight on this product should not exceed 250 lbs. This Product is Distributed Exclusively by STAMINA PRODUCTS MADE IN TAIWAN 2040 N Alliance Ave, Springfield, MO 65803 Customer Care © 2021 Stamina Products, Inc. 1 (800) 375-7520 2021, 03 www.staminaproducts.com...
  • Page 2 Quickstart Guide Smart Audio Workouts for Your Bike Go to the App Store on your device or scan the QR Code for quick access. Download the app and get moving! Assembly video included in app. Apple, the Apple logo, iPhone, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries. App Store is a service mark of Apple Inc., registered in the U.S.

  • Page 3: Table Of Contents

    20. The Stamina® Elite Total Body Recumbent Bike should be used by only one person at a time. 21. The Stamina® Elite Total Body Recumbent Bike is for consumer use only. It is not for use in public or semipublic facilities.
  • Page 4 1 (800) 375-7520 customer.care@staminaproducts.com Hi! From all of us here at Stamina Products, thank you for your purchase. We know that you have big fitness goals in mind and we are here to help you along. Call us, email us, or send us a message on Facebook. Be sure to contact us if you have any questions on your new product.

  • Page 5: Before You Begin

    BEFORE YOU BEGIN Thank you for choosing the Stamina® Elite Total number are required when calling for assistance. Body Recumbent Bike. We take great pride in this Read this manual carefully before using the quality product and hope it will provide many hours Stamina®...

  • Page 6: Equipment Warning, Caution & Notice Labels

    EQUIPMENT WARNING, CAUTION & NOTICE LABELS This chart is provided to help identify the warning, caution, and notice labels on the Stamina® Elite Total Body Recumbent Bike. Please take a moment to familiarize yourself with all of the warning, caution, and notice labels.

  • Page 7: Hardware Identification Chart

    HARDWARE IDENTIFICATION CHART This chart is provided to help identify the hardware used in the assembly process. Place the washers or the ends of the bolts or screws on the circles to check for the correct diameter. Use the small scale to check the length of the bolts and screws.

  • Page 8: Assembly Instructions

    ASSEMBLY INSTRUCTIONS Place all parts from the box in a cleared area and position them on the floor in front of you. Remove all packing materials from your area and place them back into the box. Do not dispose of the packing materials until assembly is completed.
  • Page 9 ASSEMBLY INSTRUCTIONS STEP 4 NOTE: The RIGHT PEDAL(27) has R stamped on the end of the pedal shaft. The RIGHT PEDAL(27) has right hand threads and is tightened by turning clockwise. The LEFT PEDAL(25) has L stamped on the end of the pedal shaft. The LEFT PEDAL(25) has left hand threads and is tightened by turning counterclockwise.
  • Page 10 ASSEMBLY INSTRUCTIONS NOTE: Be careful not to damage the PULSE SENSOR WIRES(104) while doing assembly Step 8 and Step 9. STEP 7 Attach the SEAT FRAME(6) to the SEAT SUPPORT TUBE(5) with NYLOCK NUTS(M8x1.25)(80). STEP 8 Attach the HANDRAIL(7) to the SEAT FRAME(6) with CARRIAGE BOLTS(M8x1.25x50mm)(99) and NYLOCK NUTS(M8x1.25)(80).
  • Page 11 ASSEMBLY INSTRUCTIONS STEP 10 Attach the HANDLEBARS(51) to the MOUNTING BRACKETS(53) with the ADJUSTMENT KNOBS(52) and WASHERS(M8)(74). NOTE: 1. The HANDLEBARS(51) may be assembled in two configurations. Refer to the inset drawing. 2. The meter operates with two AA batteries, the batteries are not included. See page 13 for detailed battery installation instructions.

  • Page 12: Set Up Instructions

    SET UP INSTRUCTIONS Place the Stamina® Elite Total Body Recumbent Bike in the area where it will be used. It is recommended that the Stamina® Elite Total Body Recumbent Bike be placed on an equipment mat. The Stamina® Elite Total Body Recumbent Bike is approximately 49.6 inches long x 23.6 inches wide x 48.6 inches tall.

  • Page 13: Operational Instructions

    OPERATIONAL INSTRUCTIONS USING THE FITNESS METER POWER ON: Pedal movement or press any button. Automatic shut off after four minutes of inactivity. POWER OFF: Resets all values to zero. FUNCTION BUTTONS: MODE : Press and release to select functions for display or to preset target values.
  • Page 14 OPERATIONAL INSTRUCTIONS NOTE: The HANDLEBARS(51) may be assembled in opposite directions or the same direction as shown in illustrations 1 and 2. Opposite directions as shown in illustration 1 is suggested for aerobic exercise. ADJUST THE LENGTH OF THE ROTATING HANDLEBAR Loosen the ADJUSTMENT KNOBS(52) and adjust the HANDLEBARS(51) to your ideal position.

  • Page 15: Storage

    There are eight levels for the load adjustment. STORAGE 1. To store the Stamina® Elite Total Body Recumbent Bike, simply keep it in a clean dry place. 2. The Stamina® Elite Total Body Recumbent Bike is approximately 49.6 inches long x 23.6 inches wide x 48.6 inches tall.

  • Page 16: Conditioning Guidelines

    CONDITIONING GUIDELINES How you begin your exercise program depends on your physical condition. If you have been inactive for several years or are severely overweight, start slowly and increase your workout time gradually. Increase your workout intensity gradually by monitoring your heart rate while you exercise. Remember to follow these essentials: Have your doctor review your training and diet programs.

  • Page 17: Warm-Up And Cool-Down

    WARM-UP and COOL-DOWN Warm-Up The purpose of warming up is to prepare your body for exercise and to minimize injuries. Warm up for two to five minutes before strength training or aerobic exercising. Perform activities that raise your heart rate and warm the working muscles. Activities may include brisk walking, jogging, jumping jacks, jump rope, and running in place.

  • Page 19: Parts List

    PARTS LIST PART# PART NAME Main Frame Rear Frame Seat Post Sliding Tube Seat Support Tube Seat Frame Handrail Front Stabilizer Rear Stabilizer Back Meter Cover Meter w/ Front Cover Bearing Housing Long V-Ribbed Belt (69 inch) V-Ribbed Belt (43 inch) Idler Wheel Round Plug (25mm) Grip...
  • Page 20 PARTS LIST PART# PART NAME Tension Spring D Shape Spacer Seat Adjustment Lever Spring Knob Stand Free Wheel Axle Bearing (6004Z) Bolt, Hex Head (M6 x 1 x 12mm) Bolt, Hex Head (M6 x 1 x 10mm) Screw, Round Head (M4 x 20mm) C Ring (M20) Washer (M8) Screw, Round (M5 x 0.8 x 15mm)

  • Page 21: Warranty

    To implement this limited warranty, send a written notice stating your name, date, and place of purchase and a brief description of the defect along with your receipt to Stamina Products, Inc. 2040 N Alliance Ave, Springfield, Missouri, USA, MO 65803, or email us at customer.care@staminaproducts.com, or call us at 1-800-375-7520.

  • Page 22: Notes

    NOTES...

  • Page 23: Fax/Mail Ordering Form

    2040 N Alliance Ave, Springfield, MO 65803 Would you like to recieve email information or special offers from Stamina Products? Register at contact.staminaproducts.com TO REGISTER YOUR PRODUCT To enact your warranty, please register your product by going to register.staminaproducts.com. Please have your product model number (printed on the cover of this owner’s manual) and the serial number (printed on the black and white sticker on your...
