If you select Static IP, enter an appropriate IP address and subnet mask that are
compatible with your existing network. If a management station exists on
another network segment, then you must enter the IP address for a Default
Gateway that can route traffic between these segments. Also enter the IP
address for the Domain Name Server (DNS) to be used for host-name to IP
address resolution.

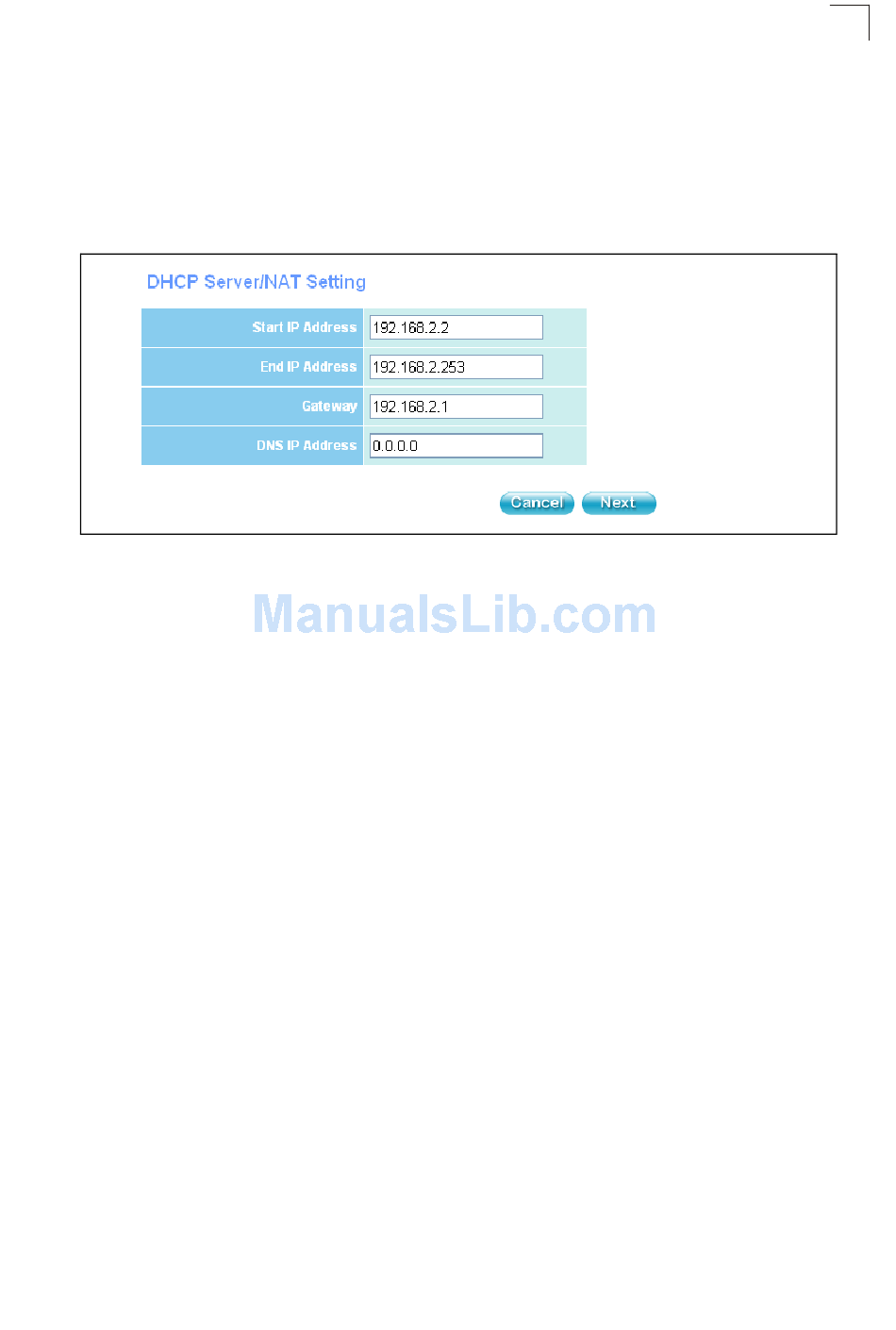

Figure 3-5. Setup Wizard - DHCP Server and NAT Settings
DHCP Server/NAT Setting — This access point includes a DHCP server that
3.
can assign IP addresses to any wireless station or Wi-Fi phone requesting the
service. Addresses are assigned from a common address pool configured on
the access point. You can configure the address pool by specifying start and
end IP addresses.
NAT is a standard method of mapping multiple "internal" IP addresses to one
"external" IP address on devices at the edge of a network. For the access point,
the internal (local) IP addresses are the IP addresses assigned to wireless
clients by the DHCP server, and the external IP address is the IP address
assigned to the access point itself. Note that the access point IP address is
always in a different subnet from the DHCP server pool. The access point uses
the NAT IP settings to route traffic from the wireless interface to the Ethernet
network.
Note: When using a wireless client to access the web management interface with the
DHCP server enabled, be sure to change your PC's IP settings to "Obtain an IP
address automatically" and then use the configured Gateway IP address (default:
192.168.2.1) in your web browser..
Wireless VAP 1 Setting – Sets the wireless Service Set Identifier (SSID) and
4.
wireless security encryption key for the VAP 1 network. An SSID is a
recognizable text name that identifies a wireless network. Wireless clients that
want to connect to a network through an access point must set their SSIDs to
match that of the access point.
This access point supports two independent wireless networks (SSID
interfaces) using the same radio. These SSID interfaces, or Virtual Access
