Panel Display

The web agent displays an image of the switch's ports. The port will turn green when
the corresponding front-panel port is in connection with another device. To show the
port number, place mouse pointer onto the intended port.

Main Menu

Using the onboard web agent, you can define system parameters, manage and
control the switch, and all its ports, or monitor network conditions. The following
table briefly describes the selections available from the web-browser interface.
Menu
STATUS
Overview
Statistics
SYSTEM
Name
LAN Settings
Password
Tools
Restore to Factory Defaults Force the switch to perform a power reset and restore
Upgrade Firmware
Restart
Register Product
Static MAC
Counter Config
PORTS
Settings

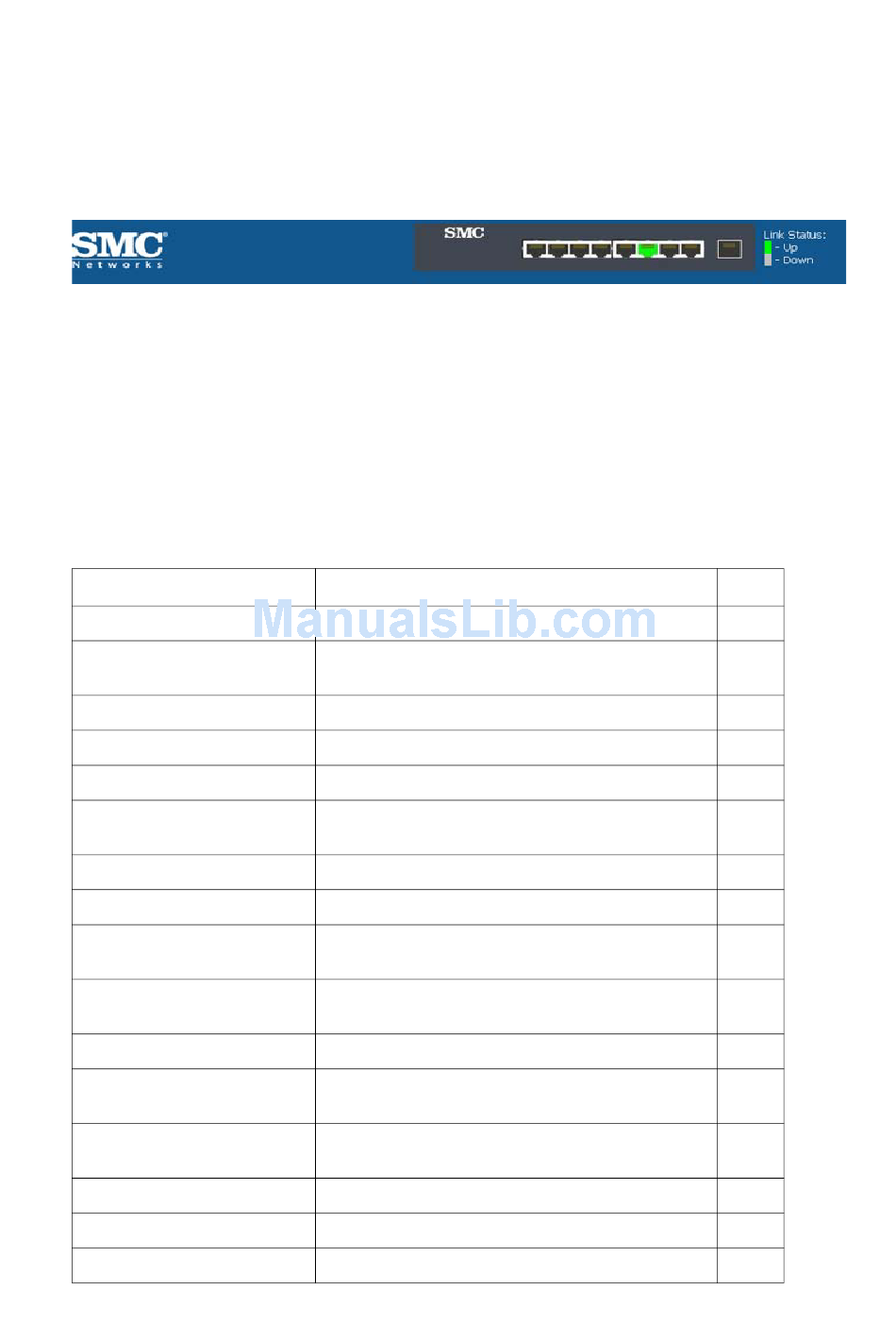

Figure 3-2 Front Panel Indicators

Table 3-2 Switch Main Menu

Description
Provides a basic system description, including system
name, IP address, port, trunk, and VLAN information.
Shows statistics for port and interface.
Shows the name of the switch.
Sets the LAN IP address, subnet mask, and gateway IP
address.
Changes the password.
the original factory settings.
Upgrade the switch system firmware using a file
provided by SMC.
Restarts the switch.
Enables you to connect to the SMC web site to register
your switch.
Adds static MAC addresses to the switch MAC address
table.
Selects traffic statistics you want to monitor.
Configure the speed and duplex mode of ports.
Navigating the Web Browser Interface
Page
5
5
8
10
10
11
12
12
12
13
14
15
3-15
3-15
15
15
3-3
