Trunk Rate Limit

This page allows you to change the maximum input and output data rate for each
each trunk on the switch.
Field Attributes
• Trunk – Indicates trunk identification.
• – Indicates the trunk speed.
Trunk Speed
• Enable Input Rate Limiting - Click to select the box to enable the Input Rate
Limiting function.
• Input Limit – Enter the desired limit. (percentage of port speed)
• Enable Output Rate Limiting – Click to select the box to enable the Output Rate
Limiting function.
• Output Limit – Enter the desired limit. (percentage of port speed)
• Ports – Indicates which ports belong to the trunk.
Web – Click TRUNKS, Settings.

LACP Setup

The switch supports both static trunking and dynamic Link Aggregation Control
Protocol (LACP). LACP configured ports can automatically negotiate a trunked link
with LACP-configured ports on another device. You can configure any number of
ports on the switch as LACP, as long as they are not already configured as part of a
static trunk. If ports on another device are also configured as LACP, the switch and
the other device will negotiate a trunk link between them. If an LACP trunk consists
of more than eight ports, all other ports will be placed in a standby mode. Should one
link in the trunk fail, one of the standby ports will automatically be activated to
replace it.

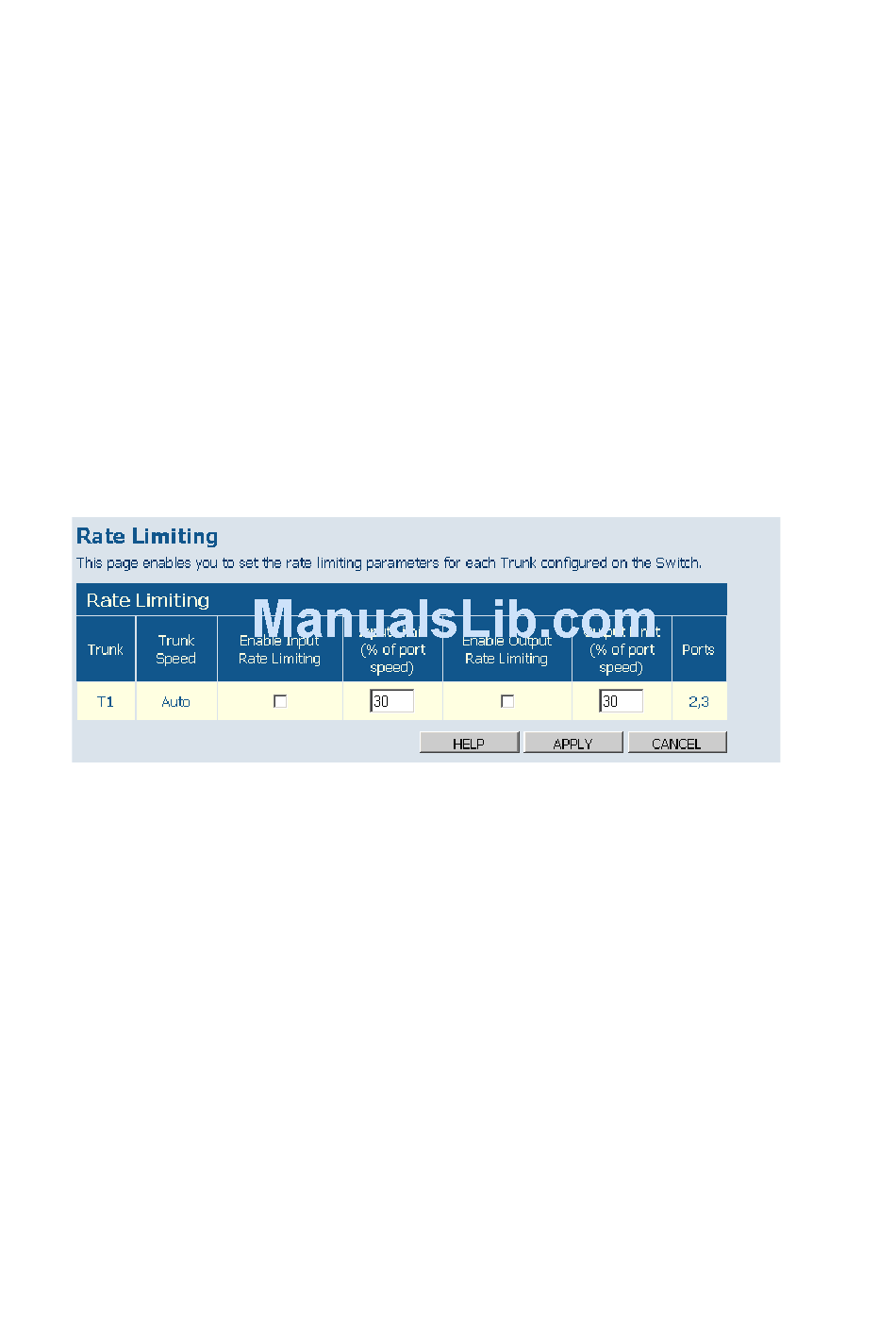

Figure 3-19 Trunk Rate Limiting

Web Configuration
