Register Product

SMC request that you register your switch online, if you have not already done so.
The Register Product page provides a convenient link to the SMC web site for this
purpose.
Web – Click System, Register Product. Click the Register Now button to access the
SMC web site and register your switch.

Static MAC

Switches store the MAC addresses for all known devices in the attached network.
This information is used to forward traffic directly between the inbound and outbound
ports. All the MAC addresses learned by monitoring traffic are stored in a dynamic
address table, which removes (ages out) any addresses that are not "seen" for a
specified time period .
You can also manually configure static MAC addresses that are assigned to specific
ports on the switch. A static MAC address is bound to a specific port and will not be
moved or aged out. You can define up to 24 static MAC addresses on the switch.
Add Static MAC
Type the static MAC address and associated VLAN ID (1-4095) into corresponding
fields in the Add Static MAC table. After clicking the ADD button, a new page opens
to configure the Destination Mask for this MAC entry. Only one static MAC address
can be added at a time.

Port Configuration

You can use the Port Configuration page to manually set the speed, duplex mode,
and flow control.
Field Attributes
• – Allows you to manually set the port speed and duplex mode.
Speed/Duplex
• Flow Control – Allows flow control to be enabled or disabled. When the box is
checked, flow control is enabled.
• Trunk – Indicates if a port is a member of a trunk.

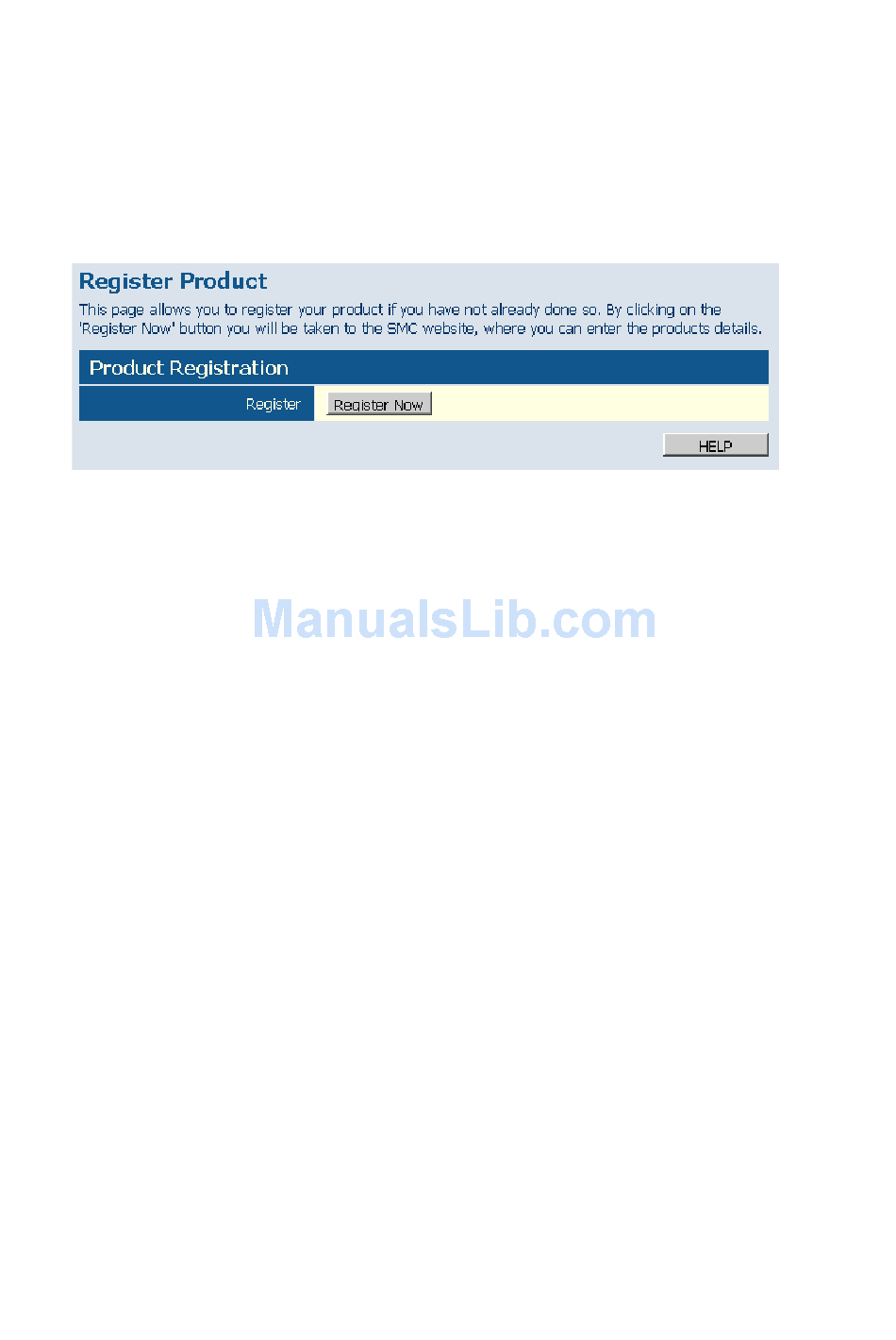

Figure 3-12 Register Product

Web Configuration
3-15
