TI01509P/00/EN/04.21
71542677
2021-11-30
Products
Technical Information

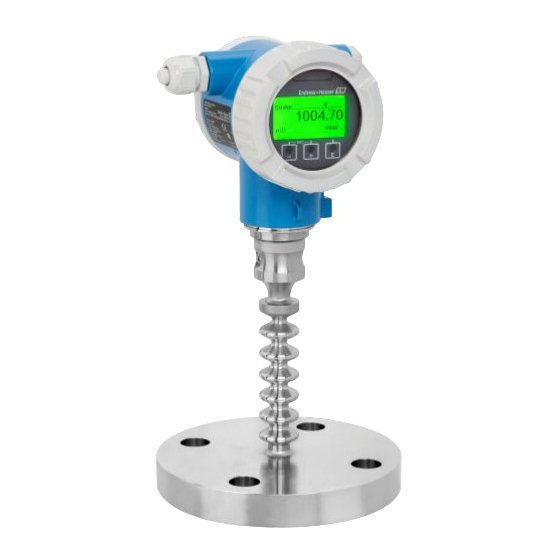

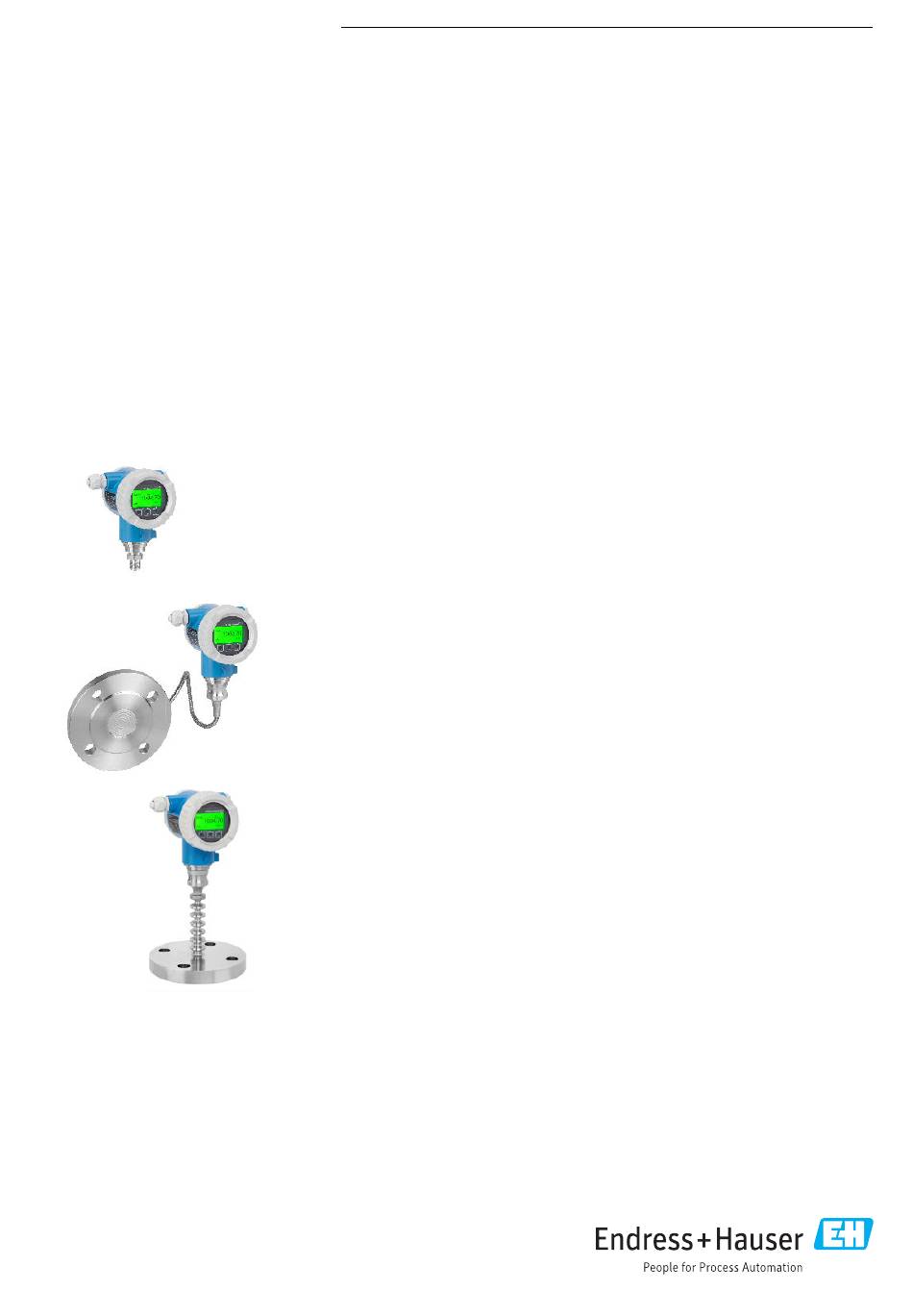

Cerabar PMP71B
Process pressure and level measurement in liquids
or gases
Digital pressure transmitter with metal process
membrane
Applications
• Pressure measuring ranges: up to 700 bar (10 500 psi)
• Process temperatures: up to 400 °C (752 °F) with diaphragm seal
• Accuracy: up to ±0.025%
Advantages
The new Cerabar generation introduces a robust pressure transmitter that combines
numerous benefits: Easiest local or remote operation, allows condition-based
maintenance and offers smart safety in processes. The firmware is designed to
ensure extremely easy handling. Intuitive and clear wizard navigation guides the user
through the commissioning and verification of the device. The Bluetooth connectivity
provides safe and remote operation. The large display with backlight guarantees
excellent readability. The Heartbeat Technology software package offers an on-
demand verification and monitoring function to detect undesired anomalies. These
undesired anomalies include dynamic pressure shocks or changes in the supply
voltage, for example.
Solutions
Services

Advertisement

Table of Contents
loading

Related Manuals for Endress+Hauser Cerabar PMP71B

Summary of Contents for Endress+Hauser Cerabar PMP71B

  • Page 1 Products Solutions Services TI01509P/00/EN/04.21 71542677 2021-11-30 Technical Information Cerabar PMP71B Process pressure and level measurement in liquids or gases Digital pressure transmitter with metal process membrane Applications • Pressure measuring ranges: up to 700 bar (10 500 psi) • Process temperatures: up to 400 °C (752 °F) with diaphragm seal •...

  • Page 2: Table Of Contents

    Cerabar PMP71B Table of contents About this document ......4 Atmosphere .......
  • Page 3 Cerabar PMP71B Application packages ..... . . 75 Heartbeat Technology ......

  • Page 4: About This Document

    Cerabar PMP71B About this document Symbols Safety symbols DANGER This symbol alerts you to a dangerous situation. Failure to avoid this situation will result in serious or fatal injury. WARNING This symbol alerts you to a dangerous situation. Failure to avoid this situation can result in serious or fatal injury.

  • Page 5: List Of Abbreviations

    Cerabar PMP71B List of abbreviations A0029505 OPL: The OPL (overpressure limit = sensor overload limit) for the device depends on the lowest-rated element, with regard to pressure, of the selected components, i.e. the process connection has to be taken into consideration in addition to the measuring cell.

  • Page 6: Function And System Design

    Cerabar PMP71B Function and system design Measuring principle Metal process membrane Standard device (without diaphragm seal) A0043089 Measuring element Channel with fill fluid Metal process membrane Pressure The pressure deflects the metal process membrane of the sensor. A fill fluid transfers the pressure to a Wheatstone bridge (semi-conductor technology).

  • Page 7: Measuring System

    Cerabar PMP71B deflected. A fill fluid transfers the pressure to the measuring element on which a resistance bridge is located. The pressure-dependent change in the bridge output voltage is measured and evaluated. Advantages: • Depending on the version, can be used for process pressures up to 400 bar (6 000 psi) and for extreme process temperatures •...

  • Page 8: Communication And Data Processing

    IT security with HART, Bluetooth Endress+Hauser can only provide a warranty if the device is installed and used as described in the Operating Instructions. The device is equipped with security mechanisms to protect it against any inadvertent changes to the device settings. IT security measures in line with operators' security standards and designed to provide additional protection for the device and device data transfer must be implemented by the operators themselves.
  • Page 9 Cerabar PMP71B Device-specific IT security The device offers specific functions to support protective measures by the operator. These functions can be configured by the user and guarantee greater in-operation safety if used correctly. An overview of the most important functions is provided in the following section: •...

  • Page 10: Input

    Cerabar PMP71B Input Measured variable Measured process variables • Absolute pressure • Gauge pressure Measuring range Depending on the device configuration, the maximum working pressure (MWP) and the overpressure limit (OPL) can deviate from the values in the tables. Absolute pressure...
  • Page 11 Cerabar PMP71B Gauge pressure Sensor Maximum sensor measuring range Smallest calibratable span lower (LRL) upper (URL) [bar (psi)] [bar (psi)] [bar (psi)] 400 mbar (6 psi) –0.4 (–6) +0.4 (+6) 0.005 (0.075) 1 bar (15 psi) –1 (–15) +1 (+15) 0.01 (0.15)

  • Page 12: Output

    Cerabar PMP71B Output Output signal Current output 4 to 20 mA with superimposed digital communication protocol HART, 2-wire The current output offers a choice of three different operating modes: • 4.0 to 20.5 mA • NAMUR NE 43: 3.8 to 20.5 mA (factory setting) •...

  • Page 13: Wireless Hart Data

    Cerabar PMP71B • DD revision: 1 • Device description files (DTM, DD) information and files at: • www.endress.com • www.fieldcommgroup.org • HART load: min. 250 Ohm HART device variables (preset at the factory) The following measured values are assigned to the device variables at the factory:...

  • Page 14: Power Supply

    Cerabar PMP71B Power supply Terminal assignment Single compartment housing A0042594  2 Connection terminals and ground terminal in the connection compartment Positive terminal Negative terminal Internal ground terminal Dual compartment housing A0042803  3 Connection terminals and ground terminal in the connection compartment...

  • Page 15: Supply Voltage

    Signal + Not assigned Signal – Ground Endress+Hauser offers the following accessories for devices with an M12 plug: Plug-in jack M 12x1, straight • Material: Body: PBT; union nut: nickel-plated die-cast zinc; seal: NBR • Degree of protection (fully locked): IP67 •...

  • Page 16: Potential Equalization

    Overvoltage protection Devices without optional overvoltage protection Equipment from Endress+Hauser fulfills the requirements of the product standard IEC / DIN EN 61326-1 (Table 2 Industrial Environment). Depending on the type of port (DC power supply, input/output port) different testing levels according...

  • Page 17: Performance Characteristics

    Cerabar PMP71B Performance characteristics Response time • HART: acyclic: min. 330 ms, typically 590 ms (depends on commands and number of preambles) • HART: cyclic (burst): min. 160 ms, typically 350 ms (depends on commands and number of preambles) Reference operating •...
  • Page 18 Detailed inaccuracies, e.g. for other temperature ranges, can be calculated with the Applicator "Sizing Pressure Performance". A0038927 Calculation of the diaphragm seal error with the Endress+Hauser Applicator Diaphragm seal errors are not taken into consideration. They are calculated separately in the Applicator "Sizing Diaphragm Seal".
  • Page 19 Cerabar PMP71B Reference accuracy [E1] The reference accuracy comprises the non-linearity according to the limit point method, pressure hysteresis and non-repeatability in accordance with [IEC62828-1 / IEC 61298-2]. Reference accuracy for standard up to TD 100:1, for platinum up to TD 5:1.

  • Page 20: Resolution

    Detailed inaccuracies, e.g. for other temperature ranges, can be calculated with the Applicator "Sizing Pressure Performance". A0038927 Calculation of the diaphragm seal error with the Endress+Hauser Applicator Diaphragm seal errors are not taken into consideration. They are calculated separately in the Applicator "Sizing Diaphragm Seal".

  • Page 21: Long-Term Stability

    Cerabar PMP71B Long-term stability The specifications refer to the upper range limit (URL). 400 mbar (6 psi), 1 bar (15 psi) and 2 bar (30 psi) sensors • 1 year: ± 0.08 % • 5 years: ± 0.12 % • 10 years: ± 0.13 % •...

  • Page 22: Installation

    • To ensure optimal readability of the local display, adjust the housing and local display • Endress+Hauser offers a mounting bracket to mount the device on pipes or walls • Use flushing rings for flanges, flange seals and pancake seals if buildup or clogging can be expected at the process membrane •...

  • Page 23: Sensor Selection And Arrangement

    Cerabar PMP71B ≥ 100 (3.94) A0038734 Recommended installation in a vacuum application Installation above the diaphragm seal Height difference Device Bending radius ≥ 100 mm (3.94 in). Ensure strain relief to prevent the capillary from bending. The maximum height difference depends on the density of the diaphragm seal fill fluid and the lowest absolute pressure that can ever occur at the diaphragm seal (empty container).

  • Page 24: Special Mounting Instructions

    Cerabar PMP71B ø42...60 (1.65...2.36) 122 (4.8) 140 (5.51) 158 (6.22) 175 (6.89) A0028493 Unit of measurement mm (in) Ordering information: • Can be ordered via the Product Configurator • Can be ordered as a separate accessory, part number 71102216 The mounting bracket is included in the delivery if you order the device with a separate housing.
  • Page 25 Cerabar PMP71B r ³ 120 (4.72) r ³ A0038412 Sensor, remote (including electronic insert) Mounting bracket enclosed, suitable for wall or pipe mounting Cable, both ends are fitted with a socket Process connection adapter Process connection with sensor Ordering information: •...
  • Page 26 Cerabar PMP71B r ³ 120 (4.72) 54.1 (2.13) A0047095 Process connection adapter Endress+Hauser...

  • Page 27: Environment

    Cerabar PMP71B Environment Ambient temperature range The following values apply up to a process temperature of +85 °C (+185 °F). At higher process temperatures, the permitted ambient temperature is reduced. • Without LCD display: • Standard: –40 to +85 °C (–40 to +185 °F) •...

  • Page 28: Storage Temperature

    Atmosphere Operation in very corrosive environment For corrosive environments (e.g. maritime environment / coastal areas), Endress+Hauser recommends the use of a PVC-coated capillary armor or a PTFE capillary armor for capillaries and the stainless steel housing. The transmitter can be additionally protected by a special coating (Technical Special Product (TSP)).

  • Page 29: Vibration Resistance

    Use either a device with a temperature isolator or with a capillary in applications with very high temperatures. If vibrations additionally occur in the application, Endress+Hauser recommends the use of a device with a capillary. If a device with a temperature isolator or capillary is used, the device must be mounted with a mounting bracket.

  • Page 30: Process

    Cerabar PMP71B Process Process temperature range Standard device (without diaphragm seal) NOTICE The permitted process temperature depends on the process connection, process seal, ambient temperature and the type of approval. ‣ All the temperature data in this document must be taken into consideration when selecting the device.
  • Page 31 Cerabar PMP71B The calculation of the operating temperature range of a diaphragm seal system depends on the fill fluid, capillary length and capillary internal diameter, process temperature and oil volume of the diaphragm seal. Detailed calculations, e.g. for temperature ranges, negative pressure and temperature ranges, are done separately in the Applicator "Sizing Diaphragm...
  • Page 32 Cerabar PMP71B [psi p ] [bar p ] 3625 2900 2175 1450 -40 25 50 75 100 125 150 175 200 [°C] -40 77 122 167 212 257 302 347 392 [°F] A0045213 For vacuum applications: p ≤ 1 bar (14.5 psi) to 0.05 bar (0.725 psi) to max.+150 °C (302 °F).

  • Page 33: Process Pressure Range

    Burst pressure: 2 800 bar (40 600 psi) Ultrapure gas applications Endress+Hauser also offers devices for special applications, such as for ultrapure gas, that are cleaned of oil and grease. No special restrictions regarding the process conditions apply to these devices.
  • Page 34 Cerabar PMP71B A0020474 Ambient temperature Process temperature Maximum permitted insulation height Insulation material Mounting with a "Compact" diaphragm seal type [°F] [°C] −58 −50 −148 −100 [°C] −60 −40 −20 [°F] −76 −40 −4 A0040383 Ambient temperature at transmitter Maximum process temperature +85 °C (+185 °F)
  • Page 35 Cerabar PMP71B a zero point shift due to the hydrostatic column in the temperature isolator. This zero point shift can be corrected on the device. The maximum ambient temperature T at the transmitter depends on the maximum process temperature T The maximum process temperature depends on the diaphragm seal fill fluid used.
  • Page 36 Cerabar PMP71B Item –50 °C (–58 °F) 70 °C (158 °F) –35 °C (–31 °F) –70 °C (–94 °F) Maximum ambient temperature at transmitter Maximum process temperature Process temperature: max. +400 °C (+752 °F), depending on the diaphragm seal fill fluid used...

  • Page 37: Mechanical Construction

    Cerabar PMP71B Mechanical construction For the dimensions, see the Product Configurator: www.endress.com Search for product → Start configuration → after configuration, click "CAD" The following dimensions are rounded values. For this reason, the dimensions may deviate from the values on www.endress.com.
  • Page 38 Cerabar PMP71B Device height, diaphragm seal The device height is calculated from • the height of the housing • the height of optional mounted parts such as temperature isolators or capillaries • the height of the individual process connection A0043568...

  • Page 39: Dimensions

    Cerabar PMP71B Dimensions Single compartment housing 101 (3.98) 45 (1.77) 125 (4.92) A0038380 Unit of measurement mm (in) Device with display, cover with glass viewing window (devices for Ex d, dust Ex): 138 mm (5.43 in) Device with display, cover with plastic viewing window: 127 mm (5 in) Device without display, cover without viewing window: 124 mm (4.88 in)
  • Page 40 Cerabar PMP71B Dual compartment housing 132 (5.2) 121 (4.76) 115 (4.53) 118 (4.65) 64 (2.52) 54 (2.13) 78 (3.07) 143 (5.63) A0038377 Unit of measurement mm (in) Device with display, cover with glass viewing window (devices for Ex d, dust Ex): 132 mm (5.2 in) Device with display, cover with plastic viewing window: 121 mm (4.76 in)
  • Page 41 Cerabar PMP71B Sensor, remote (separate housing) 42...60 (1.65...2.36) 122 (4.8) 140 (5.51) 158 (6.22) 175 (6.89) 20 (0.79) A0038214 Unit of measurement mm (in) 86 mm (3.39 in) Length of cable versions Endress+Hauser...
  • Page 42 Cerabar PMP71B Mounted parts, diaphragm seal A0045182 Housing Diaphragm seal, here e.g. flange diaphragm seal Diaphragm seal with temperature isolator Process connections with capillary lines are 40 mm (1.57 in) higher than process connections without capillary lines OPL and MWP The maximum overpressure limit (OPL) and the maximum working pressure (MWP) of the sensor can deviate from the maximum OPL and MWP of the process connection.
  • Page 43 Cerabar PMP71B Thread ISO 228 G, flush membrane, standard (without diaphragm seal) ø18.4 (0.72) ø28 (1.1) ø30 (1.18) ø18 (0.71) G 1" A G ½" A ø36 (1.42) ø23.6 (0.93) ø39 (1.54) ø26.5 (1.04) A0021613 A0021614 ø28 (1.1) ø28 (1.1) ø56.3 (2.22)
  • Page 44 Cerabar PMP71B Thread DIN, flush membrane, standard (without diaphragm seal) ø17.7 (0.7) ø17.5 (0.69) ø17.5 (0.69) M20x1.5 ø23.6 (0.93) ø40 (1.57) ø26.5 (1.04) M44x1.25 ø55 (2.17) A0042255 A0021623 Engineering unit mm (in) Item Designation Material Weight kg (lb) Thread DIN 16288 M20 AISI 316L 0.4 (0.88)
  • Page 45 Cerabar PMP71B Thread ASME, flush membrane, standard (without diaphragm seal) ø28 (1.1) NPT ¾" ø28 (1.1) A0023747 NPT 1" A0021624 ø28 (1.1) ø28 (1.1) NPT 1 " ½ NPT 2" A0021625 A0021626 Engineering unit mm (in) Item Designation Material Weight kg (lb) Thread ASME ¾"...
  • Page 46 Cerabar PMP71B Thread ISO 228 G, internal process membrane, standard (without diaphragm seal) ø11.4 (0.45) ø3.2 (0.13) ø6 (0.24) G ¼" ø17.5 (0.69) ø17.5 (0.69) G ½" A G ½" A A0032664 A0021591 ø11.4 (0.45) ø17.5 (0.69) G ½" A...
  • Page 47 Cerabar PMP71B Thread ASME, internal process membrane, standard (without diaphragm seal) ø21.4 (0.84) ø21.4 (0.84) NPT ¼" ø11.4 (0.45) NPT ½" NPT ½" A0021113 A0021112 NPT ½" ø38 (1.5) A0020933 Engineering unit mm (in) Item Designation Material Weight kg (lb) Thread ASME ½"...
  • Page 48 Cerabar PMP71B Thread JIS, internal process membrane, standard (without diaphragm seal) ø8 (0.31) ø21.4 (0.84) ø3 (0.12) ø11.4 (0.45) ø5 (0.2) R ½" G ½" A0021608 A0021607 Engineering unit mm (in) Item Designation Material Weight kg (lb) JIS B0202 G ½" (male) AISI 316L 0.6 (1.32)
  • Page 49 Cerabar PMP71B Flange EN1092-1, flush membrane, standard (without diaphragm seal) Connection dimensions according to EN1092-1. d = 28 A0045473 ⌀D Diameter of flange Thickness ⌀d Raised face Raised face ⌀k Pitch diameter ⌀L Diameter of hole ⌀d Max. diameter of process membrane...
  • Page 50 Cerabar PMP71B Flange ASME, flush membrane, standard (without diaphragm seal) Connection dimensions in accordance with ASME B 16.5, raised face RF (raised face RF except 1", see Table) d = ø1.1 A0022645 Diameter of flange Thickness Raised face Thickness of raised face...
  • Page 51 Cerabar PMP71B Oval flange 75 (2.95) A0021632 A Sensor <40 bar (600 psi): 40 mm (1.57 in); sensor ≥40 bar (600 psi): 45 mm (1.77 in) Engineering unit mm (in) Material Designation Weight kg (lb) Oval flange adapter 1/4-18 NPT AISI 316L (1.4404)
  • Page 52 Cerabar PMP71B Pancake, flush membrane, diaphragm seal ≈200 (7.87) A0021635 Diameter Max. diameter of process membrane Thickness Engineering unit mm (in) Material Weight kg (lb) DN 50 PN 16-400 20 - 22 1.3 (2.87) AISI 316L DN 80 PN 16-400 20 - 22 2.3 (5.07)
  • Page 53 Cerabar PMP71B Thread ISO228 , thread ASME, flush membrane, diaphragm seal SW/AF SW/AF A0021639 Diameter Diameter Thread Screw-in length AF/ width across flats Max. diameter of process membrane Height Engineering unit mm (in). Left: thread ISO228, right: thread ASME Material...
  • Page 54 Cerabar PMP71B ISO228 thread, ASME thread, flush membrane, diaphragm seal, TempC membrane SW/AF SW/AF A0045722 Diameter Diameter Thread Screw-in length AF/ across flats Max. diameter of process membrane Height Engineering unit mm (in). left: ISO228 thread, right: ASME thread Schematic diagram, the design may differ.
  • Page 55 Cerabar PMP71B Flange EN1092-1, flush membrane, diaphragm seal Connection dimensions according to EN1092-1. A0045226 ⌀D Diameter of flange Thickness ⌀d Raised face Raised face ⌀k Pitch diameter ⌀L Diameter of hole ⌀d Max. diameter of process membrane Engineering unit mm...
  • Page 56 Cerabar PMP71B Maximum diameter of membrane Ød Ød (mm) 316L TempC 316L Alloy C276 Tantalum Monel PTFE (Alloy 400) DN 25 PN 10-40 DN 25 PN 63-160 DN 25 PN 250 DN 25 PN 400 DN 32 PN 10-40 DN 40...
  • Page 57 Cerabar PMP71B Barrel, flange, EN1092-1, flush membrane, diaphragm seal Connection dimensions in accordance with EN 1092-1. A0045227 ⌀D Diameter of flange Thickness ⌀d Raised face ⌀k Pitch diameter ⌀L Diameter of hole ⌀d Max. diameter of process membrane ⌀d Barrel diameter...
  • Page 58 Cerabar PMP71B Flange ASME B16.5, flush membrane, diaphragm seal Connection dimensions in accordance with ASME B 16.5, raised face RF Ød ØR ØW ØO A0045230 ØO Diameter of flange Thickness ØR Raised face Raised face ØW Pitch diameter Øg Diameter of hole Ød...
  • Page 59 Cerabar PMP71B Maximum diameter of membrane Ød Class Ød (in) 316L TempC 316L Alloy C276 Tantalum Monel (Alloy 400) 1.10 1.30 1.34 1.30 1.10 1.30 1.34 1.30 400/600 1.10 1.30 1.34 1.30 900/1500 1.10 1.10 1.02 1.10 2500 1.10 1.30 1.34...
  • Page 60 Cerabar PMP71B Barrel, flange ASME B16.5, flush membrane, diaphragm seal Connection dimensions in accordance with ASME B 16.5, raised face RF Ød Ød ØR ØW ØO A0045232 ØO Diameter of flange Thickness ØR Raised face ØW Pitch diameter Øg Diameter of hole Ød...
  • Page 61 Cerabar PMP71B Flange JIS, flush membrane, diaphragm seal Connection dimensions in accordance with JIS B 2220 BL, raised face RF. A0021680 Diameter of flange Thickness Raised face Thickness of raised face Pitch diameter Diameter of hole Engineering unit mm 1) 2) 3)
  • Page 62 Cerabar PMP71B Separator, thread, ISO228, ASME, DIN, welded, diaphragm seal ø72.6 (2.86) ø72.6 (2.86) ø72.6 (2.86) ø18.4 (0.72) ø11.4 (0.45) ø4 (0.16) ø4 (0.16) ø17.5 (0.69) ø6 (0.24) NPT ½" 14 ´ M20x1.5 G ½"A A0021685 Engineering unit mm (in)
  • Page 63 Cerabar PMP71B 95 (3.74) 95 (3.74) 3.5 (0.14) 7 (0.28) NPT ½" 6 (0.24) G ½" A0032474 Engineering unit mm (in) Item Designation Material Measuring range PN Weight bar (psi) kg (lb) Threaded, ISO228 G ½ A EN837 with metal seal (silver-plated) –60 to +400 °C (–76 to +752 °F)

  • Page 64: Weight

    Cerabar PMP71B Separator ISO228, ASME, DIN13, threaded, diaphragm seal, membrane material 316L, TempC Ø99 (3.9) Ø99 (3.9) Ø99 (3.9) Ø4 (0.16) Ø11.4 (0.45) Ø4 (0.16) Ø6 (0.24) NPT1/2" M20x1.5 G1/2 A0045271 Engineering unit mm (in) Item Designation Material Measuring range PN...

  • Page 65: Materials In Contact With Process

    Cerabar PMP71B Materials in contact with Membrane material process • 316L (1.4435) • 316L (1.4435), TempC TempC membrane stands for "Temperature Compensatory Membrane" This membrane reduces the process and environmental influences for diaphragm seals compared to conventional systems • Alloy C276...
  • Page 66 Cerabar PMP71B Aluminum housing nameplate • Adhesive polyester label • Versions that can be ordered for use at reduced ambient temperatures: metal wired-on tag plate made of 316L (1.4404) Nameplate of stainless steel housing • Metal nameplate made of 316L (1.4404) Nameplate fasteners (rivets) made of 316Ti (1.4571)
  • Page 67 Cerabar PMP71B PTFE-armored • Capillary: AISI 316 Ti (1.4571) • Protective hose for capillary: AISI 316L (1.4404) • Armor: PTFE • Single-ear clamp: 1.4301 Accessories For technical data (e.g. materials, dimensions or order numbers), see the accessory document SD01553P. Endress+Hauser...

  • Page 68: Operability

    Cerabar PMP71B Operability Operating concept Operator-oriented menu structure for user-specific tasks • User navigation • Diagnostics • Application • System Fast and safe commissioning • Interactive wizard with graphical user interface for guided commissioning in FieldCare, DeviceCare or DTM, AMS and PDM-based third-party tools or SmartBlue •...

  • Page 69: Local Operation

    Cerabar PMP71B Local operation Operating keys and DIP switches on the electronic insert HART Zero/I Alarm Span/II Display A0039285 Operating key for lower range value (Zero) Operating key for upper range value (Span) DIP switch for alarm current DIP switch for locking and unlocking the device The setting of the DIP switches has priority over the settings made via other operation methods (e.g.

  • Page 70: Remote Operation

    Prerequisite • Device with Bluetooth display • Smartphone or tablet with Endress+Hauser SmartBlue app or PC with DeviceCare from version 1.07.00 or FieldXpert SMT70 The connection has a range of up to 25 m (82 ft). The range can vary depending on environmental conditions such as attachments, walls or ceilings.

  • Page 71: Certificates And Approvals

    → Downloads. CE mark The device meets the legal requirements of the relevant EC directives. Endress+Hauser confirms that the device has been successfully tested by applying the CE mark. RCM-Tick marking The supplied product or measuring system meets the ACMA (Australian Communications and Media Authority) requirements for network integrity, interoperability, performance characteristics as well as health and safety regulations.

  • Page 72: Test Reports

    5-point calibration certificate 10-point calibration certificate, traceable to ISO/IEC 17025 Manufacturer declarations A variety of manufacturer declarations can be downloaded from the Endress+Hauser website. Other manufacturer declarations can be ordered through the Endress+Hauser sales office. Downloading the Declaration of Conformity www.endress.com...

  • Page 73: Oxygen Application

    UL 122701 (previously ANSI/ISA 12.27.01) Endress+Hauser devices are designed according to UL 122701 (previously ANSI/ISA 12.27.01) and allow the user to waive the use of - and save the cost of installing - external secondary process seals in the conduit as required by the process sealing sections of ANSI/NFPA 70 (NEC) and CSA 22.1...

  • Page 74: Ordering Information

    • Automatic verification of exclusion criteria • Automatic creation of the order code and its breakdown in PDF or Excel output format • Ability to order directly in the Endress+Hauser Online Shop Scope of delivery The scope of delivery comprises: •...
  • Page 75 Cerabar PMP71B Application packages Heartbeat Technology Availability Available in all device versions. Heartbeat Verification + Monitoring, optional. Heartbeat Diagnostics • Continuous self-monitoring of the device • Diagnostic messages output to • the local display • an asset management system (e.g. FieldCare or DeviceCare) •...
  • Page 76 Cerabar PMP71B Accessories Device-specific accessories Mechanical accessories • Mounting bracket for housing • Mounting bracket for block & bleed valves • Block&Bleed valves: • Block&Bleed valves can be ordered as enclosed accessories (seal for mounting is enclosed) • Block&Bleed valves can be ordered as mounted accessories (mounted manifolds are supplied with a documented leak test) •...
  • Page 77 For an overview of the scope of the associated Technical Documentation, refer to the following: • Device Viewer (www.endress.com/deviceviewer): enter the serial number from the nameplate • Endress+Hauser Operations App: enter the serial number from the nameplate or scan the 2D matrix code (QR code) on the nameplate Standard documentation •...
  • Page 80 *71542677* 71542677 www.addresses.endress.com...
