Rimage Amigo II Reference Manual

Replace the Producer II
Use this procedure to set up your replacement unit when you are completing a rapid
exchange.
The term 'Producer II' is used throughout this document to refer to the Autostar II,
Protégé II, Amigo II, and AutoPrinter II.
 Note: The photos in this document are of the Autostar II, Protégé II, Amigo II, or
AutoPrinter II. Your system may not look exactly like the system pictured.
Before you begin:
1. Stop or pause all jobs.
2. Power off the external control center (PC).
3. Power off the Producer II.
4. Disconnect the power cord from the Producer II.
5. Remove the cover (Autostar II and Protégé II only).
1

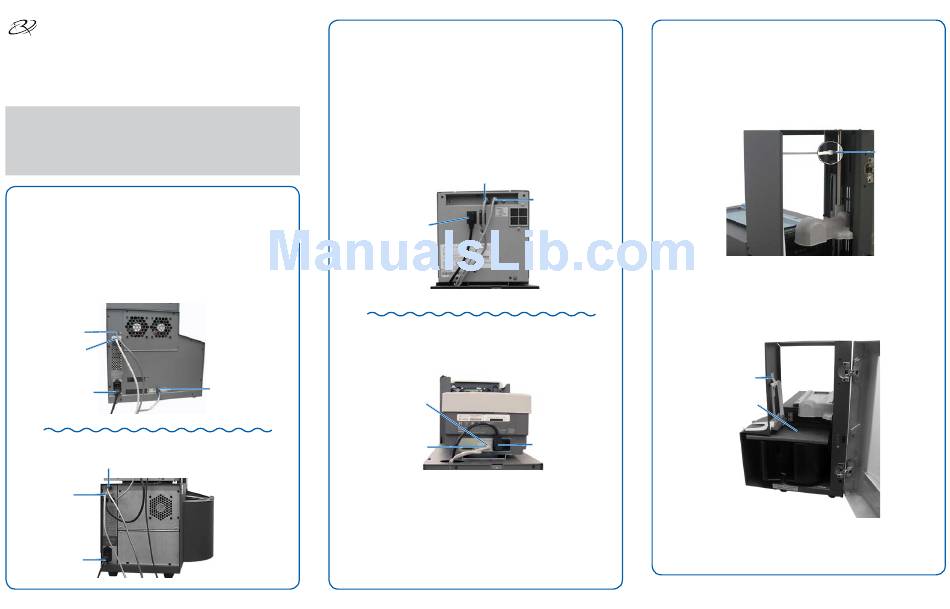

Disconnect the autoloader cables.
At the back of the Producer II, disconnect the cables:
• USB cable (Autostar II & Protégé II only)
• Power cord
• Serial cable
• FireWire Cable
Autostar II and Protégé II
USB Cable
Serial Cable
Power Cord
OR
Amigo II or AutoPrinter II
FireWire Cable (Amigo II only)
Serial Cable
(Amigo II only)
Power Cord
2000710_A
2
Disconnect the printer and autoloader cables.
a. At the back of the printer, disconnect the cables:
• Printer cable
• Printer power cord
• USB cable

Caution: Some cables in your system may be latched. Equipment
damage may occur if cables are not disconnected appropriately.
Everest printer
Printer Power Cord
OR
Prism printer
FireWire Cable
Printer Cable
b. Remove the printer from the autoloader and set it aside.

Caution: Lift the Everest printer with care; it is very heavy.
Printer Cable
USB Cable
USB Cable
Printer Power Cord
3
Pack the autoloader to return.
a. Tape the power cord and cables to the top of the autoloader.
b. Lower the lift arm.
c. Place a tie wrap around the belt, just below the pulley.
d. Insert the shipping foam just above the carousel.
e. Tape the mailbox feed tray to the side of the autoloader.
Tape
Foam
Tie Wrap
Continued on next page
