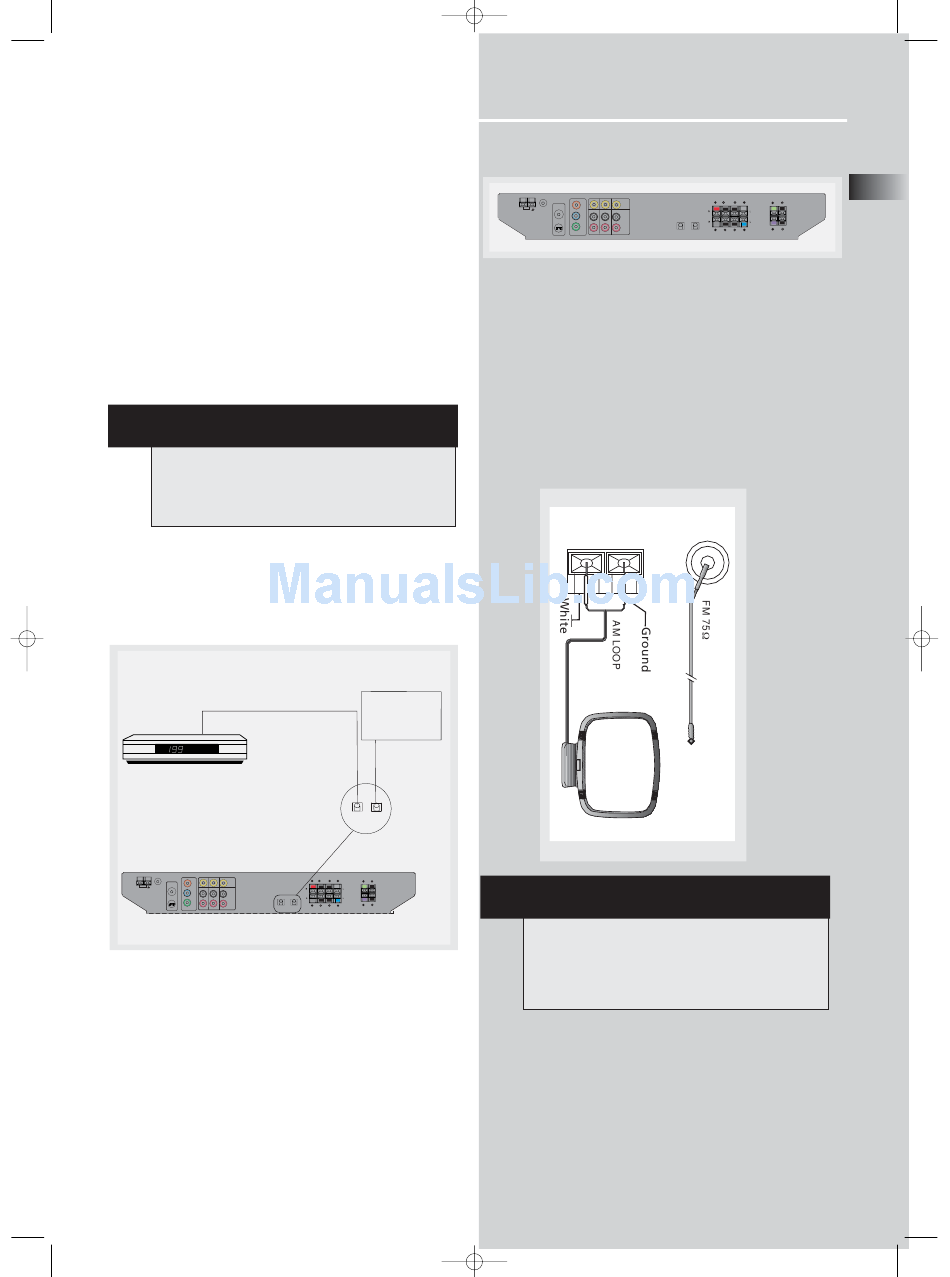

Digital Connections
If you have a SAT receiver DVD player or CD player with a
digital output, you can make use of an optical digital con-
necting cord (not supplied) to carry the audio portion of
the signal and enjoy Dolby Digital or digital stereo sound
quality. When optical cable is used, the analog audio
cables are still needed if recording through a tape or VCR is
desired. This receiver provides one optical input for the
connection of your components. Please connect your com-
ponents (e.g. DVD, SAT or CD) to the appropriate digital
inputs and select the appropriate source (see below).
NOTE
Optical cables carry only the audio
portion of the signal. A video connection must also
be established by connecting a video cable to the
(SAT) video input.
Read instructions carefully when connecting components to
the receiver.
Digital In Jacks can accept DTS, Dolby Digital (AC-3), or PCM
signals when compatible components are connected.
OPTICAL DIGITAL IN (AUDIO)
Optical Fiber Cable
Connect to optical digital output of DVD, CD,
SAT or other compatible devices.
SAT / DVD / CD Player
SAT
OUT OUT IN IN
Cr
MON VIDEO
AM OUT
FM
LOOP GND GND
Cb
L
AUDIO
Y
R
OUT IN IN
VCR SAT
10:09 AM Page 9
OPTICAL DIGITAL OUT
Connect to recording
device like CD, CDRW
player, DVD recorder,
mini disc etc.
OPTICAL OPTICAL
IN OUT
FRONT(8Ω)
CENTER
(8Ω)
OPTICAL OPTICAL SUB (4Ω)
REAR(8Ω)
IN OUT
Getting Started
Connecting the Antennas
DVD ONLY OUT IN IN
MONITOR
OUT
OUT Cr
VIDEO
AM
F M
LOOP
GND GND
Cb
L
AUDIO
Y
R
COMPONENT VIDEO
S-VIDEO OUT IN IN
DVD ONLY OUT (480P/480I) OUT
VCR SAT
The AM and FM antennas connect to the AM and FM ter-
minals on the system's back panel.
They must be hooked up in order to receive clear reception.
AM Loop Antenna and FM Indoor Antenna
1. Uncoil the AM Antenna wire.
2. Press down on the Antenna tab to open the terminal
Note: Make sure the white wire on the AM lop antenna is
inserted into the left terminal.
HINT
• For FM reception, extend antenna to its full
length and arrange the Antenna at different parts
of the room until the reception is optimized.
• For AM reception, rotate the antenna
horizontally to get better reception.
FRONT(8Ω)
CENTER
(8Ω)
OPTICAL OPTICAL SUB (4Ω)
REAR(8Ω)
IN OUT
