Advance Sound Control

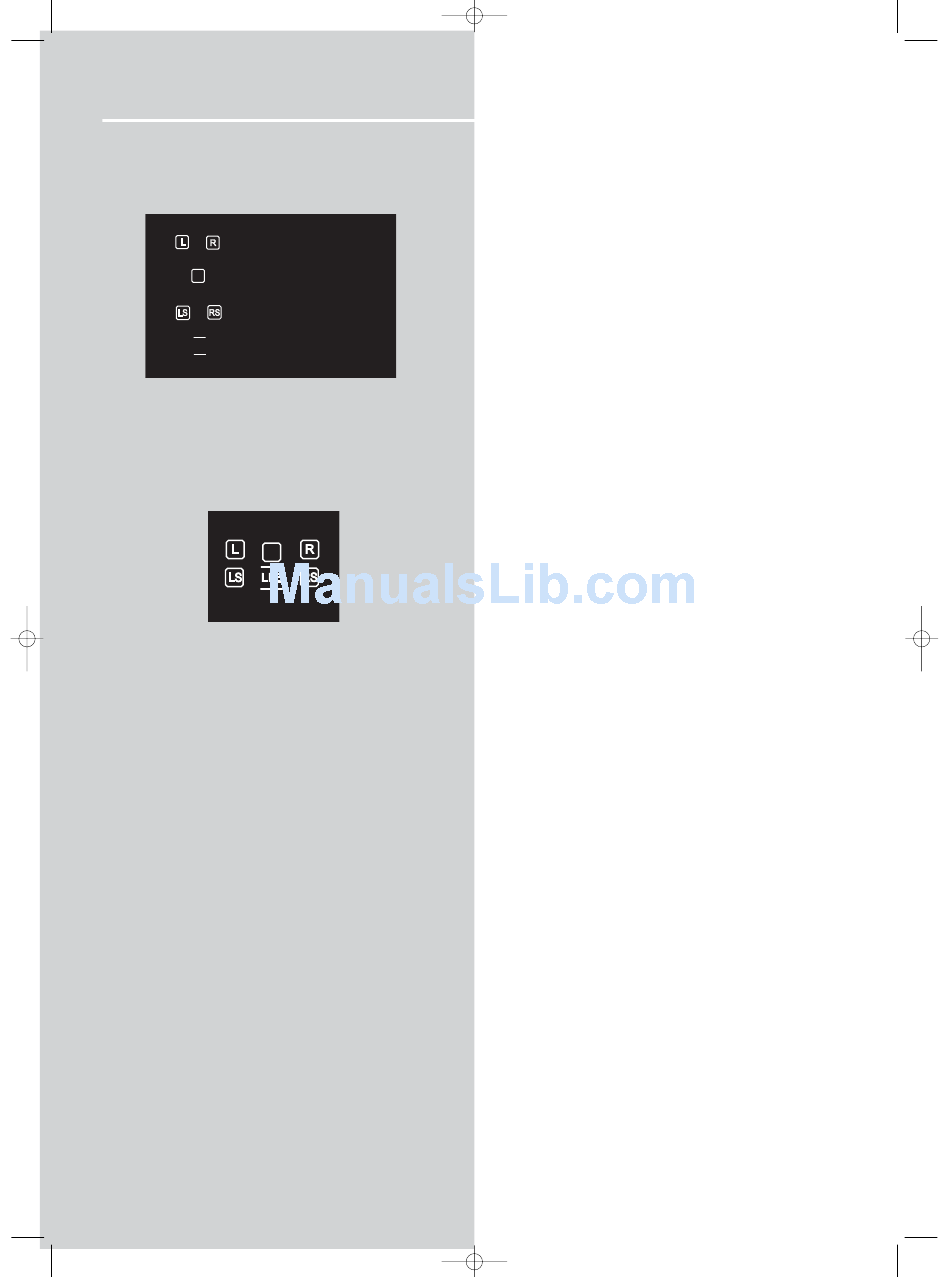

Speaker Icons
The receiver shows you the speaker' settings on the display
with the following icons:
C
LFE
Displaying Program Formats
When a digital source is playing, the receiver will automati-
cally switch to the proper surround mode and indicates on
the speaker icons on the right-hand side of the display. (See
diagram)
It is important to note, however, that not all Dolby Digital
sources are encoded with the full complement of five chan-
nels plus LFE*. Speaker icons show how many and which
speaker you have enabled (See "Fine Setting of the
Speakers") and the letters inside the speaker icons show
which channel is present in the source information. For
example, the diagram shown means you have all the five
speakers and subwoofer enabled and the digital sources
you played have five channels plus LFE complemented.
(Dolby Digital 5.1 Channels)
* LFE stands for Low Frequency Effect. The indication "LFE"
appears if the digital source contains LFE information. In
this case, the bass signal will be delivered to the subwoofer,
offering more dynamic deep bass sound effects. If the letter
is flashing, the signal is either too weak or just gone.
18
10:09 AM Page 22
Front Speakers
Center Speaker
Rear Speakers
Subwoofer Present
C
