Operating Your Receiver

1 6
BAND/APP
RANDOM
POWER

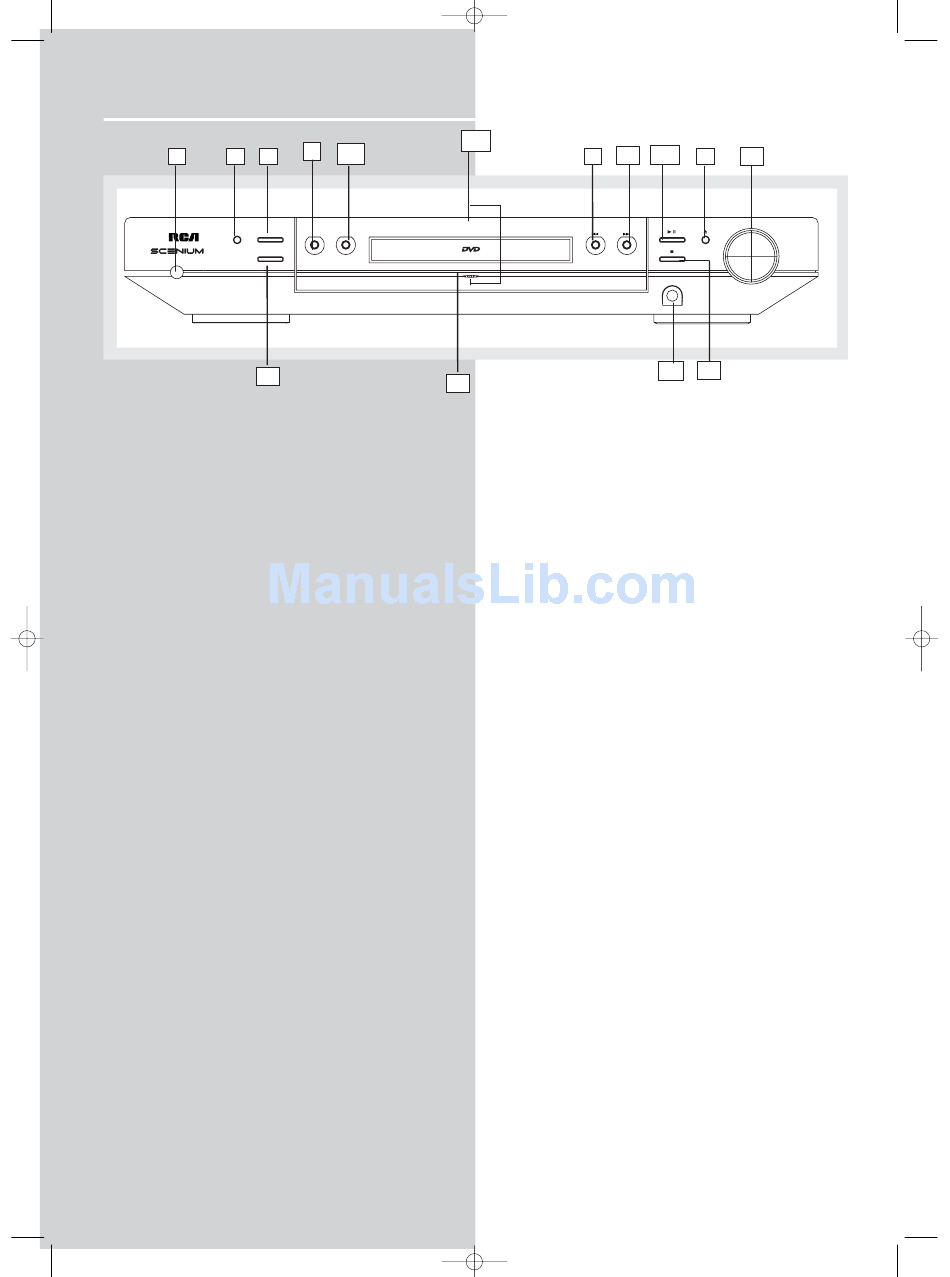

Receiver Controls

1. POWER / STANDBY
• To turn the unit on/ off. When the system is turned on, the
unit will go to Standby mode (red led will lit), then press the
SOURCE button on the unit to power the unit up in the last
mode used.
• When the unit is in standby mode, press the Source button to
power on the unit.
2. Source Buttons
• To select input source. For example, DVD/CD, VCR, etc.
3. SURROUND
• Press repeatedly to select the surround sound setting or
Digital Sound Processor (DSP) mode you want. Refer to
"Advanced Sound Control" on page 16.)
4. PRESET - / SKIP REVERSE
• To move back to the beginning/previous preset memory
location in tuner mode.
• To skip to the beginning/previous track in CD mode and the
beginning/previous chapter in DVD mode (only while playing).
5. PRESET + / SKIP FORWARD
• To go to the next preset memory location in tuner mode.
• To skip to the next track in CD mode and the next chapter in
DVD mode (only while playing).
6. BAND / APP / RANDOM
• In Tuner mode, press to select between radio BANDS or press
and hold to enter AUTO PROGRAM mode.
• In DVD/CD mode, press to activate Random function.
7. BASS / TREBLE / PROGRESSIVE
• To adjust BASS / TREBLE, press this button once to choose
either bass or treble, then press preset + and preset - to adjust
level. (Bass/ treble adjustment is not allowed for DTS source)
• Press and hold for progressive scan ON/OFF in DVD mode.
8. OPEN / CLOSE
• Slightly touch to open / close the front panel.
10
10:09 AM Page 14
7
13
2
SOURCE
BASS/TREBLE RPT/PROG.
SURROUND
PROGRESSIVE
3
8
5
4
-
PRESET PRESET
15
9. EJECT
• Press to eject the disc.
10. VOLUME
Turn the knob to adjust volume level.
11. PLAY/PAUSE
To play and pause DVD/CD playback.
12. STOP
To stop DVD/CD playback.
13. REPEAT (RPT) / PROGRAM (PROG)
• Press to choose different play mode in DVD/CD playback.
• In CD mode : refer to CD / MP3 player section.
• In DVD mode: refer to DVD player section.
14. PHONES
Plug your headphones (not supplied) into it for your private
enjoyment. Speakers will be off when phones are inserted.
15. BLUE LED
• When progressive scan is turned on, the blue led will lit.
• When in protection mode, the blue led will blink continuously,
• During panel up/down and power up, the led will blink for a
few seconds.
