Getting Started

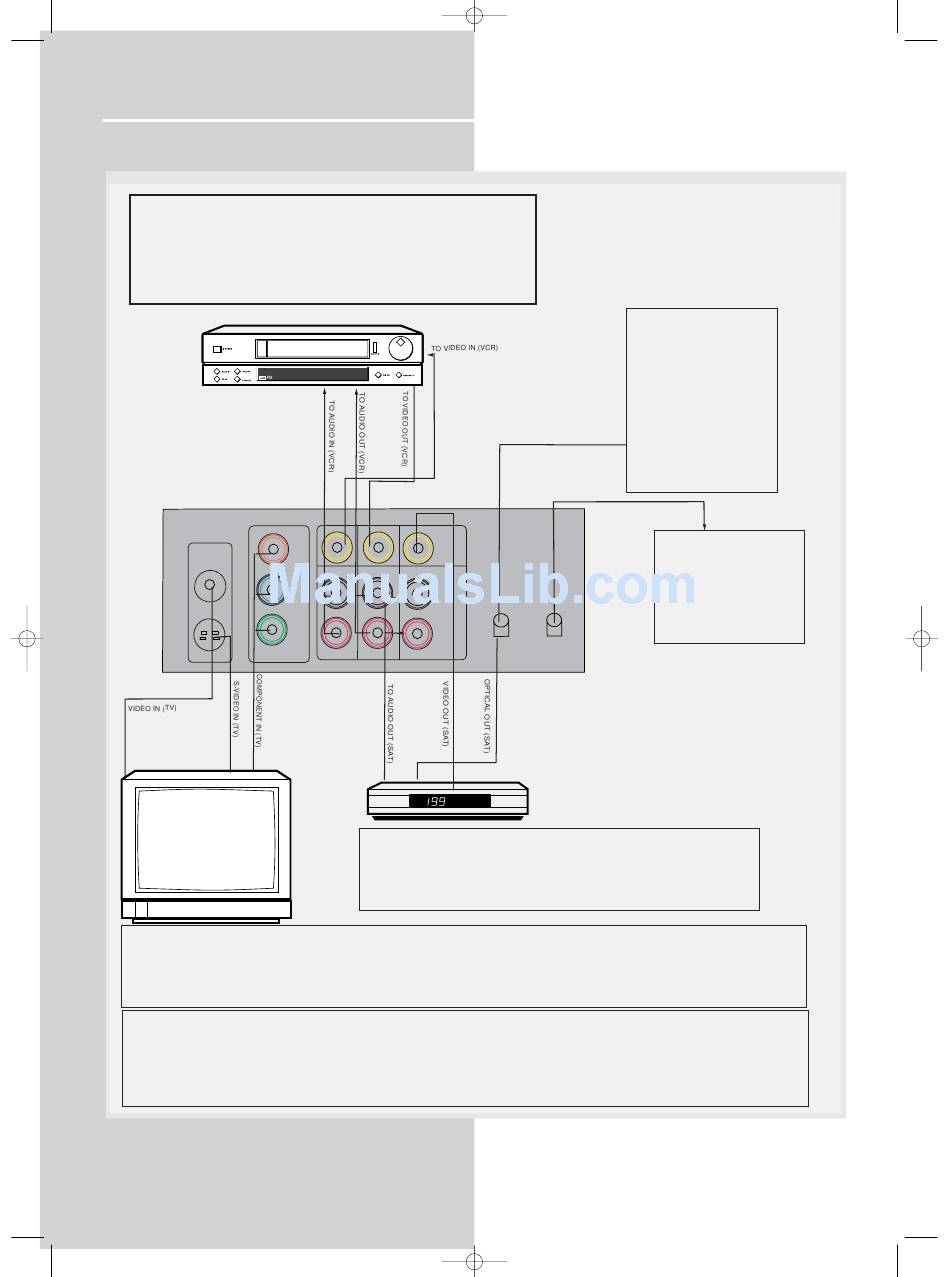

Connecting to Audio-Visual Components

ANALOG INPUT
Alternatively, if you have no VCR or SAT, you can connect any other
compatible components like TAPE player, TV to your DVD receiver via
the VCR/SAT input.
¥ VCR audio/video out will have output signal in SAT, DVD/CD and
TUNER modes. When VCR (source) is selected, there will be no
audio/video signal from VCR audio/video out.
MONITOR
OUT
OUT
S-VIDEO OUT
DVD ONLY
TV
Component video output
Component video terminal provides the best connection for video. By seperating the color information (Pb/Pr) and the
luminance signal (Y), the image is improved comparing with S-video or composite video connection (result may vary on
different TV / monitor). If your TV is equipped with these terminals (e.g. Y/Pb/Pr, Y/Cb/Cr, Y/B-Y/R-Y), use an appropriate
video cable (75 Ohm) and connect to the system. Make sure to match the terminal color.
Progressive Scan
¥ It is neccessary to use component video connection to enjoy progressive scan.
¥ Connect to a TV that has 480P input terminal or compatible with copy guard system, else the image will not be displayed
properly.
¥ If progressive scan is ON, there will be no video signal output at composite video (VCR OUT), s-video and composite video
monitor output.
4
10:09 AM Page 8
VCR
IN
DVD ONLY OUT IN
Pr
Pb
L
Y
R
COMPONENT VIDEO
IN
OUT IN
OUT (480P/480I)
VCR SAT
S-VIDEO
S-video provides a better connection for the video portion of the signal
than composite video (yellow color terminal). When connecting S-video
cable, a Composite video cable (yellow RCA connector) must also be
used. S-video will have video output for DVD playback only.
VIDEO
L
AUDIO
R
OPTICAL OPTICAL
IN OUT
SAT
DIGITAL INPUT
Connect components
capable of outputing
Dolby Digital (e.g. SAT)
or standard PCM (CD)
format digital signals.
Read section on "Input
Signal Setting" under
"Advanced Sound
Control" carefully to
adjust the matching
input settings.
DIGITAL OUTPUT
Connect components
capable of recording
digital signals (e.g. MD,
CD recorder player)
equiped with a optical
input.
