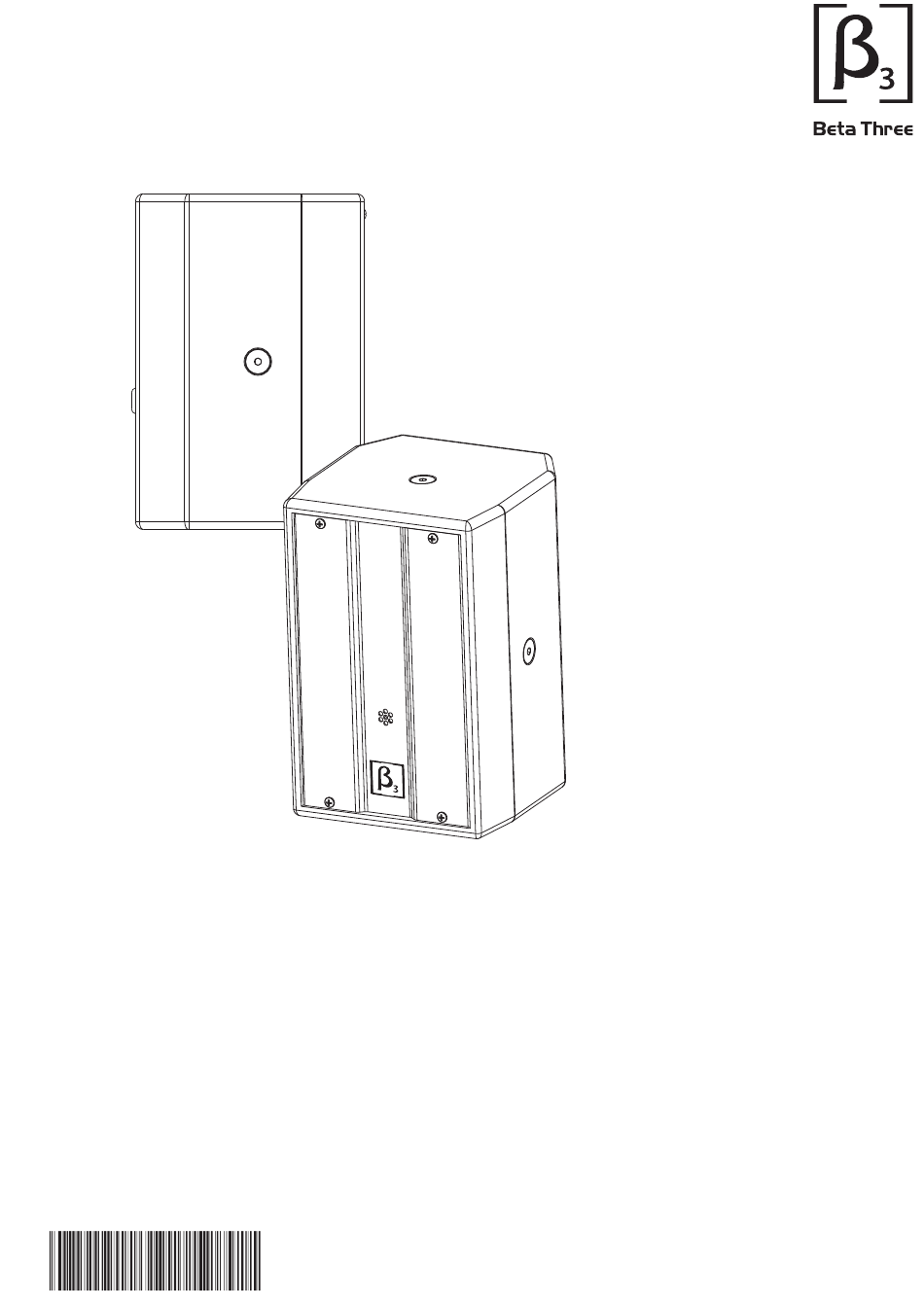

- Page 1 MU401a 4" Two Way Active Full Range Speaker MU Series Pro Loudspeaker System User Manual U M - M U 4 0 1 a - 2 0 1 7 0 5 1 9 Ve r A...
- Page 2 SAFETY INSTRUCTIONS PLEASE READ THIS MANUAL FIRST Thank you for a buying product. Read this manual first as it will help you operate the system properly. Please keep this manual for future reference. WARNING: This product must be installed by professionals. When using hanging brackets or rigging other than those supplied with the product, please ensure they comply with the local safety codes.
-
Page 3: Table Of Contents
MU401a CONTENT MU Series Pro Loudspeaker System CONTENT PRODUCT INTRODUCTION Main Features Product Description Applications AMPLIFIER MODULE Introduction Of Amplifier Module INSTALLATION Installation Accessories Installation Reference TECHNICAL SPECIFICATION Technical Sheet Frequency Response And THD Curve 2D Dimension Product information may be updated without notification, please visit www.beta3pro.com for... -
Page 4: Product Introduction
MU401a PRODUCT INTRODUCTION MU Series Pro Loudspeaker System MU401a 4" Two Way Active Full Range Speaker Main Features With 4 inches all frequency unit and 25 core compression of small column speaker. New generation Class-D amplification for MF / LF, Class-AB for HF. -
Page 5: Amplifier Module
MU401a AMPLIFIER MODULE MU Series Pro Loudspeaker System Introduction Of Amplifier Module INPUT CONTROL STANDBY ENABLE DISABLE VOLUME STANDBY PEAK SIGNAL ACTIVE OUTPUT MU401a POWER(RMS): 50W POWER(PROGRAM): 100W POWER(MAX): 200W CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN AC INPUT: 240V~50Hz FUSE: T2.5AL/250V... -
Page 6: Installation
MU401a INSTALLATION MU Series Pro Loudspeaker System Installation Accessories(Optional) Installation Reference 1.Hanging A(L-Bracket) The standard flying mounting hardware is very convenient for different installations and applications. 1.Wall bracket 2. L-Bracket 2.Hanging B 3.Hanging C(L-Bracket) Warning: Always ensure the mounting accessories safety factor is not less than 5:1 or that it meets the local standards. -
Page 7: Technical Specification
MU401a TECHNICAL SPECIFICATIONS MU Series Pro Loudspeaker System Specification Frequency response(-3dB): 100Hz-20kHz Max.SPL(1m): 101dB/107dB(PEAK) Dispersion: Horizontal 90 Vertical 90 4" Woofer, 8ohm Transducer: " textile dome tweeter ohm Input: one channel balanced input XLR for input, XLR for output Connector:... -
Page 8: Dimension
MU401a TECHNICAL SPECIFICATIONS MU Series Pro Loudspeaker System Dimensions Top view 144mm [5.7in] Side view Front view Back view Bottom view... - Page 9 Notes:...
- Page 10 Made In PRC Designed In Germany...
