Beta Three MU Series User Manual

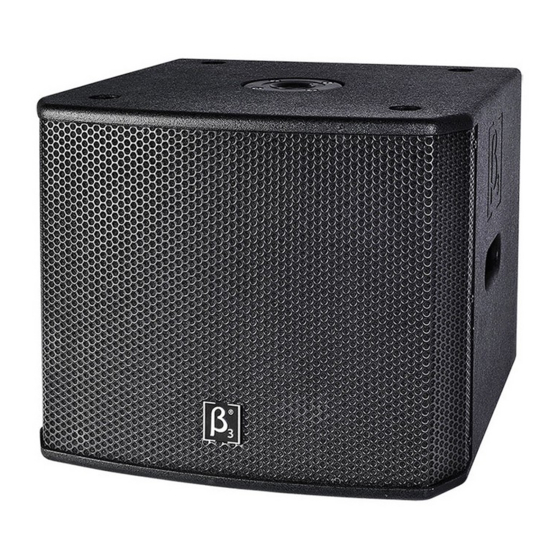

18" subwoofer pro loudspeaker system
Hide thumbs
Also See for MU Series:
- User manual (11 pages) ,
- User manual (11 pages) ,
- User manual (10 pages)
Related Manuals for Beta Three MU Series
Summary of Contents for Beta Three MU Series
- Page 1 MU18B 18" subwoofer MU Series Pro Loudspeaker System User Manual U M- MU 1 8 B - 2 0 0 9 0 9 2 8 v e r A...
- Page 2 SAFETY INSTRUCTIONS PLEASE READ THIS MANUAL FIRST Thank you for a buying product. Read this manual first as it will help you operate the system properly. Please keep this manual for future reference. WARNING: This product must be installed by professionals. When using hanging brackets or rigging other than those supplied with the product, please ensure they comply with the local safety codes.
-
Page 3: Table Of Contents
MU18B CONTENT MU Series Pro Loudspeaker System CONTENT INTRODUCTION Features Description Applications CONNECTION Terminal Plate NL4 Connection System Connection Reference Loudspeaker Connection INSTALLATION Installation Accessories Installation Reference TECHNICAL SPECIFICATION Technical Sheet Frequency Response And Impedance Curve Frequency Response And Impedance Curve... -
Page 4: Introduction
MU18B INTODUCTION MU Series Pro Loudspeaker System MU18B 18" subwoofer Feature Single 18" phase inverted subwoofer. Sensitivity is 97dB, Max. SPL is 124dB. Rated power is 500W, peak power is 2000W. Powder coated grille can be used outdoors for 5 years. -
Page 5: Connection
MU18B CONNECTION MU Series Pro Loudspeaker System Two NL4 connectors are available for amplifier connections. Paralelled connector is very convenient for another speaker connection. Terminal Plate MU18B Warranty does not cover damage caused 1+ 1- INPUT by incorrect installation, operation or overload. -
Page 6: Loudspeaker Connection
MU18B CONNECTION MU Series Pro Loudspeaker System Speaker Wiring 1. Banana plugs to NL4 Connect to amplifier Connect to speaker 2. NL4 to NL4 Connect to amplifier Connect to speaker 3. Consumption curve of connection cable(Only for reference, the result is different if adopting the different cables) -
Page 7: Installation
MU18B INSTALLATION MU Series Pro Loudspeaker System Mounting Accessories Installation Reference The support flange in the top of MU18B is for the pole 1. Stack mounting application with MU12/MU15. MU12/MU15 MU18B Warning: Make sure the mounting accessories safety factor not less than 5:1 or meet the local... -
Page 8: Technical Specification
MU18B TECHNICAL SPECIFICATION MU Series Pro Loudspeaker System Specification Speaker Testing Method System: Passive low-frequency s peaker 1. Frequency response Woofer : 1 x 18" Woofer Use Pink noise to test the speaker in the anechoic room, adjust the level to make the speaker work at its rated... -
Page 9: 2D Dimension
MU18B TECHNICAL SPECIFICATION MU Series Pro Loudspeaker System 2D Dimension Top view 600mm [23.62in] Front view Side view Back view Bottom view... - Page 10 Notes:...
