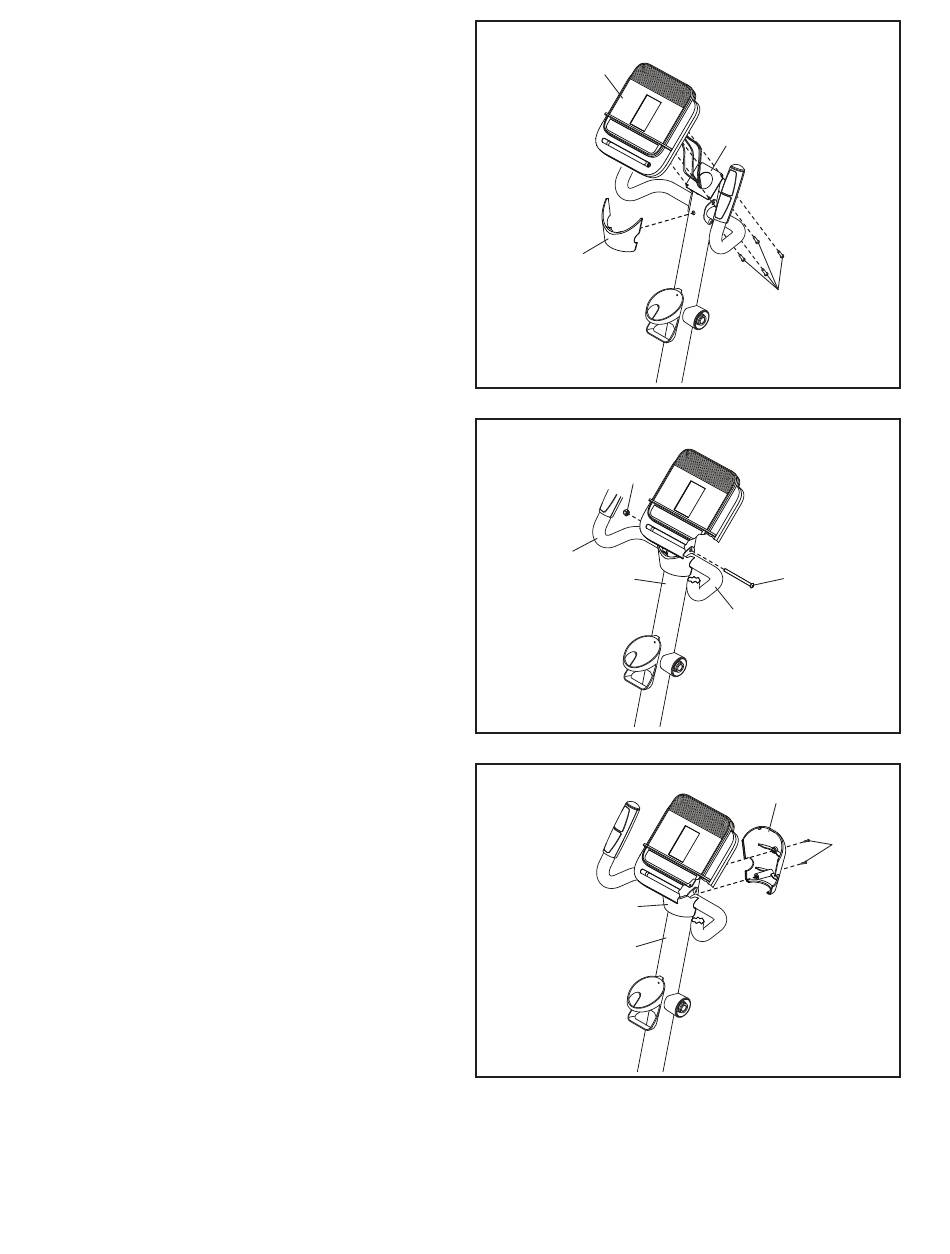

9. Insert the excess wire into the Upright (2) or into
the Console (23).
Press the Rear Upright Cover (75) into the
Upright (2). Have a second person hold the Rear
Upright Cover in place.
Tip: Avoid pinching the wires. Attach the
Console (23) to the Upright (2) with four
M4 x 16mm Screws (52); start all the Screws,
and then tighten them.
10. Finish attaching the Left and Right Handlebars
(85, 86) to the Upright (2) with an M8 x 77mm
Bolt (79) and an M8 Jam Nut (38).
Tip: While inserting the M8 x 77mm Bolt (79),
avoid pinching or damaging the wires inside
the Upright (2).
See step 6. Tighten the M8 x 77mm Bolt (79).
11. Attach the Front Upright Cover (81) to the
Upright (2) and to the Rear Upright Cover (75)
with two M4 x 16mm Screws (52).
9
23
75
10
38
85
2
11
75
2
11
Avoid pinching
the wires
2
52
79
86
Avoid pinching
the wires
81
52
