8� Once the range is placed into its final location, place a carpenter's level on the oven floor to ensure that the
range is level from side to side and front to back�
NOTE: The range must be level for optimal cooking and baking performance� Use a wrench to adjust the height
of the leveling legs until the range is level from side to side and front to back�

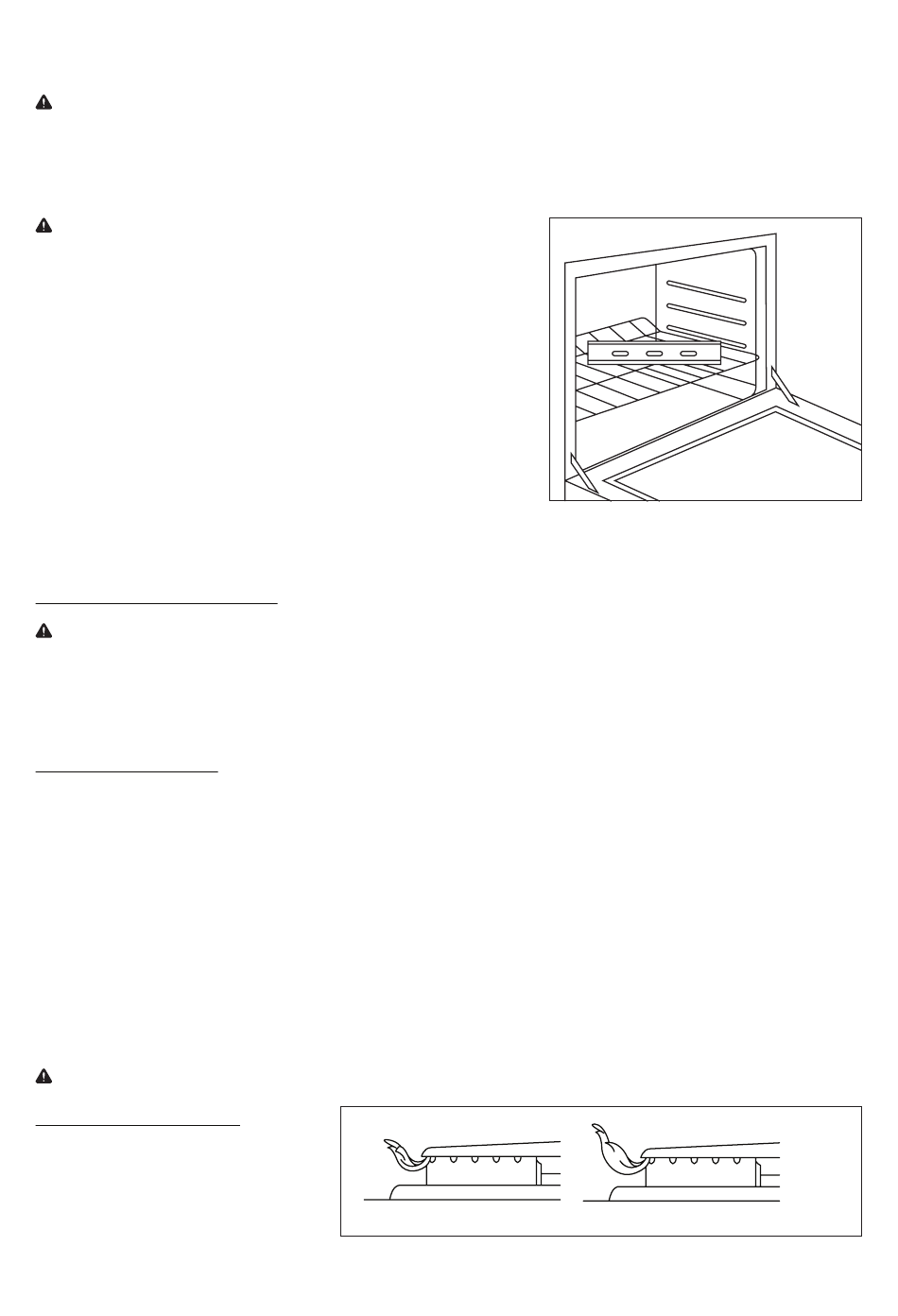

HOW TO LEVEL THE RANGE

IMPORTANT: The range MUST be level for optimal cooking and
baking�
1� To adjust the leveling legs of the range, it must first be pulled
forward to disengage itself from the anti-tip bracket�
2� Place a standard flat rack in oven�
3� Place the level on the rack�
4� Use a wrench to adjust the leveling legs up or down until the
range is level�
5� Once level, push the range back into position� Check to ensure
the rear foot is engaged in the anti-tip bracket�

HOW TO CHECK OPERATION

Electronic Burner Ignition System
NOTE: The cooktop and oven burners use electronic igniters in place of standing pilots�
• Cooktop Ignition: When the cooktop control knob is turned to the "Lite" position, the system creates a
spark to light the burner� The sparking continues, as long as the control knob is turned to "Lite"�
• Oven Ignition: When the oven control is turned to the desired setting, sparking will occur and ignites the gas�
Standard Surface Burners
Push in and turn the control knob to the "Lite" position� The flame should light within 4 seconds� The first time a
burner is lit, may take longer than 4 seconds to light due to air in gas lines� Try each burner in succession until all
burners have been checked�
What to do if burners do not light properly:
1� Turn all burner control knobs to the "Off" position�
2� Check to see that the range is plugged in� Also check that the circuit breaks has not tripped or the house
fuse has not blown�
3� Check the gas shut-off valves are set to the open position�
4� Check the burner caps are properly positioned on each burner base�
NOTE: If the burner continues not to light then contact your dealer or authorized service company for assistance�
How to Adjust Flame Height
Adjust the height of top burner flames�
The cooktop "Low" burner fame should
be a steady blue flame approximately
1/4" (0�64 cm) high�
Low Flame
15
Figure 15
Figure 16
High Flame
