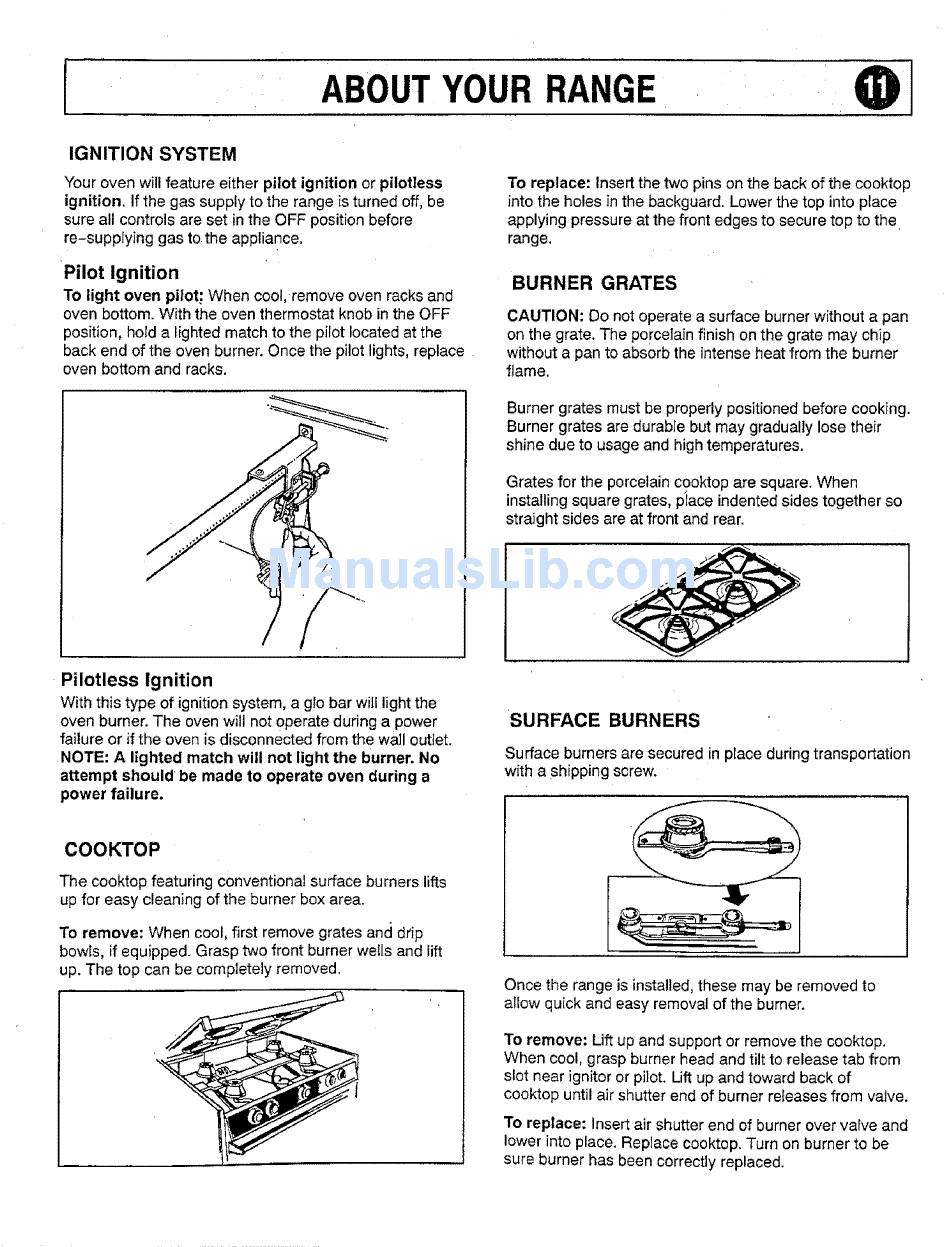

ABOUT YOUR RANGE (])l
IGNITION SYSTEM
Your oven will feature either pilot ignition or pilotless
ignition. If the gas supply to the range is turned off, be
sure all controls are set in the OFF position before
re-supplying gas to the appliance.
Pilot Ignition
To light oven pilot; When cool, remove oven racks and
oven bottom. With the oven thermostat knob in the OFF
position, hold a lighted match to the pilot located at the
back end of the oven burner. Once the pilot lights, replace
oven bottom and racks.
Pilotless Ignition
With this type of ignition system, a gro bar will light the
oven burner. The oven will not operate during a power
failure or if the oven is disconnected from the wall outlet.
NOTE: A lighted match will not light the burner. No
attempt should be made to operate oven during a
power failure.
To replace: Insert the two pins on the back of the cooktop
into the holes in the backguard. Lower the top into place
applying pressure at the front edges to secure top to the
range.
BURNER GRATES
CAUTION: Do net operate a surface burner without a pan
on the grate. The porcelain finish on the grate may chip
without a pan to absorb the intense heat from the burner
flame.
Burner grates must be properly positioned before cooking.
Burner grates are durable but may gradually lose their
shine due to usage and high temperatures.
Grates for the porcelain cooktop are square. When
installing square grates, place indented sides together so
straight sides are at front and rear.
SURFACE BURNERS
Surface burners are secured in peace during transportation
with a shipping screw.
COOKTOP
The cooktop featuring conventional surface burners lifts
up for easy cleaning of the burner box area.
To remove: When cool, first remove grates ancJdrip
bowie, if equipped. Grasp two front burner wells and tilt
up. The top can be completely removed.
Once the range is installed, these may be removed to
allow quick and easy removal of the burner.
To remove: Lift up and support or remove the cooktop.
When cool, grasp burner head and tilt to release tab from
slot near ignitor or pilot. Lift up and toward back of
cooktop until air shutter end of burner releases from valve.
To replace: Insert air shutter end of burner over valve and
lower into place. Replace cooktop. Turn on burner to be
sure burner has been correctly replaced.
