Summary of Contents for Magic Chef M24GR

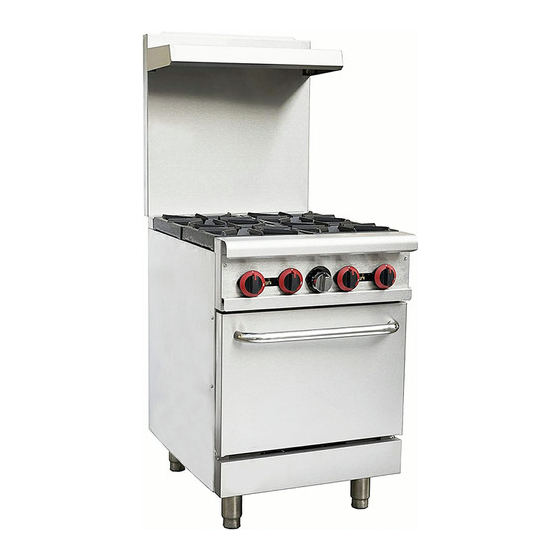

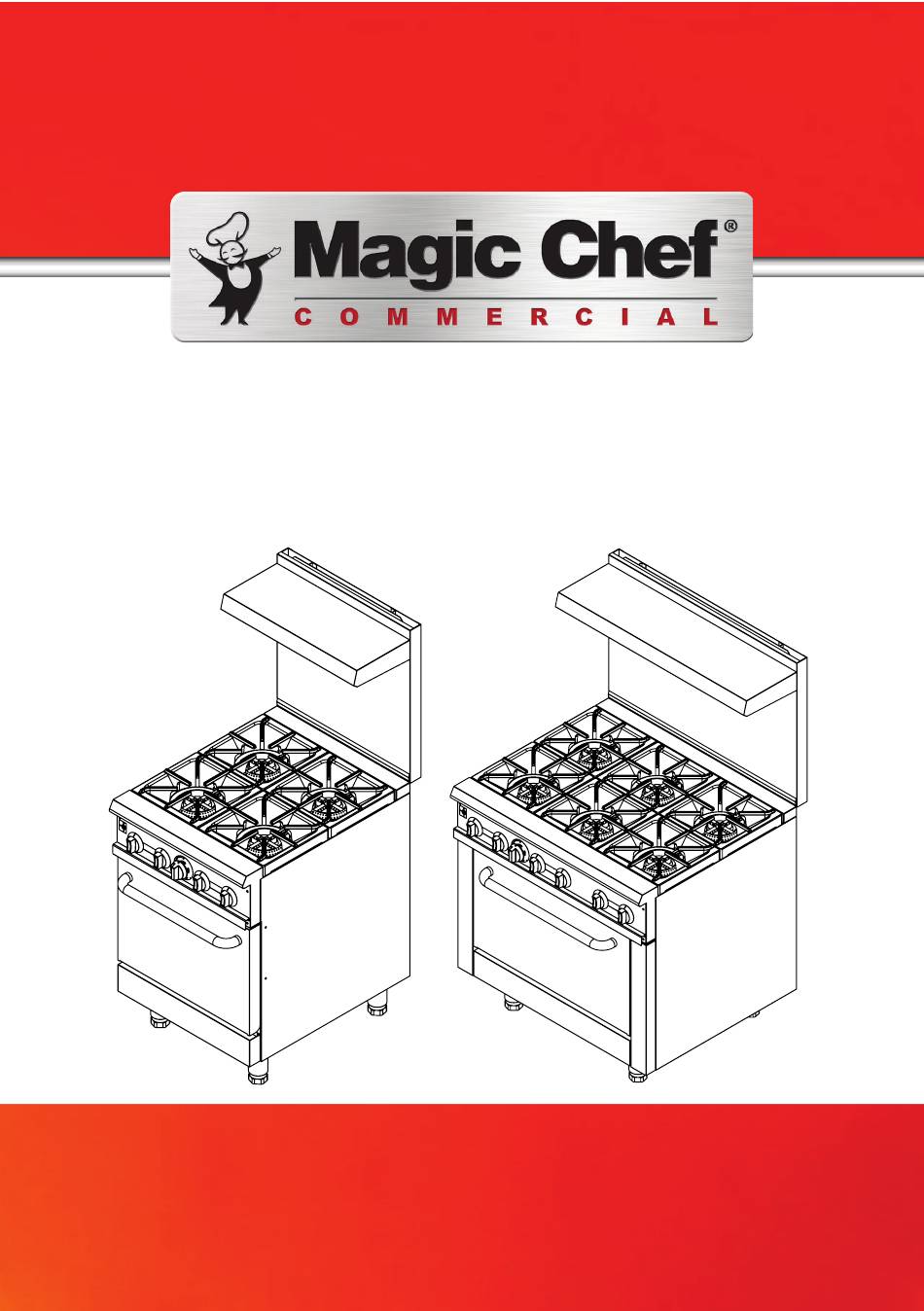

- Page 1 Commercial Gas Stockpot Range User's Manual Model M24GR / M36GR PLEASE READ THIS MANUAL CAREFULLY BEFORE USING YOUR COMMERCIAL STOCKPOT RANGE AND KEEP IT FOR FUTURE REFERENCE.
-
Page 2: Product Registration
PRODUCT REGISTRATION Thank you for purchasing a Magic Chef Commercial product. The first step to protect your new product is to complete the product registration on our website: www.mcappliance.com/register. The benefits of registering your product include the following: Registering your product will allow us to contact you regarding a safety notification or product update. -
Page 3: Table Of Contents
CONTENTS PRODUCT REGISTRATION ........... . . 2 PRECAUTIONS . -
Page 4: Precautions
PRECAUTIONS EXPLANATION OF SYMBOLS WARNING Hazards or unsafe practices which COULD result in severe personal injury or death. CAUTION Hazards or unsafe practices which COULD result in minor personal injury or property damage. WARNING: Read and understand all safety precautions. Failure to follow all instructions described in this user manual may result in electric shock, fire and/or serious personal injury. -
Page 5: Important Safety Instructions
IMPORTANT SAFETY IN STRUCTIONS WARNING: When using gas appliances, basic safety precautions should be followed, including the following: Read all instructions before using the appliance. The appliance must be installed in accordance with required codes: In the United States: State and local codes, or in the absence of local codes: National Fuel Gas Code, ANSI-Z223.1/NFPA #54 (latest edition). - Page 6 Operating the appliance incorrectly or improper maintenance may lead to gas leakage or deflagration. The manufacturer is not responsible for fire or accidents resulting from by improper operation or maintenance. DO NOT put any flammable objects or materials on or near the burners. When first using, it may take a little longer to light due to the air existing in the new pipe.
-
Page 7: Specifications
(W x H x D) Pressure Pressure (PSI/W.C.) (PSI/W.C.) 0.144 PSI 0.36 PSI 24.0” x 59.9” x 32.6” 291 lbs. M24GR 151,000 151,000 610 x 1522 x 828 (mm) (132 kg) 4” W.C. 10”W.C. 36.0” x 59.9” x 32.6” 368 lbs. -
Page 8: Installation Instructions
INSTALLATION INSTRUCTIONS TRANSPORTATION AND STORAGE During transportation, the cooking equipment should be carefully handled. DO NOT place it upside down. The equipment should be stored in a well ventilated warehouse away from corrosive gas. If it needs to be stored outside temporarily, make sure it does not come in contact with rain. - Page 9 The appliance should have a minimum clearance of 12” from combustible construction at the sides and 10” at the rear. Clearance from non-combustible construction is 6” on all sides the back When installing, be aware of the weight of the range. It is recommended to install on the floor. This device is not intended for built-in installation.
-
Page 10: Operating Instructions
OPERATING INSTRUCTIONS CLEANING BEFORE USE New units are wiped down at the factory to remove any visible signs of dirt, oil, grease, etc. remaining from the manufacturing process. Before any food preparation, thoroughly wipe protective oil from all surface parts with hot soapy water to remove any film residue and dust or debris. -
Page 11: Care And Maintenance
CARE AND MAINTENANCE ROUTINE INSPECTION Before using, make sure that the device is level and there is no visible damage. Make sure the fire hole on the burner is clear, and that the gas inlet is not damaged. Check for any odors or vibrations, and that the burner flames are normal. -
Page 12: Troubleshooting
TROUBLESHOOTING Aforementioned issues are just for reference. If any failure occurs, please stop using and contact a professional technician to check and repair. ALWAYS be safe and shut off the power supply and gas supply before performing any maintenance. Problem Possible Causes Solutions Gas pressure is too low... -
Page 13: Limited Warranty
Some states prohibit the exclusion or limitation of incidental or consequential damages, or limitations on implied warranties. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. Model Parts & Labor Type of Service M24GR One Year In Field Service M36GR One Year In Field Service For Service or Assistance please call 888-775-0202 or visit us on the web at www.mcappliance.com to request warranty service... - Page 14 CNA International, Inc. d/b /a MC Appliance Corporation. All rights reserved. Magic Chef® logo is a registered trademark of CNA International, Inc. www.mcappliance.com Printed in China...
