Page 1

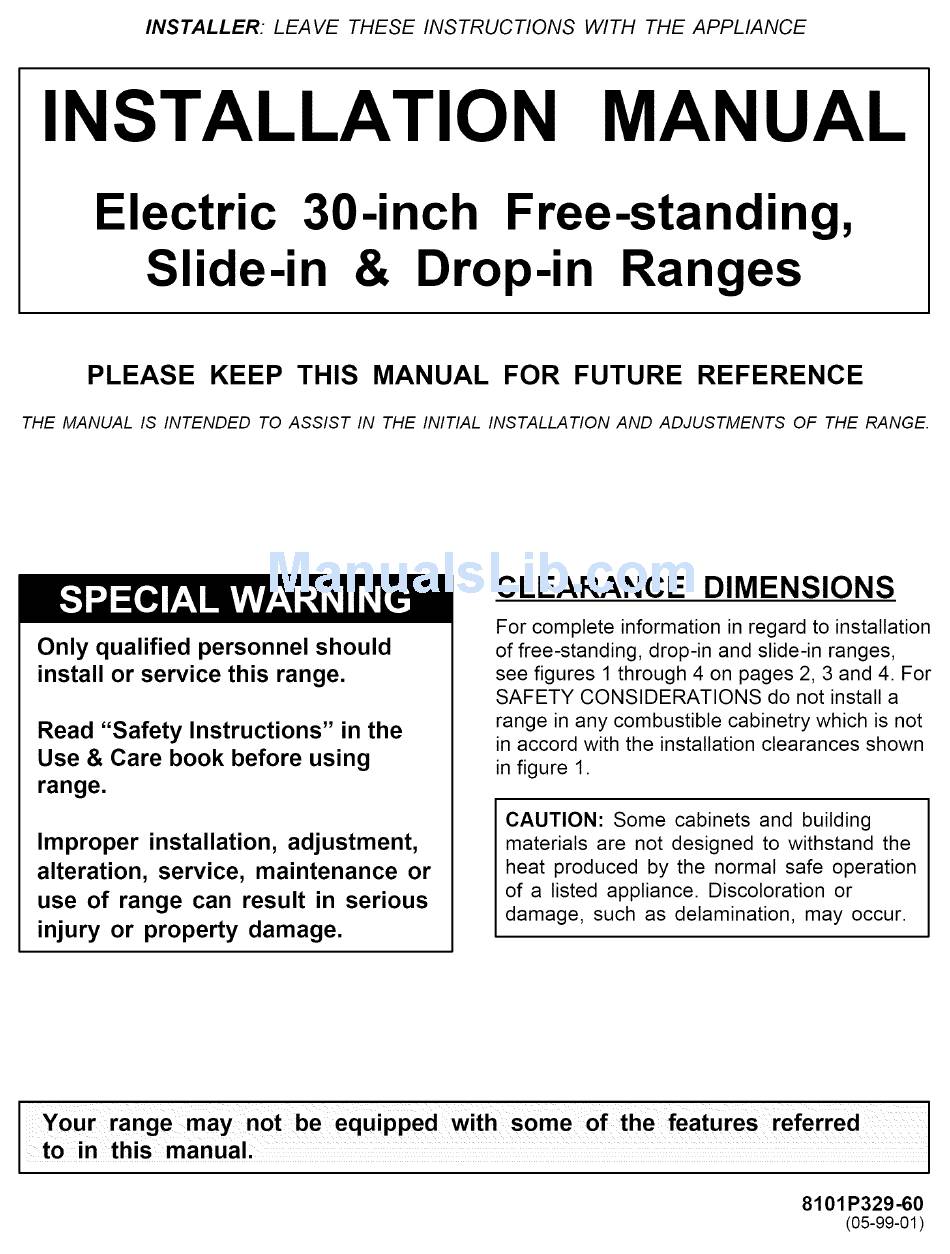

INSTALLER: LEAVE THESE INSTRUCTIONS WITH THE APPLIANCE INSTALLATION MANUAL Electric 30-inch Free-standing, Slide-in & Drop-in Ranges PLEASE KEEP THIS MANUAL FOR FUTURE REFERENCE THE MANUAL IS INTENDED TO ASSIST IN THE INITIAL INSTALLATION AND ADJUSTMENTS OF THE RANGE. CLEARANCE DIMENSIONS For complete information in regard to installation...
MOBILE HOMES INSTALLATION DRAWINGS The installation of a range designed for mobile home installation must conform with the Manufactured Home Construction and Safety Standard, Title 24 CFR, Part 3280 (formerly the Federal Standard for Mobile Home Construction and Safety, Title 24 HUD, Part 280) or, when such standard is not applicable, the Standard for Manufactured Home Installations 1982 (Manufactured Home Sites, Communities and Set-Ups), ANSI...
Page 3
.,>- 25" NORMAL COUNTER TOP DEPTH 24" DEPTH . PROVIDE FOR 120/208, 120/240 VOLT OUTLET PER APPLICABLE CORD IN THIS AREA. FIGURE 2 NOTE: ON CABINET TOPSWITH FORMEDFRONTEDGE,SHAVE RAISEDSECTIONTO CLEARTOP. PROVIDEFOR 1201208, BEFOREATTEMPTING 120/240VOLTOUTLET INSTALLATION, ADJUST PERAPPLICABLE RANGELEVELINGLEGS CORDIN THISAREA. TOACCOMMODATE THIS DIMENSION.
ANTI-TIP DEVICE INSTALLATION INSTRUCTIONS WARNING: A risk of range tip-over exists if the appliance to the wall with the two screws provided as shown is not installed in accordance with the provided installation in figure 6. Proceed to STEP 3. instructions.
Page 6
CONNECTING THE RANGE ELECTRIC SUPPLY RANGE CONNECTIONS Some models are shipped direct from the factory with The range must be installed in accordance with Local and service cords (pigtails) attached. There are no range National Electric Code (NEC) ANSI/NFPA No. 70-latest connections necessary on these models.
Page 7
CONNECTING THE RANGE FIGURE FIGURE 3-Wire Service Cord Installation 3-Wire Conduit Installation 1. Insure that the copper ground strap IS CONNECTED The range conduit must be routed and properly between the middle post of the main terminal connected to an approved electrical junction box connection block and the range chassis.
Page 8
CONNECTING THE RANGE FIGURE 4-Wire Service Cord Installation THIS P_ITION MUST RE_VED (Mobile Homes Or As Required By Codes) RED _ GRINDING STRAP _ITE_ TERMINAL 1. The copper ground strap connected between the BLACK _NNECEION BLOCK neutral (middle) post of the main terminal block and the chassis MUST be cut off as shown in figure 10.
Page 9
FIGURE 4-Wire Conduit Installation (Mobile Homes Or As Required By Codes) 1. The range conduit must be routed and properly connected to an approved electrical junction box behind the range. 2. The red and black wires from the range conduit must respectively connect to the red and black service wires.
