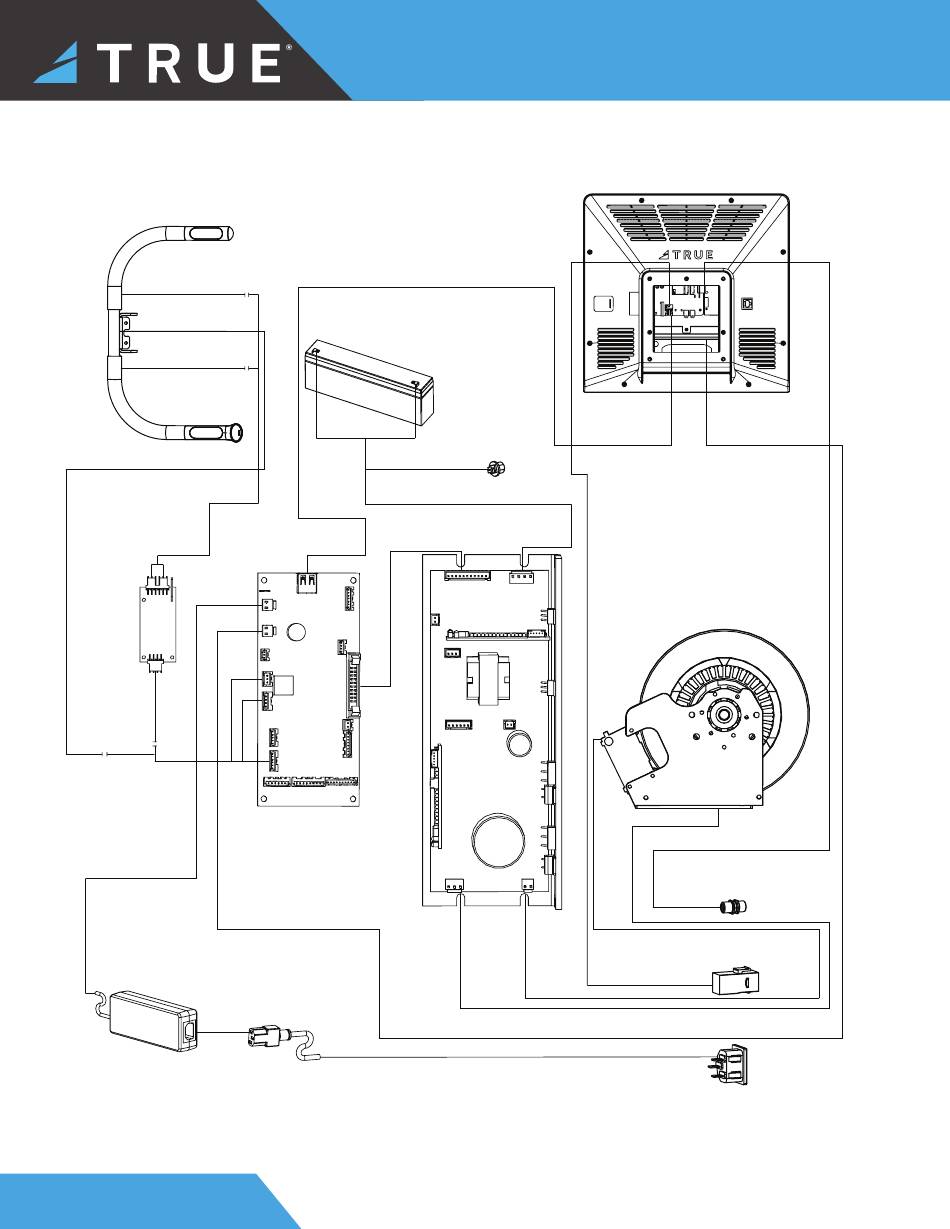

RC900 WIRING DIAGRAM (OPTIONAL AUXILIARY POWER SUPPLY)
CONSOLE
HANDLEBAR
RCS0413BK
USB RCS0109
Heart Rate Left RCS0112
BATTERY
Thumbswitches RCS0113
00588800
Heart Rate Right RCS0112
CHARGING
PORT
RCS0375
COMBO
RCS0120
HEART RATE
BOARD
LOWER CONTROL BOARD
NUCLEUS BOARD
00614200
00591500
RCS0008
00612700
BRAKE GENERATOR
RCS0416
RCS0108
RCS0107
Power In RCS0111
COAX CONNECTOR
CB8R007
Power Out RCS0110
NETWORK CONNECTOR
RCS0012
POWER SUPPLY
00595500
RCS0015
POWER CORD
RCS0009
00560402
POWER PLUG
PS0037
40
