AudioCodes RX-PAD Meeting Room Controller
Note:
•
'MTRfA' in this guide refers to RXV81 | RXV200
•
MTRfA = Microsoft Teams Room for Android
1. Physical Description

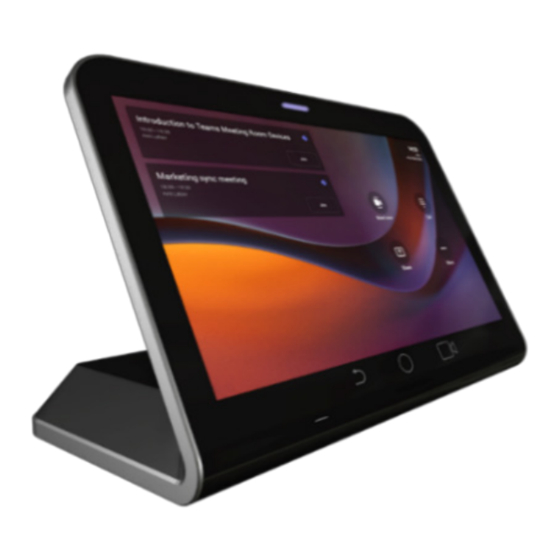

The figure below shows AudioCodes' RX-PAD Meeting Room Controller. See
2. Checklist: Shipped Items
Make sure you received the following in the shipped box:
Ethernet cable
Power Supply (PS) (not supplied but can be ordered separately)
3. Positioning
Position RX-PAD on the table for optimal management. Use this figure as reference.
Pairing Guide
P a g e
here
| 1
for detailed information.

Advertisement

loading

Related Manuals for AudioCodes RX-PAD

Summary of Contents for AudioCodes RX-PAD

  • Page 1 Make sure you received the following in the shipped box: Ethernet cable  Power Supply (PS) (not supplied but can be ordered separately)  3. Positioning Position RX-PAD on the table for optimal management. Use this figure as reference. P a g e...
  • Page 2 Network port (PoE) Access the connector ports by unscrewing the two screws to remove their cover. 5. Powering up (PoE) After connecting the Ethernet cable to the network port (ETH) of the device, RX-PAD powers up. 6. General Pairing pre-requisites Make sure: No physical blocks exist between RX-PAD and the MTRfA device.
  • Page 3  To get started: After powering up, RX-PAD displays the 'Languages' page. Make sure both RX-PAD and the MTRfA are connected to the network and then select a language. Tap PAIR; an RXV-PAIR process is automatically activated between RX-PAD and the MTRfA.
  • Page 4 Enter the code using the RX-PAD keyboard, and then select Next. Enter your email or Teams username and select Next -OR- click the account to sign in with. P a g e...
  • Page 5 After sign-in to RX-PAD is finished, use the Remote Keyboard application that pops up on RX-PAD to sign in to the MTRfA. RX-PAD Tap Remote Keyboard to enter the same credentials on the MTRfA. MTRfA RX-PAD Enter your Password. P a g e...
  • Page 6 After sign-in on both devices is complete, click Search again; the MTRfA (Serial Number) bundled with RX-PAD becomes available for selection. On the MTRfA, view a message indicating that both devices are not paired at the Teams level; the message disappears after they’re paired.
  • Page 7 After Microsoft’s pairing process finishes, view an All set! indication on each device. MTRfA RX-PAD After a few moments, the indication disappears and you’ll view the home page with controls of the MTRfA displayed on RX-PAD. MTRfA RX-PAD P a g e...
  • Page 8 9. Using RX-PAD Use this table as reference to the figure above: Description ‘Back’ button; press to return to the screen previously accessed. Press to return to the home screen from any screen. Long-press to open the device’s ‘Settings’ screen.

  • Page 9: Specifications

    10. Specifications Feature Specification Display Landscape Touch 8” LCD (1280 x 720 resolution) Ethernet: 10/100/1000 Mbps (RJ-45) network interface (PoE) Wi-Fi (dual band • support) Bluetooth 5.0 • Device interfaces 12V/3A DC power input • Proximity Sensor (see previous table for description) •...

  • Page 10: Fcc Warning

    Website: https://www.audiocodes.com/ ©2023 AudioCodes Ltd. All rights reserved. AudioCodes, AC, HD VoIP, HD VoIP Sounds Better, IPmedia, Mediant, MediaPack, What’s Inside Matters, OSN, SmartTAP, User Management Pack, VMAS, VoIPerfect, VoIPerfectHD, Your Gateway To VoIP, 3GX, VocaNom, AudioCodes One Voice, AudioCodes Meeting Insights and AudioCodes Room Experience are trademarks or registered trademarks of AudioCodes Limited.
