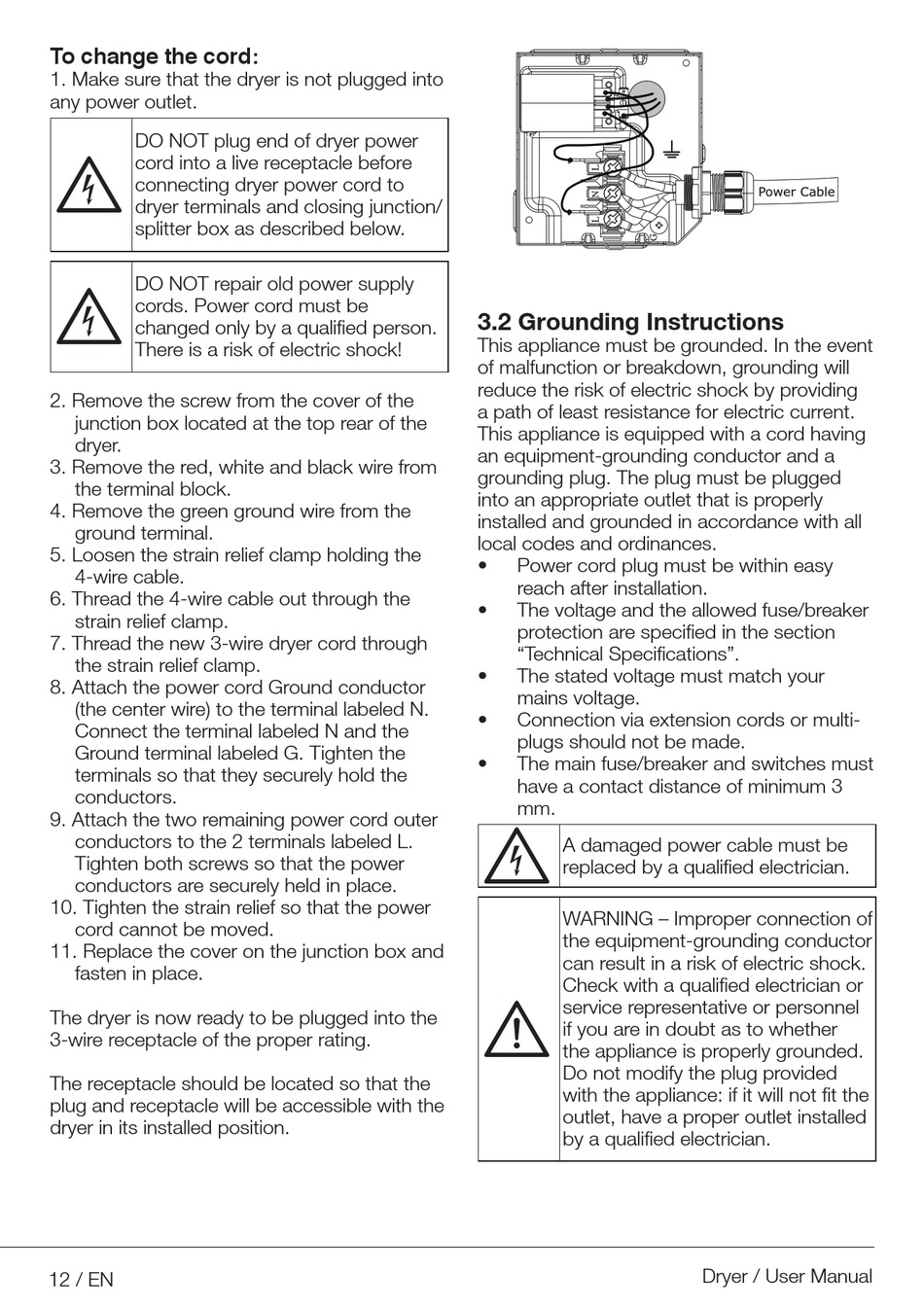

To change the cord:
1. Make sure that the dryer is not plugged into
any power outlet.
DO NOT plug end of dryer power
B
cord into a live receptacle before
connecting dryer power cord to
dryer terminals and closing junction/
splitter box as described below.
DO NOT repair old power supply
B
cords. Power cord must be
changed only by a qualified person.
There is a risk of electric shock!
2. Remove the screw from the cover of the
junction box located at the top rear of the
dryer.
3. Remove the red, white and black wire from
the terminal block.
4. Remove the green ground wire from the
ground terminal.
5. Loosen the strain relief clamp holding the
4-wire cable.
6. Thread the 4-wire cable out through the
strain relief clamp.
7. Thread the new 3-wire dryer cord through
the strain relief clamp.
8. Attach the power cord Ground conductor
(the center wire) to the terminal labeled N.
Connect the terminal labeled N and the
Ground terminal labeled G. Tighten the
terminals so that they securely hold the
conductors.
9. Attach the two remaining power cord outer
conductors to the 2 terminals labeled L.
Tighten both screws so that the power
conductors are securely held in place.
10. Tighten the strain relief so that the power
cord cannot be moved.
11. Replace the cover on the junction box and
fasten in place.
The dryer is now ready to be plugged into the
3-wire receptacle of the proper rating.
The receptacle should be located so that the
plug and receptacle will be accessible with the
dryer in its installed position.
12 / EN

3.2 Grounding Instructions

This appliance must be grounded. In the event
of malfunction or breakdown, grounding will
reduce the risk of electric shock by providing
a path of least resistance for electric current.
This appliance is equipped with a cord having
an equipment-grounding conductor and a
grounding plug. The plug must be plugged
into an appropriate outlet that is properly
installed and grounded in accordance with all
local codes and ordinances.
• Power cord plug must be within easy
reach after installation.
• The voltage and the allowed fuse/breaker
protection are specified in the section
"Technical Specifications".
• The stated voltage must match your
mains voltage.
• Connection via extension cords or multi-
plugs should not be made.
• The main fuse/breaker and switches must
have a contact distance of minimum 3
mm.
B
A damaged power cable must be
replaced by a qualified electrician.
WARNING – Improper connection of
the equipment-grounding conductor
can result in a risk of electric shock.
Check with a qualified electrician or
A
service representative or personnel
if you are in doubt as to whether
the appliance is properly grounded.
Do not modify the plug provided
with the appliance: if it will not fit the
outlet, have a proper outlet installed
by a qualified electrician.
Power Cable
