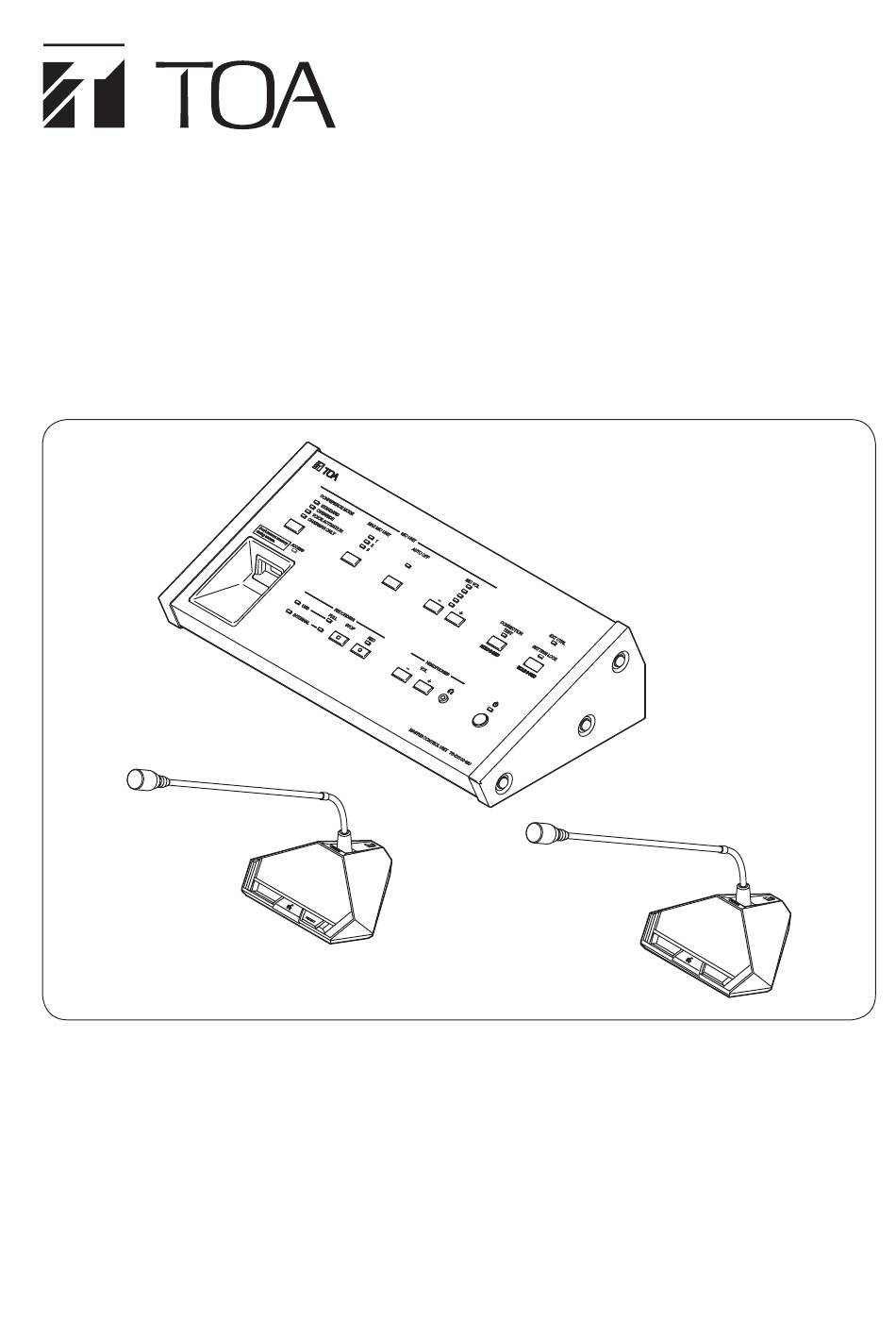

- Page 1 INSTRUCTION MANUAL DIGITAL CONFERENCE SYSTEM TS-D1100 SERIES Master control unit Chairman unit Delegate unit Thank you for purchasing TOA’s Digital Conference System. Please carefully follow the instructions in this manual to ensure long, trouble-free use of your equipment.
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. SAFETY PRECAUTIONS ................4 2. GENERAL DESCRIPTION ................6 3. FEATURES ......................6 4. AVAILABLE INSTRUCTION MANUALS ..........6 5. NOMENCLATURE AND FUNCTIONS ..........7 5.1. TS-D1100-MU Master Control Unit ............... 7 5.2. TS-D1000-SU Sub Control Unit ................ 11 5.3. - Page 3 13. FEEDBACK SUPPRESSION MEASURES ........37 13.1. Internal FBS Function ..................37 13.2. Using an External Processor ................37 14. IF A FAILURE IS DETECTED ............... 38 14.1. TS-D1100-MU Master Control Unit ..............38 14.2. TS-D1000-SU Sub Control Unit ............... 39 14.3.
-
Page 4: Safety Precautions
• Should the following irregularity be found during use, immediately switch off the power, disconnect the power supply plug from the AC outlet and contact your nearest TOA dealer. Make no further attempt to operate the unit in this condition as this may cause fire or electric shock. - Page 5 · When connecting the unit’s power cord to an AC outlet, use the AC outlet with current capacity allowable to the unit. · The rack-mounting screws supplied with the optional rack-mounting brackets* can be used for the TOA equipment rack only. Do not use them for other rack.
-
Page 6: General Description
2. GENERAL DESCRIPTION The TOA TS-D1100 Series is a conference system specially designed for easy set up, disassembly and storage. It can be used by merely connecting a number of conference units* to the TS-D1100-MU Master control unit. Up to 32 Conference units can be connected. This number can be increased to up to 246 units (up to 2 Chairman Units) by further connecting a maximum of 5 TS-D1000-SU Sub control units. -
Page 7: Nomenclature And Functions
5. NOMENCLATURE AND FUNCTIONS 5.1. TS-D1100-MU Master Control Unit [Top] 21 22 23 1. Power switch (For 24 V DC) 4. Conference mode indicators (Green) Press this switch to turn the Power ON. Press the The indicator corresponding to the selected by switch again to switch the power OFF. - Page 8 7. Mic auto-off setting key 17. Access indicator (Green) Delegate unit microphones can be set to Remains continuously lit until a compatible USB automatically disable approximately 30 seconds memory device is inserted into the USB memory after speaking ends if the user forgets to turn it device port (16).
- Page 9 [Rear] (The figure which took off 1:POWER SAVE 2:ID RESET Cover the cover) 27. Cable clamp switch enables the Power saving function, and Route the power cable through this clamp to turning it OFF disables the function. prevent the AC adapter plug from accidentally being disconnected.
- Page 10 a network and flashes during data transmission/ [When connected to an external processor] reception. When an external processor is connected to these SEND and RETURN terminals, the internal FBS circuit is switched OFF. 34. USB port Use the supplied USB cable to connect a PC to [When not connected to an external processor] this port.
-
Page 11: Ts-D1000-Su Sub Control Unit
5.2. TS-D1000-SU Sub Control Unit [Front] [Rear] 1. Power indicator (White) 4. DC inlet Lights when power is switched ON. This indicator interlocks with the Master control Insert the power plug from the unit’s supplied AC unit’s power switch operation when the Master adapter into this inlet. -
Page 12: Ts-D1000-Cu Chairman Unit
Manual (Browser Settings), which Remains lit while the microphone is in use (during downloaded from the TOA DATA Library (https:// speech). www.toa-products.com/international/). 3. Talk key When this key is pressed, both the Speech indicator (2) and the Microphone in-use indicator (7) light, and the microphone turns on. - Page 13 [Bottom] (Cover) (The figure which took off the cover) 8. Connection terminal cover 9. Conference unit connection terminals Detach this cover when connecting Conference RJ45 x 2 units to the Conference unit connection terminals Connect these terminals to the Conference (9).
-
Page 14: Ts-D1000-Du Delegate Unit
* For details, please refer to the separate Instruction Manual (Browser Settings), which can be downloaded 2. Speech indicator (Red) from the TOA DATA Library (https://www.toa- Remains lit while the microphone is in use (during products.com/international/). speech). 3. Talk key... - Page 15 [Bottom] (Cover) (The figure which took off the cover) 7. Connection terminal cover 8. Conference unit connection terminals Detach this cover when connecting Conference RJ45 x 2 units to the Conference unit connection terminals Connect these terminals to the Conference (8).
-
Page 16: Conference System Operation
• Speaker volume can also be muted in the browser settings. For details, please refer to the separate Instruction Manual (Browser Settings), which can be downloaded from the TOA DATA Library (https://www.toa-products.com/international/). Step 2. Speak. Step 3. After speaking is finished, press the Talk key again. -
Page 17: Initiating Priority Speech (Ts-D1000-Cu Chairman Unit Only)
Priority speech is terminated. In such cases, first press the Talk key again to cause both the Speech and the microphone’s In-use indicators to light, then begin speaking. * Can be downloaded from the TOA DATA Library (https://www.toa-products.com/international/). - Page 18 Priority speech is terminated. In such cases, first press the Talk key again to cause both the Speech and the microphone’s In-use indicators to light, then begin speaking. * Can be downloaded from the TOA DATA Library (https://www.toa-products.com/international/).
-
Page 19: Using The Recording Function
7. USING THE RECORDING FUNCTION The TS-D1100-MU Master control unit is equipped with a recording function, making it possible to create sound source files by recording conference dialog and the like to a commercially available USB memory device. The TS-D1100-MU is also equipped with internal memory for recording operations, and allows recording even when abnormalities arise with the USB memory device. -
Page 20: Sound Source File Specifications And Filenames
The recording start time included in the sound source filename corresponds to the Master control unit’s internal clock. The internal clock can be set via network using a PC browser. For details, please refer to the separate Instruction Manual (Browser Settings), which can be downloaded from the TOA DATA Library (https://www.toa-products.com/international/). -
Page 21: Recording To A Usb Memory Device
7.4. Recording to a USB Memory Device A commercially available USB memory device (flash drive/thumb drive) is required to make USB memory recordings using the Master control unit. Prepare a USB memory device that meets all the conditions shown in the section, "Usable USB memory devices"... -
Page 22: Recording To The Internal Memory
7.4.2. Moving a sound source file from the USB memory device Using a PC, copy the sound source file to the PC’s hard drive. Refer to the instruction manual enclosed with the USB memory device or the PC for the correct copy procedure. Important When disconnecting and removing the USB memory device from the PC, be sure to perform "Safely remove Hardware"... -
Page 23: System Examples
Windows is the registered trademark of Microsoft Corporation in the United States and other countries. For more information regarding network connections and how to access or delete sound source files, please refer to the separate Instruction Manual (Browser Settings), which can be downloaded from the TOA DATA Library (https://www.toa-products.com/international/). -
Page 24: Expanded System Example - Connected Unit Expansion
8.2. Expanded System Example – Connected Unit Expansion • Up to 246 Conference units can be connected to the basic system with the addition of Sub control units. • Up to 5 Sub control units can be connected to the Master control unit. •... -
Page 25: Expanded System Example - Distance Extension
8.3. Expanded System Example – Distance Extension Use the TS-D1000-EX Extension unit when wishing to extend the distance from the Master control unit or Sub control unit to the Conference units in the basic system or in systems in which the number of connected units has been increased. -
Page 26: Connections
9. CONNECTIONS [TS-D1100-MU] Signal ground terminal To AC mains (11) AC adapter To microphone (10) Video conference system To Conference unit External processor (4) To Sub control Unit Recording (5) To network device Amplifier Speaker 9.1. Power Supply Connection (1) AC adapter connection Use the supplied AC adapter. -
Page 27: Conference Unit And Sub Control Unit Connections
9.3. Conference Unit and Sub Control Unit Connections (3) Conference unit connection Connect Conference units to the TS-D1100-MU Master control unit using a CAT5e STP LAN cable fitted with RJ45 connectors at both ends (refer to "SYSTEM EXAMPLES" on p. 23). (4) Sub control unit connection Connect Sub control units to the TS-D1100-MU using a CAT5e STP LAN cable fitted with the RJ45 connector at both ends (refer to "Expanded System Example –... -
Page 28: Installation
(supplied with the MB-TS920) Rack mounting screw 5 x 12 (supplied with the MB-TS920) The rack mounting screws 5 x 12 supplied with the MB-TS920 can CAUTION be used for the TOA equipment rack only. Do not use them for other racks. - Page 29 10.1.2. TS-D1000-SU [Rack-mounting a single unit] Use the MB-15B-BK Bracket kit. Component parts of MB-15B-BK Tapping screw 3 x 8 * Tapping screw 3 x 14 * TS-D1000-SU Blank bracket * Tapping screw 3 x 14 * Rack mounting bracket * Fiber washer (for M5) * Rack mounting screw 5 x 12 * [Rack-mounting two units]...
-
Page 30: Microphone Connection
10.2. Microphone Connection Attach the TS-D1000-M1 Standard microphone or TS-D1000-M2 Long microphone to the Conference unit as shown below. TS-D1000-M1 Standard microphone TS-D1000-M2 In-use indicator Long microphone TS-D1000-CU Chairman unit TS-D1000-DU Delegate unit 10.3. Connection Test It is possible to confirm whether all Conference units are correctly connected following system setup. Step 1. -
Page 31: Settings
11. SETTINGS The following settings can be performed with the Setting key on the TS-D1100-MU unit’s top panel. [Setting Items] • Conference mode (see below) • Max. open mic No. (see p. 32) • Mic auto-off (see p. 33) • Conference sound volume (see p. 34) Notes •... -
Page 32: Max. Open Mic No. Setting
An arbitrary number of units (1 – 8) can be set using a browser. When set to numbers 3 though 7, all Max. open mic No. indicators light. For details, please refer to the separate Instruction Manual (Browser Settings), which can be downloaded from the TOA DATA Library (https://www.toa-products.com/international/). Notes •... -
Page 33: Mic Auto-Off Setting
11.3. Mic Auto-Off Setting Even if a speaker forgets to turn off the microphone after speaking, if more than 30 seconds of silence is detected, this function automatically assumes that speaking has ended and turns off the microphone. Mic auto-off indicator Mic auto-off setting key Notes •... -
Page 34: Conference Unit Monitor Volume Setting
• The monitor speaker can be muted using a browser if desired because of feedback or other reasons. For details, please refer to the separate Instruction Manual (Browser Settings), which can be downloaded from the TOA DATA Library (https://www.toa-products.com/international/). -
Page 35: Setting Lock
11.5. Setting Lock Mistaken operation can be minimized by disabling all setting-related key operations. Performing the Setting lock function causes all setting-related keys shown below to be locked, making their operations impossible. Keys to be locked Setting lock indicator Setting lock key 11.5.1. -
Page 36: Browser Setting
Regarding the method used to perform settings using the browser, please refer to the separate Instruction Manual (Browser Settings), which can be downloaded from the TOA DATA Library (https://www.toa-products. com/international/). On this site, enter the product number to search for the Instruction Manual (Browser... -
Page 37: Feedback Suppression Measures
13. FEEDBACK SUPPRESSION MEASURES 13.1. Internal FBS Function The TS-D1100-MU features a digital feedback suppressor (FBS) function as a means of minimizing feedback. When feedback cannot be suppressed by the internal FBS function, try to minimize it by using an optional external processor or the like. -
Page 38: If A Failure Is Detected
TS-D1100-MU selected in the Web is selected as the microphone in the destination when conference application’s Audio Device Audio device settings. the Web conference settings? application is in use. * Can be downloaded from the TOA DATA Library (https://www.toa-products.com/international/). -
Page 39: Ts-D1000-Su Sub Control Unit
14.2. TS-D1000-SU Sub Control Unit Symptom Cause and Points to Check Remedy Power does not turn Is the power cord or DC plug connected? Ensure that the power cord and DC plug, which are supplied with the Sub control unit, are correctly connected. Is the Sub control unit correctly Ensure that the Master control and Sub connected to the Master control unit? -
Page 40: Open Source Software
Install the units in locations with a low noise level or disable the Mic auto-off function. (See p. 33.) * Can be downloaded from the TOA DATA Library (https://www.toa-products.com/international/). 15. OPEN SOURCE SOFTWARE The TS-D1100-MU uses software based on open source software license(s). -
Page 41: Specifications
16. SPECIFICATIONS 16.1. TS-D1100-MU Master Control Unit Power Source 100 to 240 V AC, 50/60 Hz (use of the supplied AC adapter) Power Consumption 60 W or less Audio Transmission System Time division multiplexing (TDM), 10 channels 16-bit, PCM, 32 kHz sampling frequency Frequency Response 100 Hz –... -
Page 42: Ts-D1000-Su Sub Control Unit
Operating Humidity 90%RH or less (no condensation) Finish Panel: Surface-treated steel plate, black, 30% glossy, paint Dimensions 361 (w) x 100.4 (h) x 184.2 (d) mm (14.21" x 3.95" x 7.25") Weight 2.2 kg (4.85 lb) 0 dB = 1 V Cable length can be extended to a maximum of 100 m (323.08 ft) with the use of the Extension unit. -
Page 43: Ts-D1000-Ex Extension Unit
16.3. TS-D1000-EX Extension Unit Power Source 100 to 240 V AC, 50/60 Hz (use of the supplied AC adapter) Power Consumption 25 W or less Connection Terminal RJ45 connector ×2 LED Indicator Power indicator Operating Temperature 0 to 40 ºC (32 to 104 ºF) Operating Humidity 90%RH or less (no condensation) Finish... -
Page 44: Ts-D1000-Du Delegate Unit
Chairman unit: TS-D1000-CU, Delegate unit: TS-D1000-DU Note: The design and specifications are subject to change without notice for improvement. Traceability Information for Europe Manufacturer: Authorized representative: TOA Corporation TOA Electronics Europe GmbH 7-2-1, Minatojima-Nakamachi, Chuo-ku, Kobe, Hyogo, Suederstrasse 282, 20537 Hamburg, Japan Germany URL: https://www.toa.jp/...
