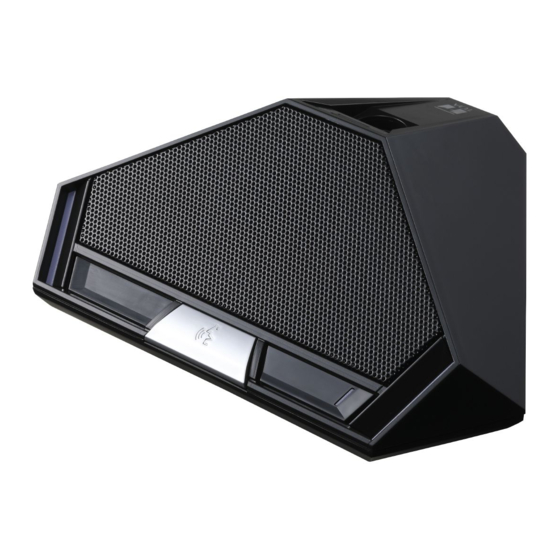

CHAIRMAN UNIT
DELEGATE UNIT
Thank you for purchasing TOA's Chairman unit/Delegate unit.
Please carefully follow the instructions in this manual to ensure long, trouble-free use of your equipment.
1. SAFETY PRECAUTIONS
• Before installation or use, be sure to carefully read all the instructions in this section for
correct and safe operation.
• Be sure to follow all the precautionary instructions in this section, which contain important
warnings and/or cautions regarding safety.
• After reading, keep this manual handy for future reference.
WARNING
CAUTION
WARNING
• Do not expose the unit to rain or an
environment where it may be splashed by
water or other liquids, as doing so may
result in fire or electric shock.
• Avoid installing or mounting the unit in
unstable locations, such as on a rickety
table or a slanted surface. Doing so may
result in the unit falling down and causing
personal injury and/or property damage.
• Since the unit is designed for indoor use, do
not install it outdoors. If installed outdoors, the
aging of parts causes the unit to fall off, resulting
in personal injury. Also, when it gets wet with
rain, there is a danger of electric shock.
Indicates a potentially hazardous situation which, if mishandled,
could result in death or serious personal injury.
Indicates a potentially hazardous situation which, if mishandled, could
result in moderate or minor personal injury, and/or property damage.
INSTRUCTION MANUAL
• Should the following irregularity be found
during use, immediately switch off the
power, disconnect the power supply plug
from the AC outlet and contact your nearest
TOA dealer. Make no further attempt to
operate the unit in this condition as this
may cause fire or electric shock.
· If you detect smoke or a strange smell
coming from the unit
· If water or any metallic object gets into the
unit
· If the unit falls, or the unit case breaks
· If the power supply cord is damaged
(exposure of the core, disconnection, etc.)
· If it is malfunctioning (no tone sounds)
TS-D1000-CU
TS-D1000-DU
Advertisement
Related Manuals for Toa CHAIRMAN UNIT
Summary of Contents for Toa CHAIRMAN UNIT
- Page 1 TS-D1000-CU DELEGATE UNIT TS-D1000-DU Thank you for purchasing TOA’s Chairman unit/Delegate unit. Please carefully follow the instructions in this manual to ensure long, trouble-free use of your equipment. 1. SAFETY PRECAUTIONS • Before installation or use, be sure to carefully read all the instructions in this section for correct and safe operation.
- Page 2 3. FEATURES • The TS-D1000-CU Chairman unit has Priority speech function. When a speech of other Delegate unit is in progress, the Chairman unit can terminate and supersede the Delegate unit. • The optional dedicated microphones employ the XLR-type connectors, and are designed to be...
- Page 3 4. SPECIFICATIONS 4.1. Chairman Unit TS-D1000-CU Power Source 24 V DC ( supplied from the optional TS-D1000-MU Master control unit, the optional TS-D1000-SU Sub control units or the optional TS-D1000- EX Extension units.) Power Consumption 1.5 W or less Input...
- Page 4 The design and specifications are subject to change without notice for improvement. • Optional products Standard microphone: TS-D1000-M1 Long microphone: TS-D1000-M2 Traceability Information for Europe Manufacturer: Authorized representative: TOA Corporation TOA Electronics Europe GmbH 7-2-1, Minatojima-Nakamachi, Chuo-ku, Kobe, Hyogo, Suederstrasse 282, 20537 Hamburg, Japan Germany URL: https://www.toa.jp/ 133-07-00152-00...
